Hardware Configuration
RUBY-D716VG2AR User’s Manual 2-3

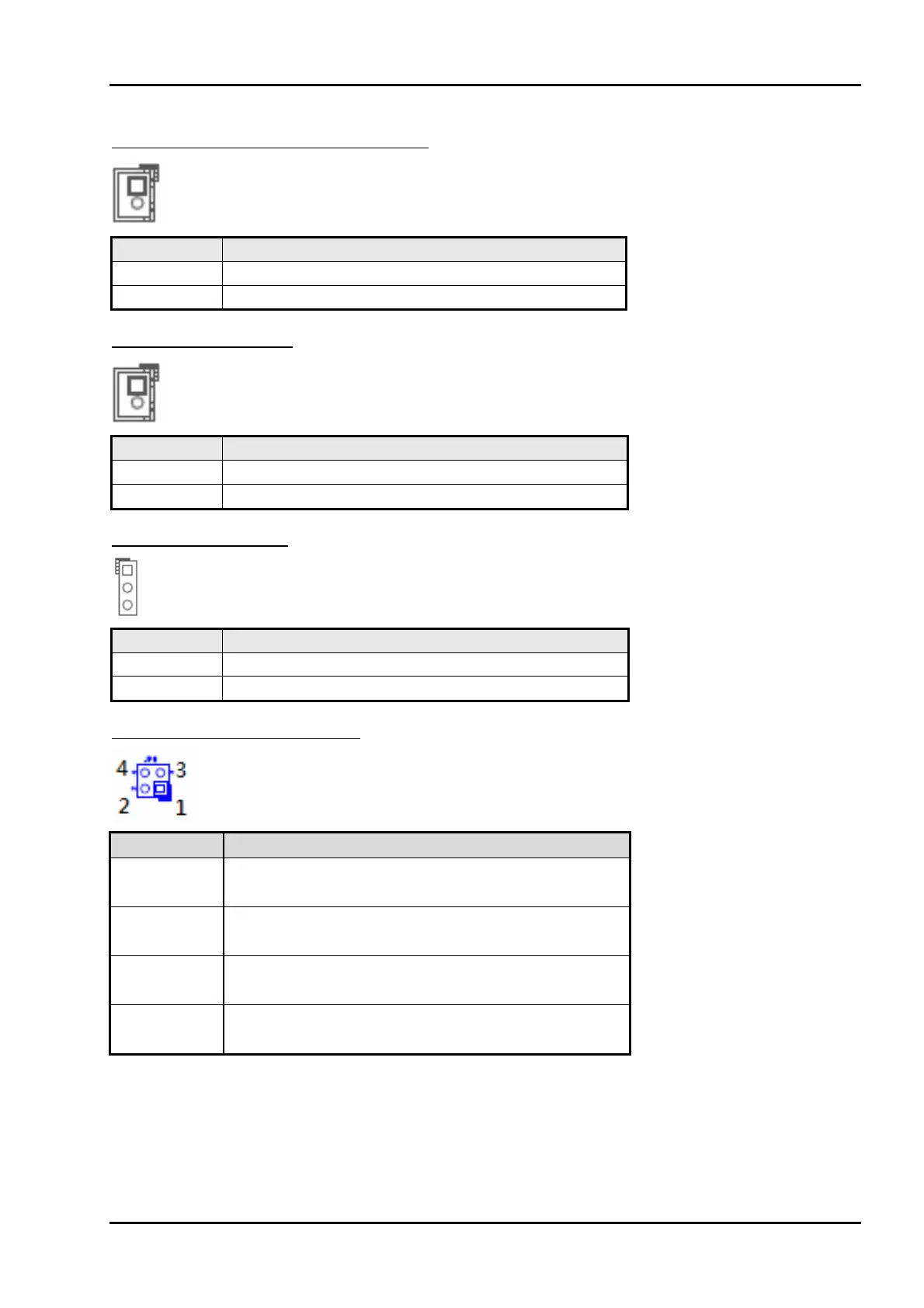

JP4: Watch Dog Time Disable/Enable
PIN No. Signal Description
1-2 Short Enable Ì
1-2 Open Disable
JP5: ATX & AT mode
PIN No. Signal Description
1-2 Short AT mode
1-2 Open ATX mode Ì
JP6: GPIO Out Level
PIN No. Signal Description
1-2, Short 5V
2-3, Short 3.3V
JP8: PCI Express* Bifurcation
PIN No. Signal Description
1-2, Short
3-4, Short
1x8 , 2x4
1-2, Open
3-4, Short
reserved
1-2, Short
3-4, Open
2x8
1-2, Open
3-4, Open
1x16 Ì
