Hardware Configuration
RUBY-D716VG2AR User’s Manual 2-9

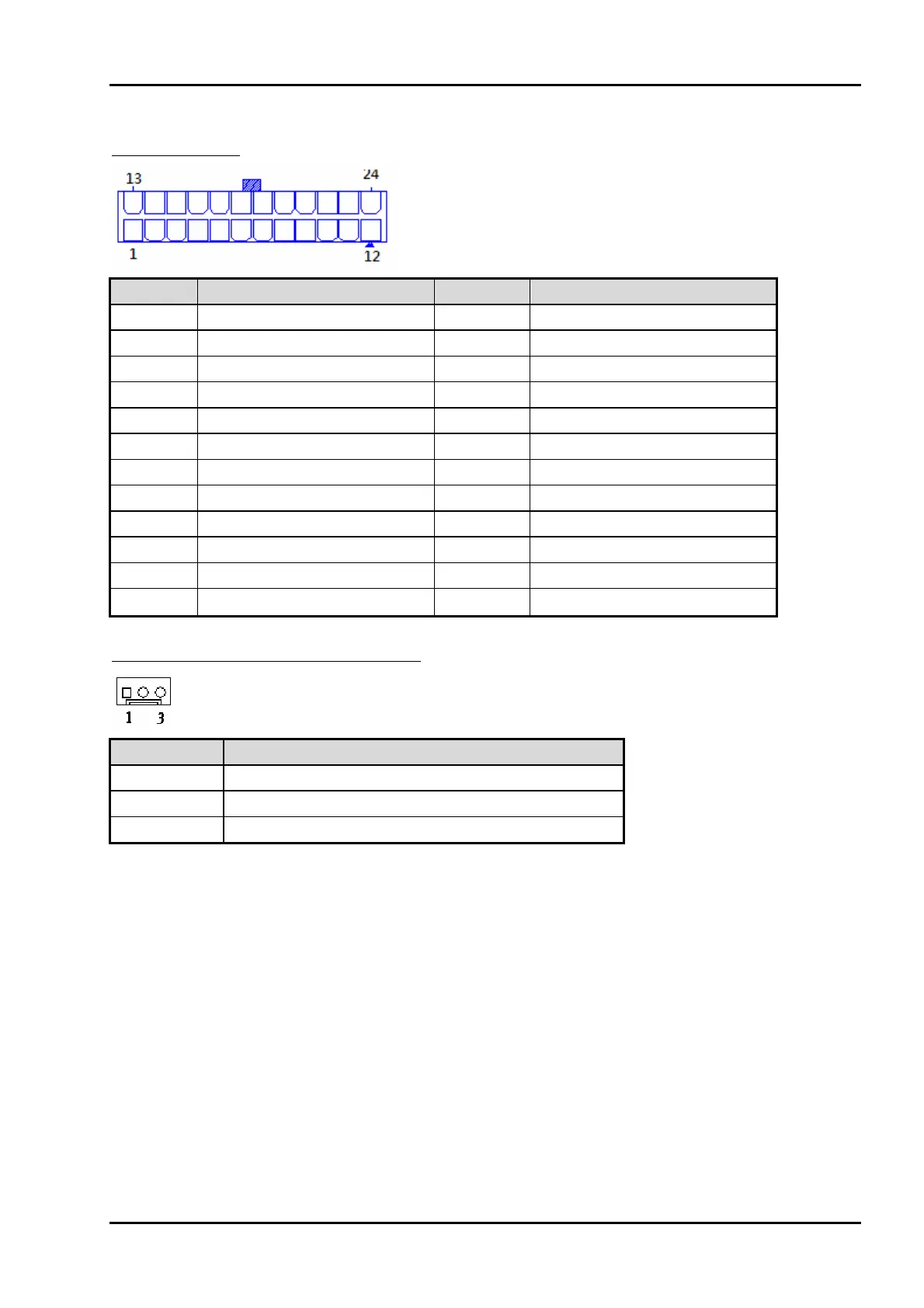

J35 ATX Power
PIN No. Signal Description PIN No. Signal Description
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS_ON#
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 ATX_PWROK 20 -5V
9 +5VSB 21 +5V
10 +12V1 22 +5V
11 +12V1 23 +5V
12 +3.3V 24 Ground
J36: SYSTEM FAN Power Connector
PIN No. Signal Description
1 Ground
2 Fan speed control
3 Fan on/off output
