Hardware Configuration
RUBY-D716VG2AR User’s Manual 2-8
J29/J30/J33/J34/J37: SATA Connector(6Gb/s)
PIN No. Signal Description
1 GND1
2 TX+
3 TX-
4 GND2
5 RX-
6 RX+
7 GND3

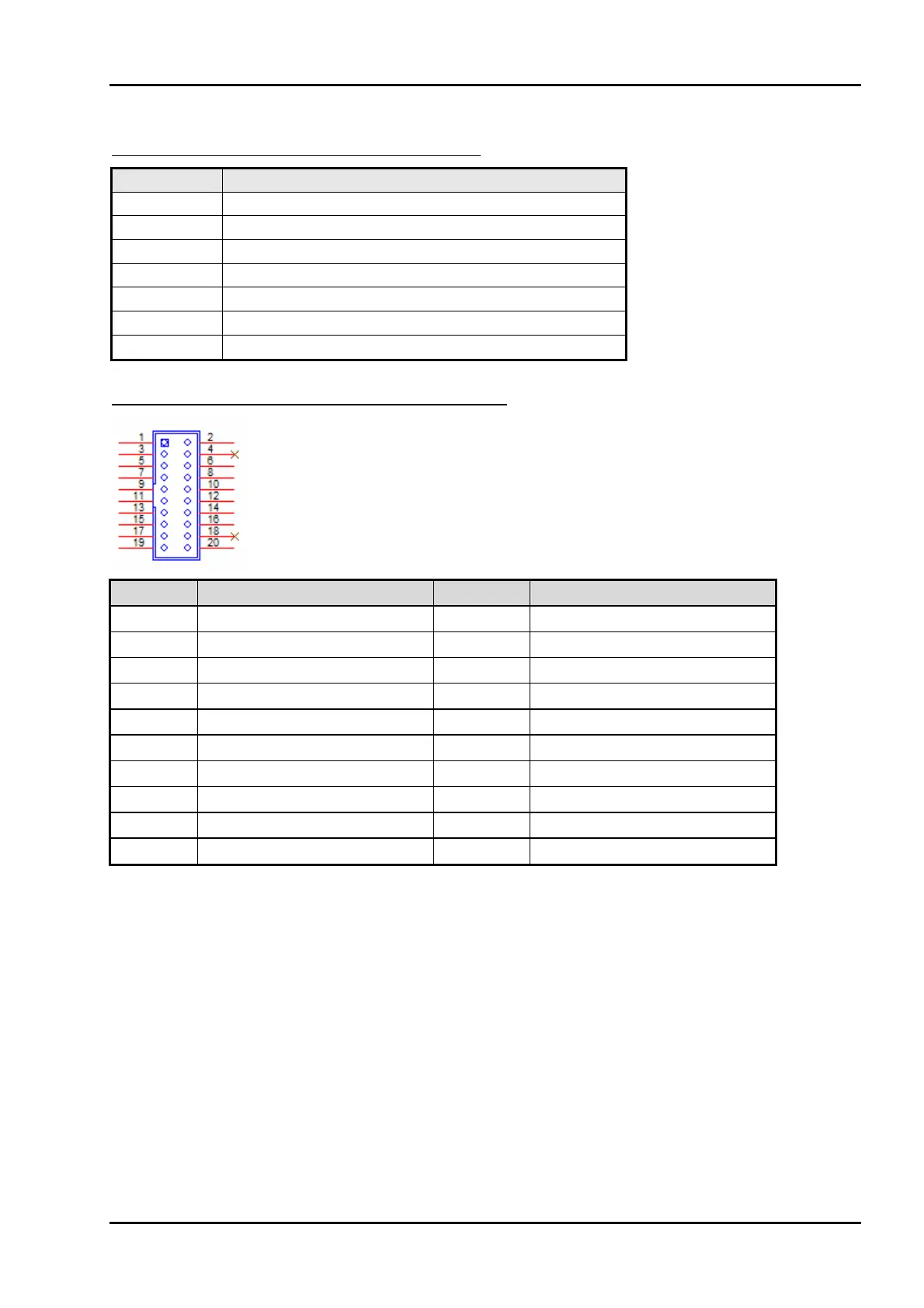

J31 TPM(Trusted Platform Module) Connector
PIN No. Signal Description PIN No. Signal Description
1 PCLK_TPM 2 Ground
3 LFRAME# 4 N/C
5 PLT_RST_N 6 LAD2
7 LAD3 8 LAD1
9 VCC3 10 Ground
11 LAD0 12 SMB_DATA_MAIN
13 SMB_CLK_MAIN 14 SERIRQ
15 3VSB 16 N/C
17 LPCPD# 18 LDRQ#1
19 Ground 20 Ground
