Portwell RUBY-D718VG2AR - Page 19

RUBY-D718VG2AR
Copyright © Portwell 2016 RUBY-D718VG2AR
User's Guide
19

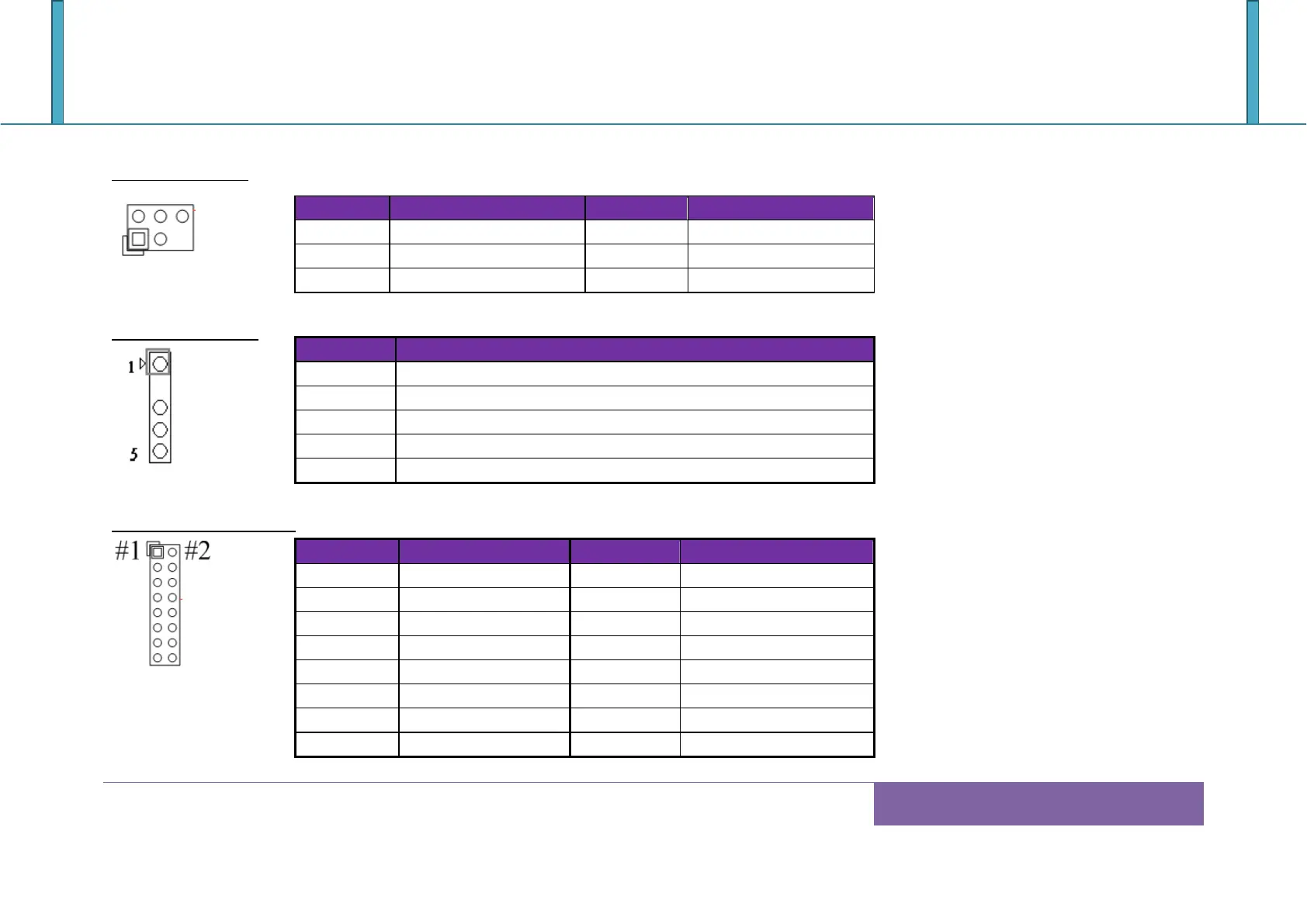

J4: SPDIF Pin HDR
J8: SMBUS Pin HDR
J12: Front Panel Pin HDR
PIN No.
Signal Description
PIN No.
Signal Description
1
GND
2
GND
3
SPDIF_IN
4
SPDIF_OUT
Key
6
+5V
PIN No.
Signal Description
1
SMB_CLK
Key
3
GND
4
SMB_DATA
5
+5V
PIN No.
Signal Description
PIN No.
Signal Description
1
PWR_LED (+)
2
Buzzer (+)
3
PWR_LED (-)
4
N/C
5
LAN1_ACT_LED (+)
6
N/C
7
LAN1_ACT_LED (-)
8
Buzzer (-)
9
LAN2_ACT_LED (-)
10
Power On (-)
11
LAN2_ACT_LED (+)
12
Power On (+)
13
HDD_LED (+)
14
Reset (+)
15
HDD_LED (-)
16
Reset (-)
