Positron GAM-8-MX - Figure 7: G.hn Ports Leds; Table 2: G.hn Ports LED Indicators

GAM Quick Installation Guide
Positron Access Solutions 11 Document 180-0211-001 R01
Each of the G.hn ports has two (2) status LEDs.

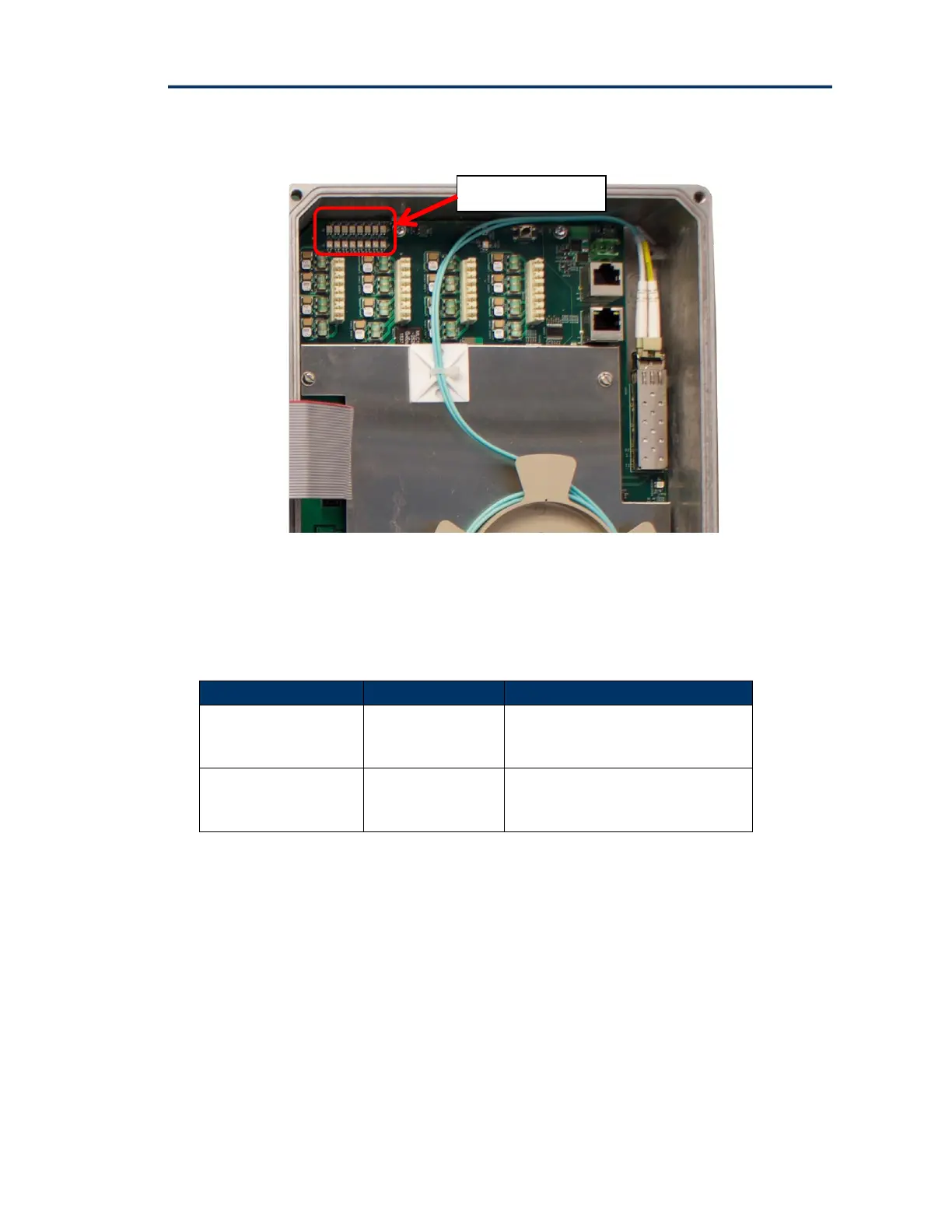

Figure 7: G.hn Ports LEDs
The top row of LEDs indicates the state of the G.hn link while the bottom row
indicates the presence of the Reverse Power Feed source (from a G1001-MR
device at the customer end).
LED
Condition
Function
G.hn ports
Off
Blinking
On
Disabled or Link Down
Bad or low speed G.hn link
Link is Up
G.hn port power
Off
Green
Always ON since the GAM-4-MX
and GAM-8-MX is locally
powered
Table 2: G.hn Ports LED indicators
G.hn Port LEDs
