Positron GAM-8-MX User Manual

GAM Quick Installation Guide
Positron Access Solutions 8 Document 180-0211-001 R01
1.2.3 G.hn Ports
The GAM-8-MX has 8 G.hn ports and the GAM-4-MX has 4 G.hn ports.
110 Punch-down blocks are used to connect the copper pairs to each of the G.hn
ports. You can connect either a single pair (SISO mode) or two (2) pairs (MIMO
mode) per port. The 110 Punch-down blocks are located at the top left portion
inside the GAM IP67 enclosure.
Note: fast and resettable lightning protection is pre-installed on the GAM
motherboard for each copper pair.

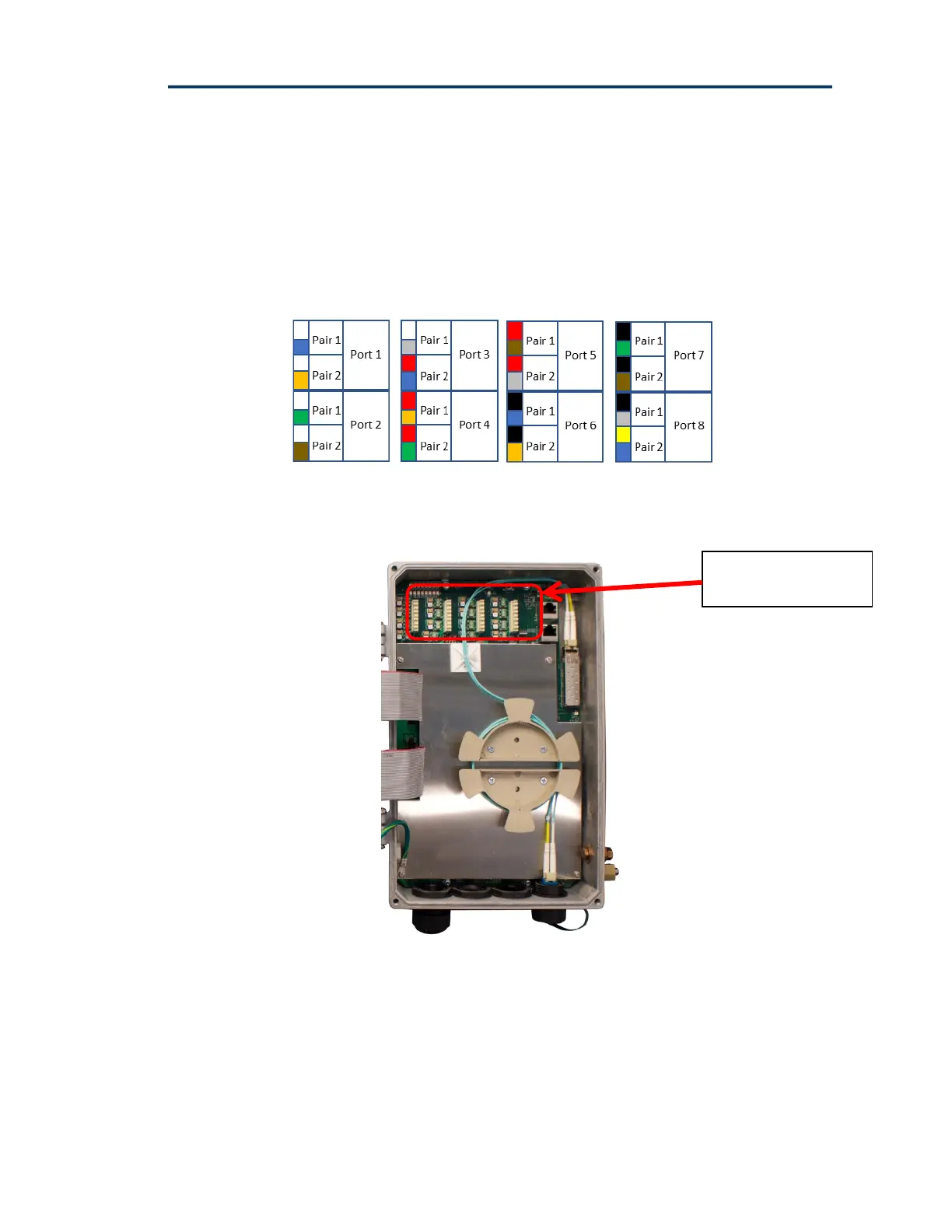

Figure 3: Inside view of GAM-8-MX with 110 Punch-down Block
1.2.4 Local management ports
The GAM devices have two (2) local management ports located near the top right
corner of the enclosure.
110 Punch-down
blocks for G.hn ports
