GAM Quick Installation Guide
Positron Access Solutions 9 Document 180-0211-001 R01

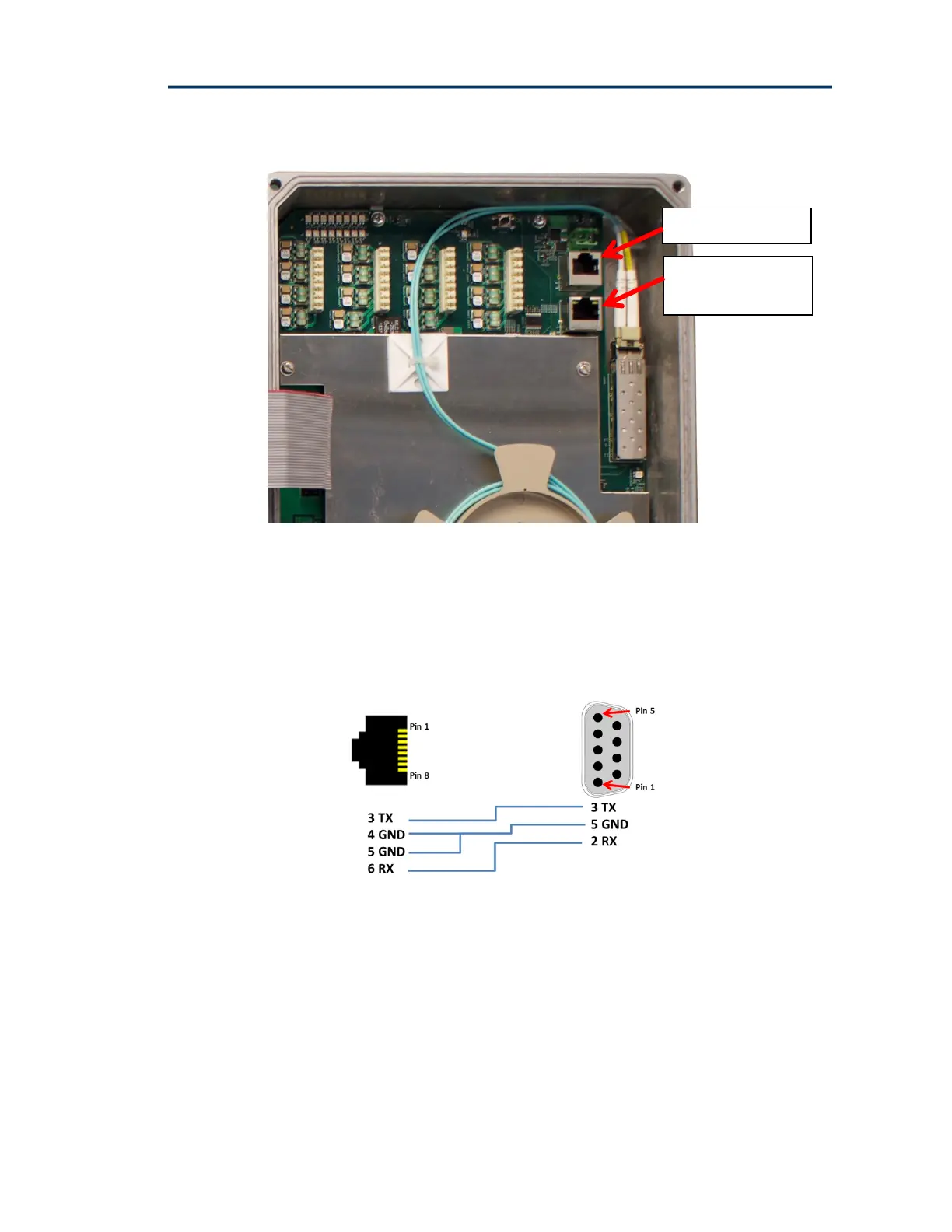

Figure 4: Local Management Ports are at the top right corner of the GAM circuitry
The CRAFT port is a standard serial (V.24, 115200, 8, N, 1)) port that provides
access to the command line interface of the GAM device.
The pinout of the RJ-45 serial port is compatible with the popular Cisco pinout as
per the following diagram:
Figure 5: GAM Serial Management Port pinout
The MGMT port is a 10/100/1000Base-T Ethernet port provides access to the WEB
GUI interface using a standard WEB browser or an SSH interface to the command
line interface of the GAM device.
