Adjusting the Position of Media Sensor
1. Lift the top cover.
2. Push the TPH release lever to release the Printhead Module.
3. Lift the Printhead Module to expose the media sensor cover (Figure
7-1).
4. Remove the media sensor cover and slide the media sensor to the
appropriate position (refer to Figure 7-3, Figure 7-4 and Figure 7-5).
5. Replace the media sensor cover.

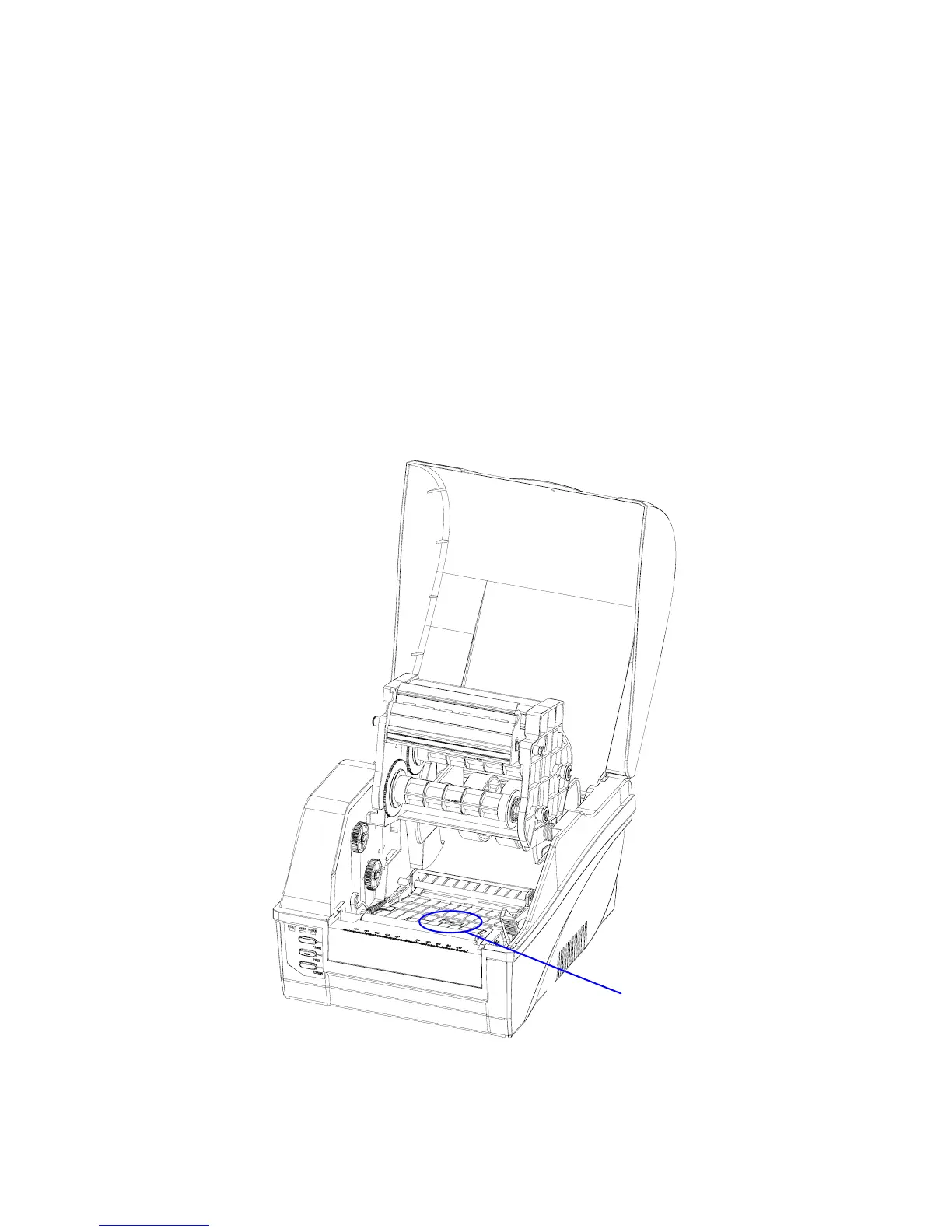

Figure 7-1
Media sensor cove
r
