Equipment Description
FlexTrol™ Class E2 Medium Voltage Controllers with
Eaton Contactor
!
CAUTION
Control Power may be present in the low
voltage compartment. The low voltage
compartment shall only be entered with
extreme care.

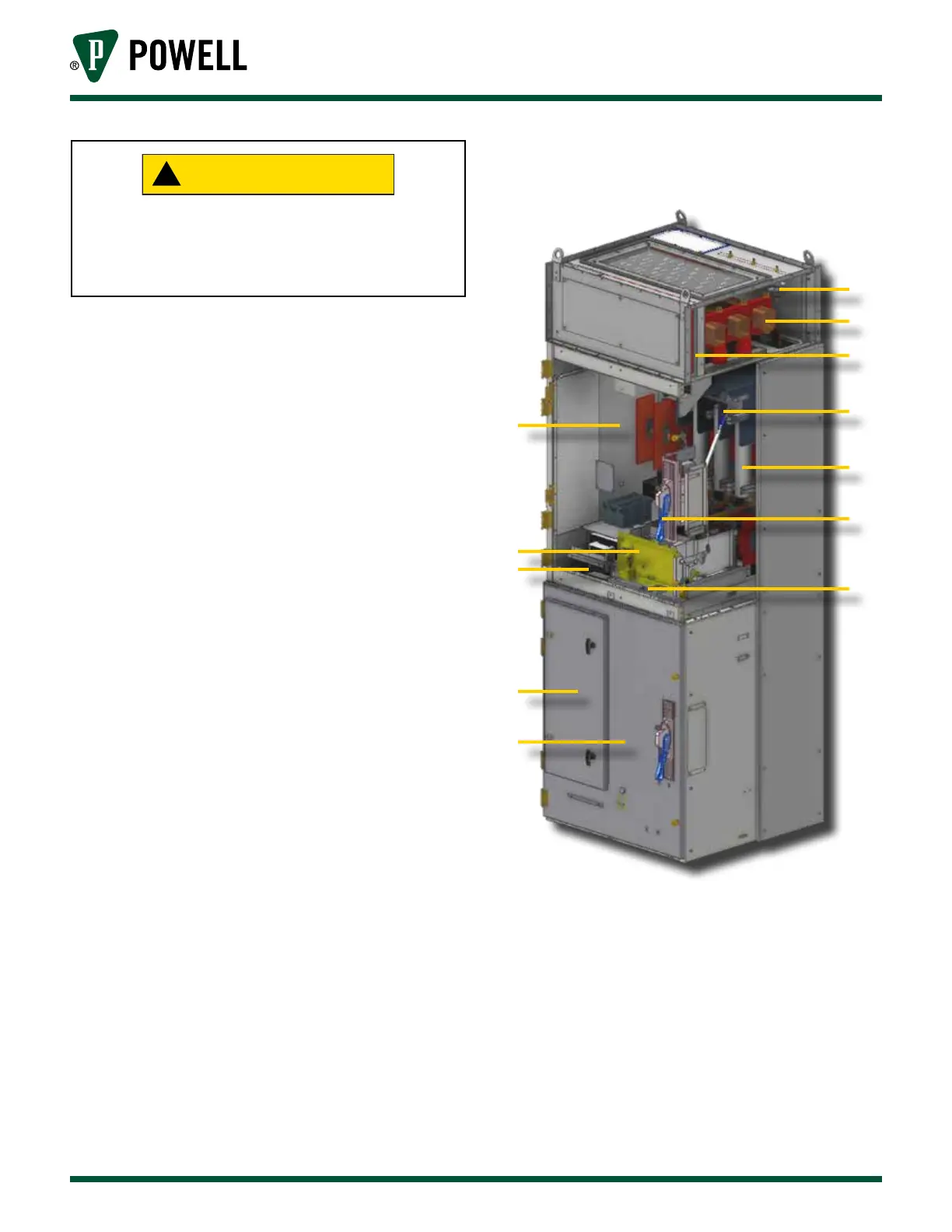

Figure 3 High and Low Voltage
Compartments
a
b
c
d
f
g
j
e
h
i
k
l
a. Surge Arrester
b. Main Bus
c. Wireway
d. Isolation Switch
e. High Voltage Compartment
f. Medium Voltage Power Fuse
g. Isolation Switch Handle
h. Vacuum Contactor
i. Control Power Transformer
j. Contactor Hold Down Bolt
k. Low Voltage Compartment
l. Medium Voltage Compartment
