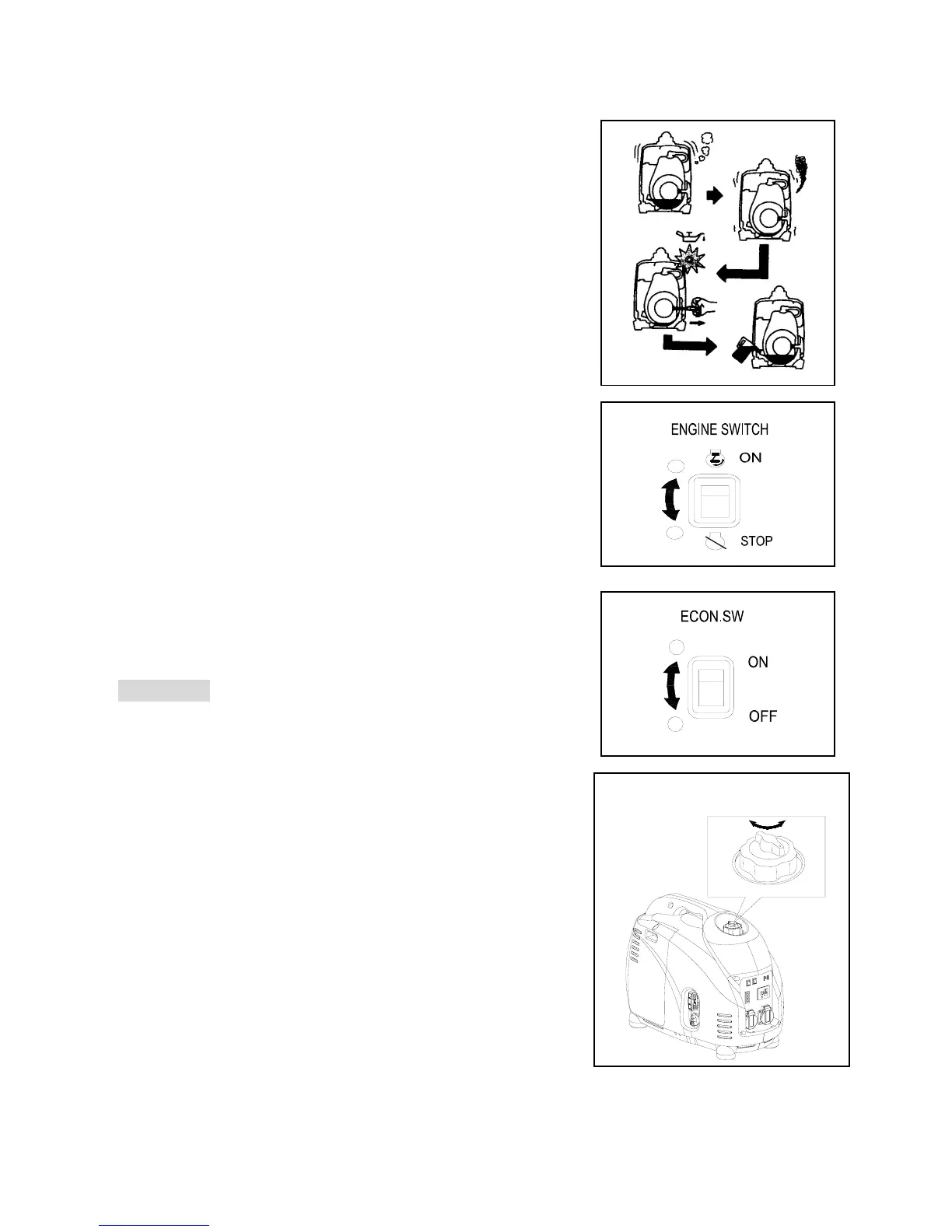

1）OIL WARNING SYSTEM
When the oil level falls below the lower level the engine will stop
automatically. Unless you refill with oil the engine will not start again.
2）ENGINE SWITCH
The engine switch controls the ignition system.
① “ON”(run)
When the ignition circuit is switched on the engine will start.
② “OFF”(stop)
When the ignition circuit is switched off the engine will not run.
3）ECONOMY CONTROL SWITCH
When the economy control switch is switched “ON”, the economy
control unit controls the engine speed according to the load. This may
result in better fuel efficiency as well as lower noise.
4）DC CIRCUIT PROTECTOR
The DC circuit protector turns off automatically when the load exceeds
the generator rated output.
CAUTION: ─────────────────────
z Reduce the load to within specified generator rated output if the DC
circuit protector turns off.
───────────────────────────
5）FUEL TANK CAP AIR VENT KNOB
The fuel tank cap is supplied with an air vent knob to stop fuel flow.
The air vent knob must be turned once clockwise from the closed
position. This will allow fuel to flow to the carburetor and the engine to
run.
When the engine is not in use, tighten the air vent knob
counterclockwise until it is finger-tight to stop fuel flow.
6）FUEL COCK
The fuel cock is used to supply fuel from the tank to the carburetor.
OPEN /CLOSED
