Accessing the Switchboard Meter’s PC Boards
Ensure the meter has been unpowered for at least 10 minutes prior to
disassembly. This ensures the meter capacitors contain no residual charge.
The disconnected meter retains all its configuration settings.
In each retrofit scenario, you must first remove the meter from its switchboard
casing to access the circuit boards.

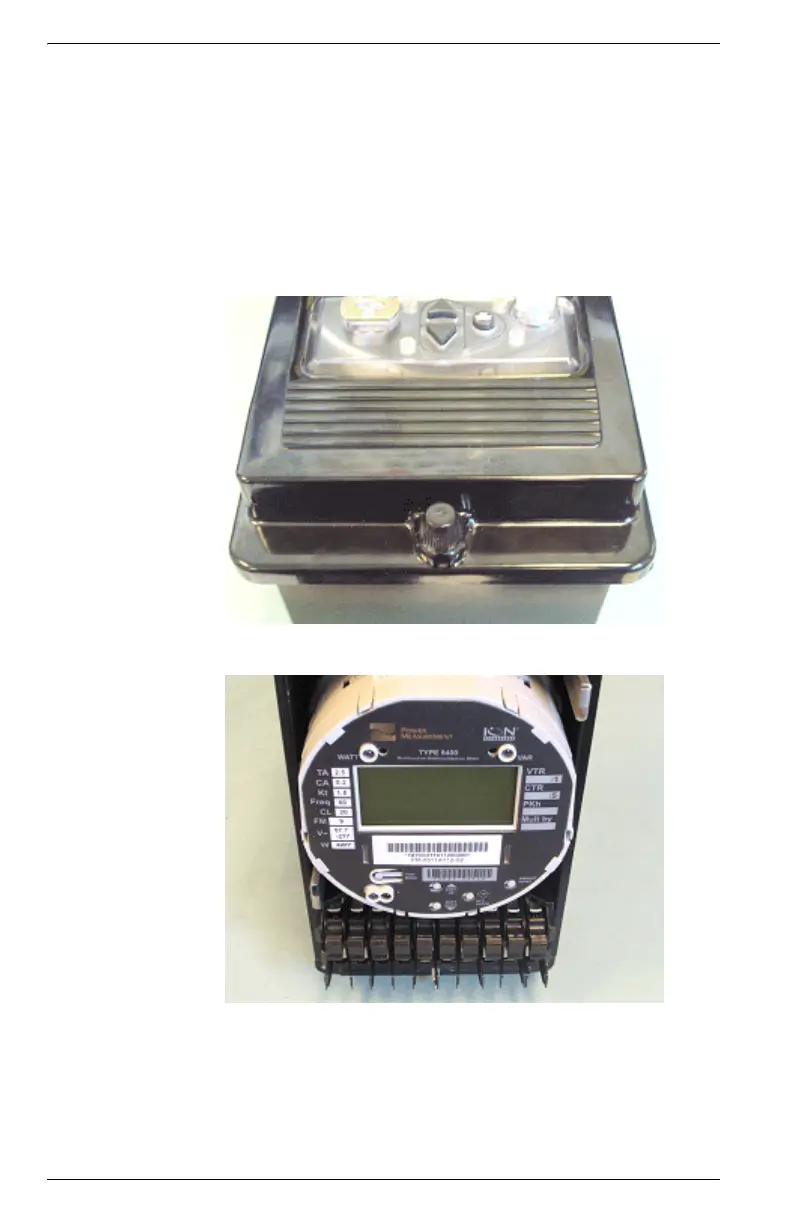

Remove the meter from its switchboard casing
1. Release the screw at the front bottom of the display cover and lift.
2. Expose the front of the meter.
