10 | MOVE ZR Installation & Owner’s Guide

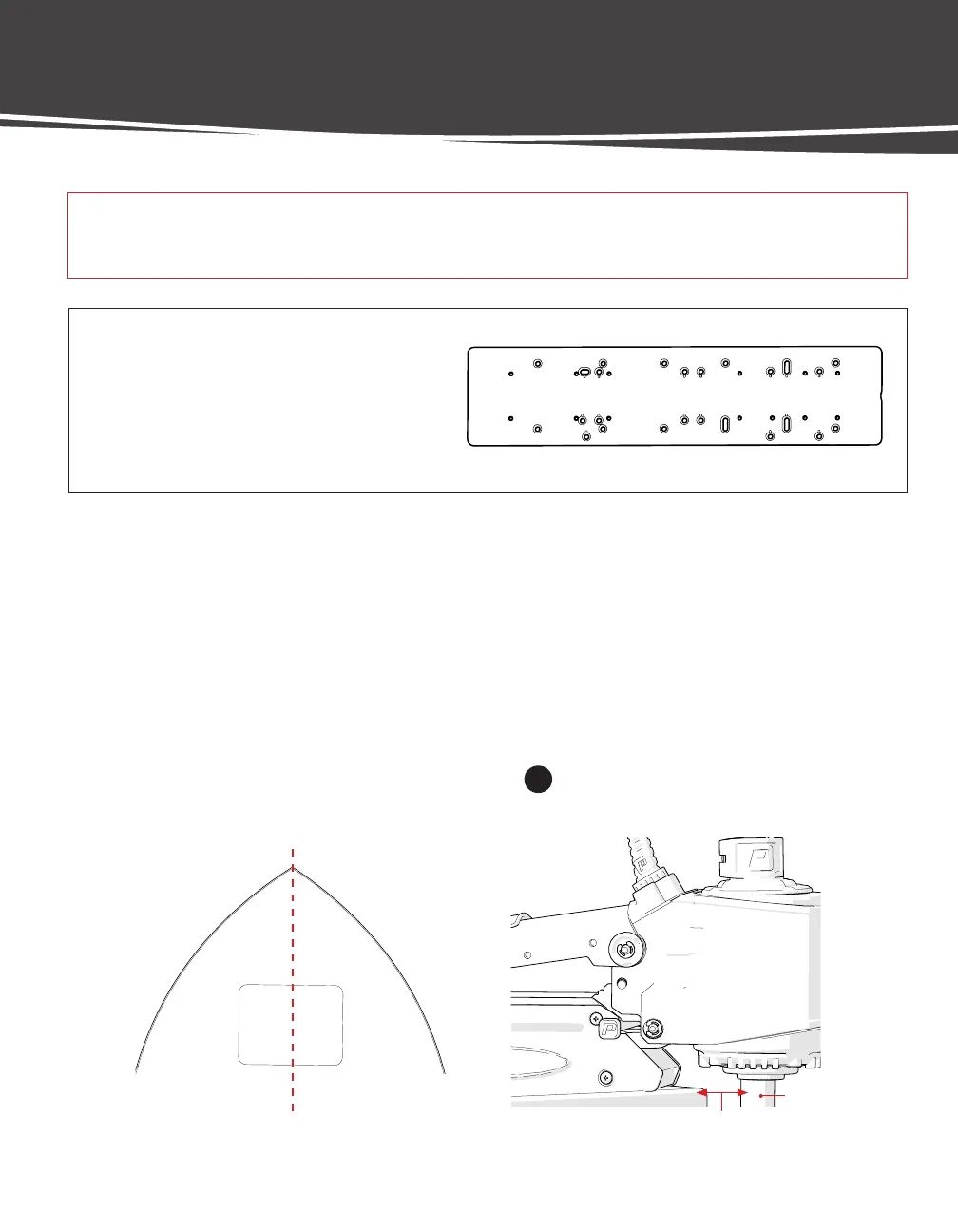

CHOOSING A MOUNTING LOCATION
IMPORTANT! These mounting instructions are deck mounting instructions. If you are mounting using our Universal
Mounting Plate, follow the instructions included with the Universal Mounting Plate.
Shaft Clearance
Shaft
Bow
1”
Centerline
To install the trolling motor directly to the boat deck read through the requirements below, then follow the instructions
contained in the "MOUNTING THE MOVE ZR" section of this manual (p. 11).
Use the following parameters to locate a suitable mounting location:
• When deployed, the shaft should be as close to the center-line of boat deck as possible.
• Ensure there are no obstructions or sensitive components on or under the boat deck where the mounting hardware will
be installed.
• When deployed, the ideal position of the shaft is 1” off the gunwale/rub rail of the boat.
• Ensure there are no obstructions blocking the motor from fully deploying and stowing.
• If mounting to a curved boat deck, ensure Rubber Washers
4
are used between the motor and deck.
Universal Mounting Plate
Your MOVE™ includes all necessary mounting
hardware for a deck mount. If mounting to a boat
with pre-existing holes, consider using our Universal
Mounting Plate, which fits most trolling motor drill
patterns and allows installation without drilling more
holes into your boat.
