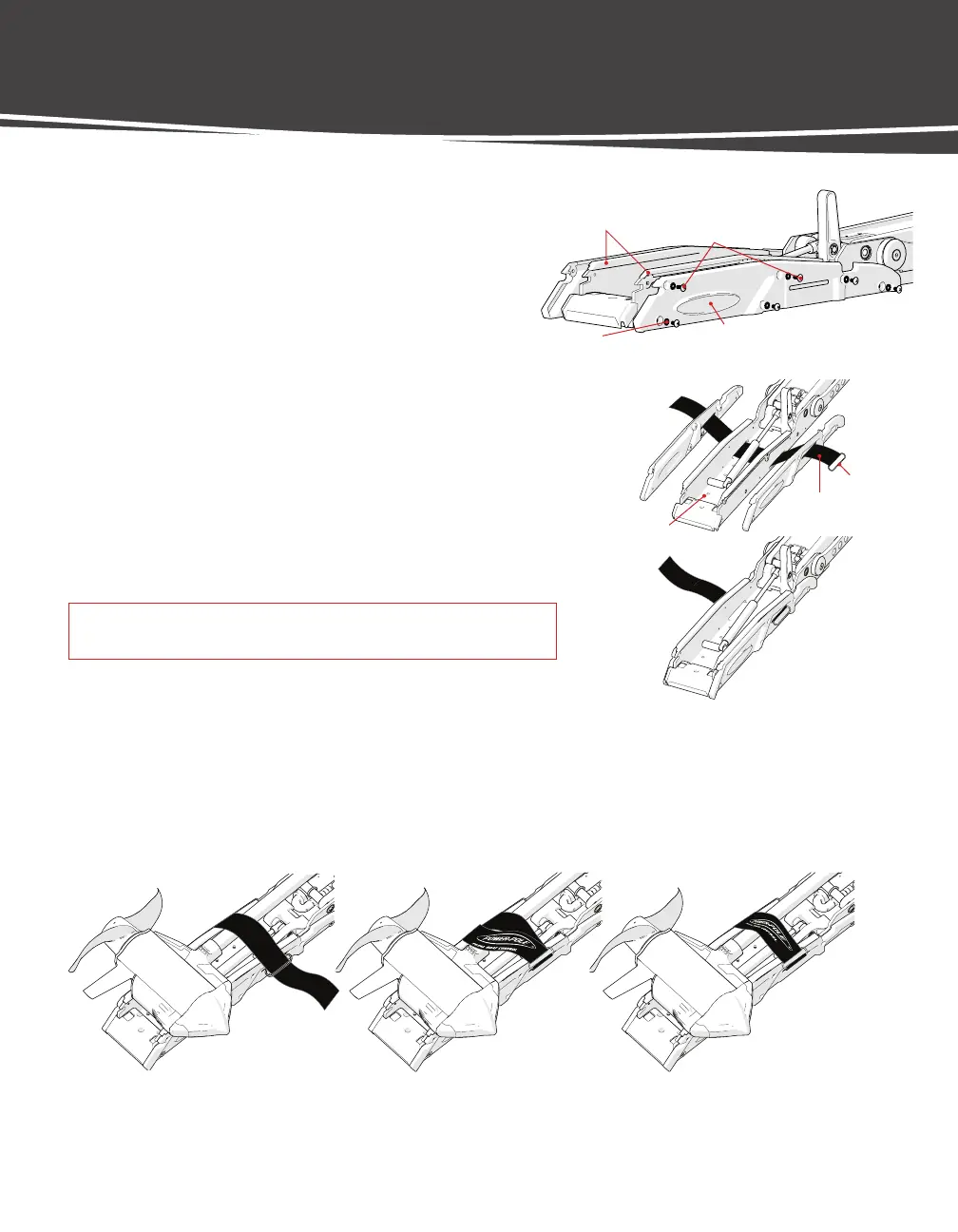

APPENDIX C Tie-Down Strap Installation
REMOVE SHROUDS
Using a #2 Phillips Head Screwdriver, remove the (6)
Screws and Lock Washers on each Side Shroud that
attach the Side Shrouds and Rubber Bumpers to the ZR.
ROUTE TIE-DOWN STRAP
Route the Strap (Power-Pole Logo Side Face Up) through the Side
Shrouds and Base as shown.
Place the Side Shrouds back in place while pulling the Tie Down Strap
all the way through so the Buckle is resting against the Side Shroud.
Using a #2 Phillips Head Screwdriver, reinstall the (6) Screws and
Lock washers on each Side Shroud and tighten snug.
IMPORTANT! The 2 uppermost screws on each shroud are the longer
(1/2") screws.
USING THE TIE-DOWN STRAP
Route the Strap over the Shaft and through the Buckle.
Pull the Strap snug against the Shaft and wrap it back over itself, using the Velcro to secure it.
1 2 3
1/2" Screws
Rubber Bumpers
Side Shroud
Lock Washer
Base
1
2
Strap
Buckle
