MOVE ZR Installation & Owner’s Guide | 13

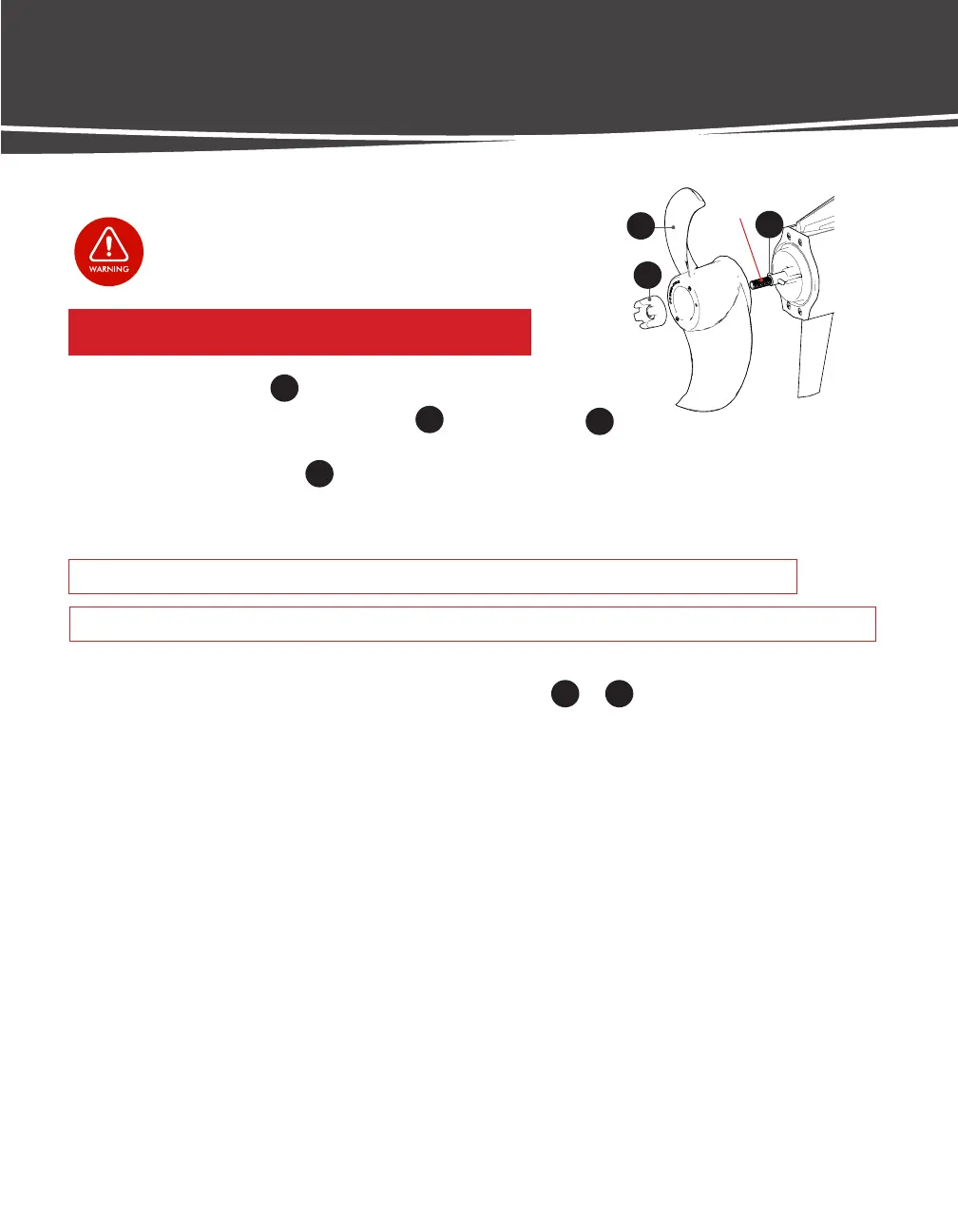

MOUNTING THE MOVE ZR
INSTALL TECH FLOW PROPELLER
STEP 1 Install the Shear Pin
11
through the hole in the Propeller Shaft.
STEP 2 Line up the slot in the back side of the Prop
9
with the Shear Pin
11
and install it onto the Propeller Shaft.
STEP 3 Install Anode Assembly
10
onto the Propeller Shaft and tighten until
snug with no play using a 9/16" Socket.
Propeller
Shaft
NEVER attempt to install or remove the prop while the MOVE
is connected to power.
CONNECT TO POWER
NOTICE: Follow Appendix B (p. 41) for proper ring terminal and butt connector installation procedures.
STEP 1 Route wire to power.
STEP 2 Depending on post size, attach the appropriate Ring Terminal
7
or
8
.
STEP 3 Proceed to the Connecting the Move section (p. 23), read all safety warnings, and follow the connection
instructions for your trolling motor battery configuration.
IMPORTANT! Before connecting the unit to power, you must read the Connecting the Move section (p. 23-25).
9
11
10
DO NOT USE AN IMPACT WRENCH TO INSTALL THE ANODE ASSEMBLY
