16 | MOVE ZR Installation & Owner’s Guide
INSTALLING THE REALFEEL
®
FOOT PEDAL
CONNECT TO POWER
NOTICE: Follow Appendix B (p. 41) for proper ring terminal and butt connector installation procedures.
STEP 1 Route wire to power.
STEP 2 Attach the Fuse Holder
34
to the positive lead from the Foot Pedal
27
using Butt Connector
31
.
STEP 3 Depending on post size, attach the appropriate Ring Terminal
32
or
33
and connect to power,
connecting the positive (+) lead to the positive post and negative (-) lead to the negative post.

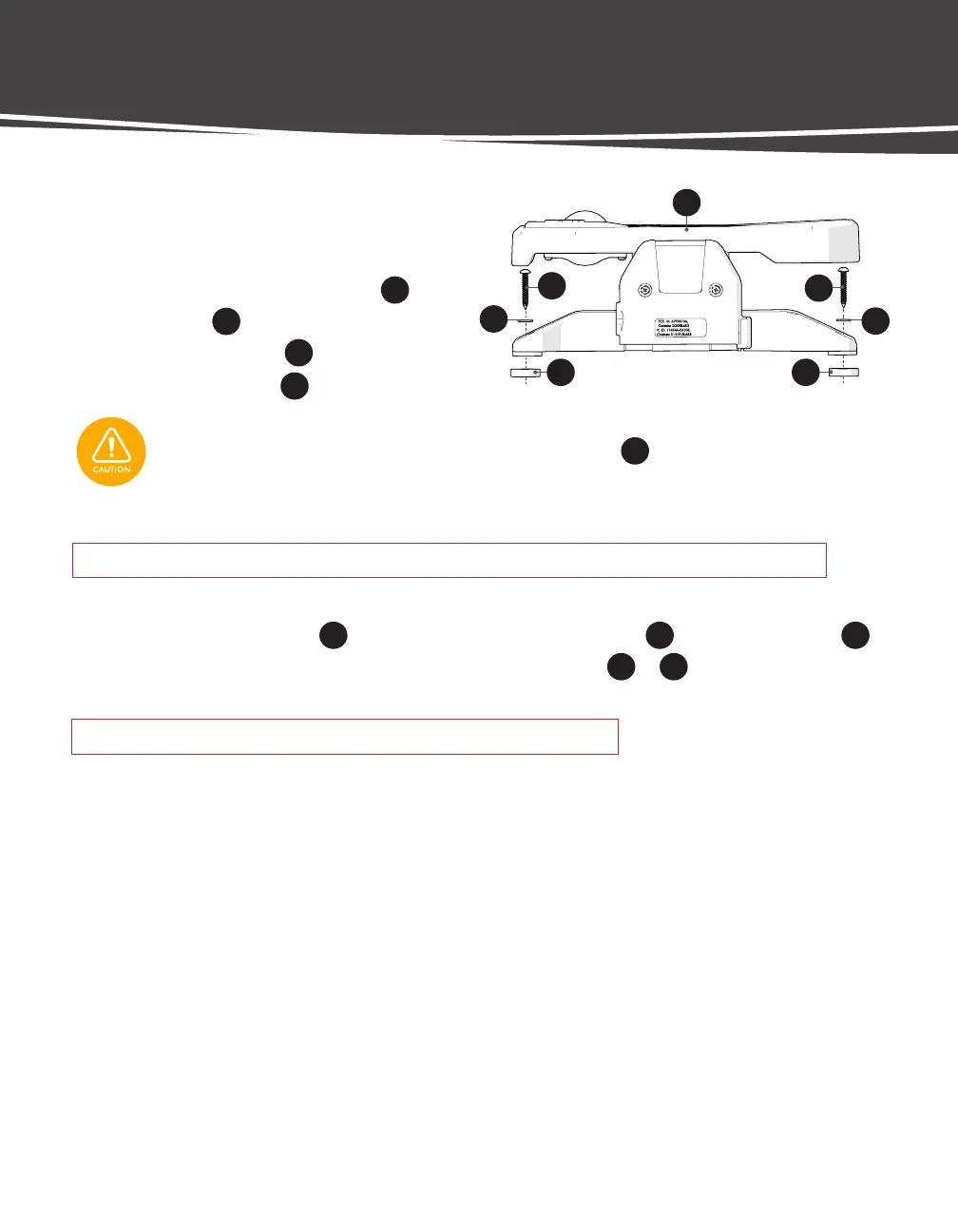

INSTALL MOUNTING HARDWARE
Using a #2 Phillips Head Bit and Electric Drill, install
mounting hardware in order and tighten snug.
1. (4) #10 x 1 1/4" Panhead Screws
30
2. (4) Washers
29
3. Foot Pedal Assembly
27
4. (4) Rubber Bushings
28
If Needed
Hardware Order
NOTICE: All Move accessories are compatible with 12v, 24v, and 36v systems.
If installing to a boat deck that is not flat or has a bow/curve, washers
28
must be used.
27
30
29
28
30
29
28
