Power Probe IV
www.powerprobe.com · 800-655-3585
Mode Navigation
The Power Probe IV has 8 different test modes available:
1. VDC – For DC voltage measurements. This is the default mode on startup. Max. 200 VDC
2. FEED TEST – For measuring loaded resistance in Ohms and display voltage drop.
3. AC RMS – For AC voltage measurements. Displays a True RMS averaged AC voltage. Max
200 VAC.
4. P-P – For AC voltage measurements. Displays Peak to Peak AC voltage. Max 200 VAC.
5. Hz FRQ CTR – For measuring signal Frequency. Also displays + and - Pulse Width.
6. FUEL INJ – Tests Fuel Injectors and Injector circuits.
7. DRV TST – Supplies safe voltage for testing computer driver circuits.
8. PPECT – Detects the open circuit signal from Power Probe ECT2000 to assist in locating opens.
Refer to sections: Testing and Measuring Operations and Advanced Testing Operations for further
mode descriptions and suggested applications.
MODE
CLR
MODE
CLR
MODE
CLR

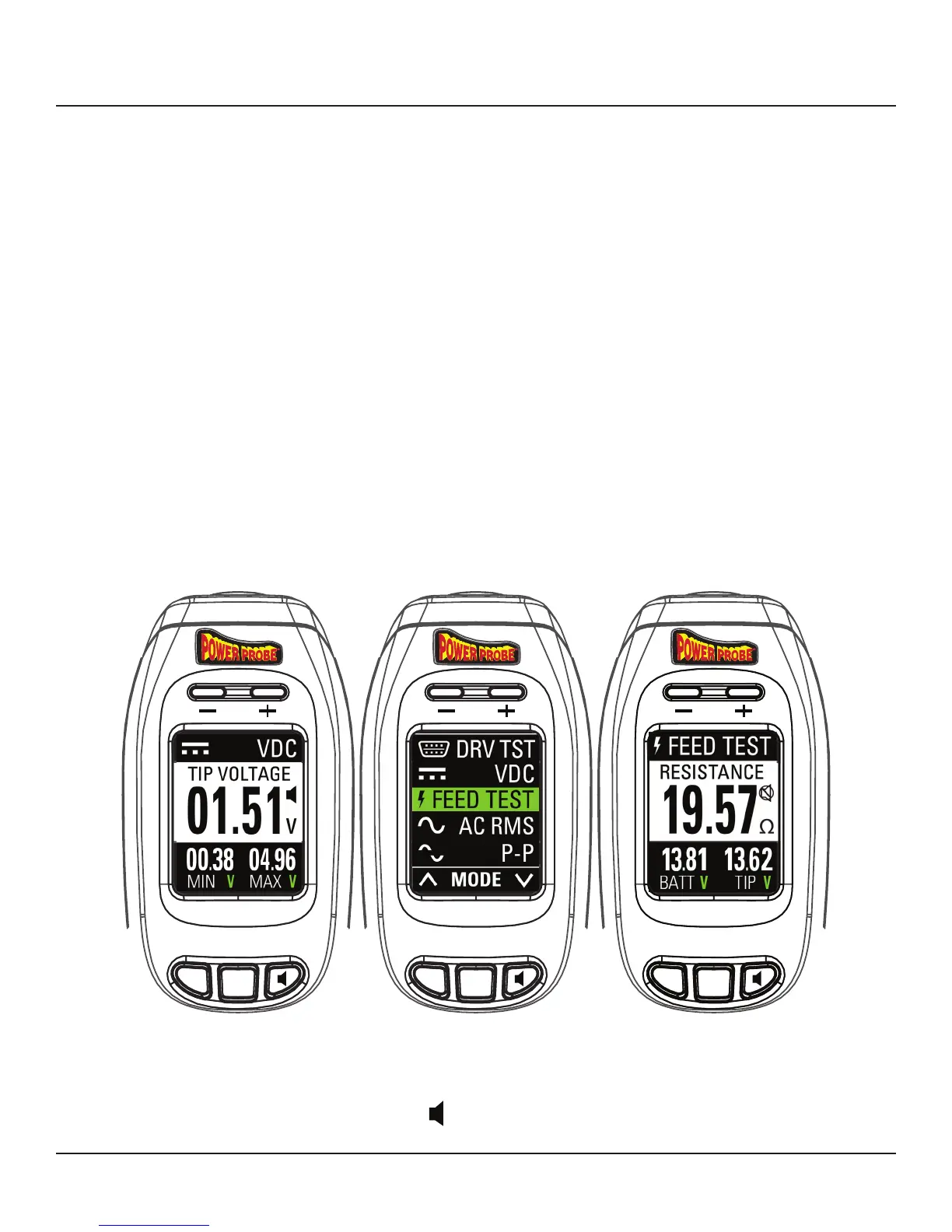

To Change Mode
Press
the
“MODE”
button
Scroll up and down
the mode list using
“CLR” for up and
“ ” for down
naviagtion
Press
the
“MODE”
button again
to select
Page 7
