Power smart DB5023 - Chute and Deflector Assembly

ASSEMBLY INSTRUCTIONS
10

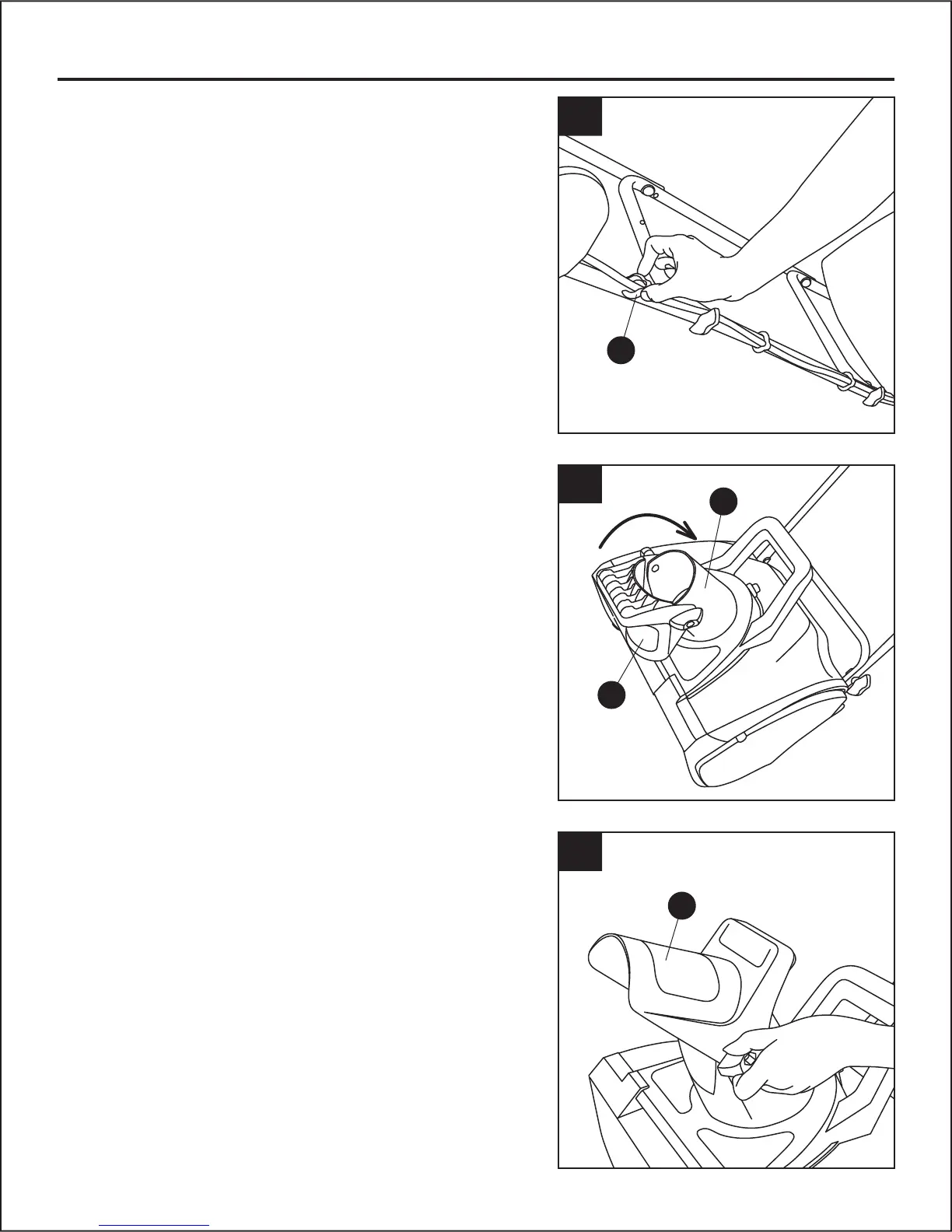

7. Locate the three cable clips (D) in the parts bag.
Secure the power cord to the frame of the unit by
clipping them onto the frame at evenly spaced
intervals.
7
D
8. Loosen the two knobs on the chute deflector (G). Lift
the chute deflector (G) so that it snaps and locks
securely onto the discharge chute (H).
Note: You should hear a loud click when the chute
deflector (G) locks into place.
8
L
i
f
t
a
n
d
L
o
c
k
G
H
9. Raise or lower the chute deflector (G) to the desired
height and tighten the chute deflector knobs.
Note: Do not overtighten the chute deflector knobs.
9
G
