Power smart DB5023 - Chute Crank Mechanism Assembly

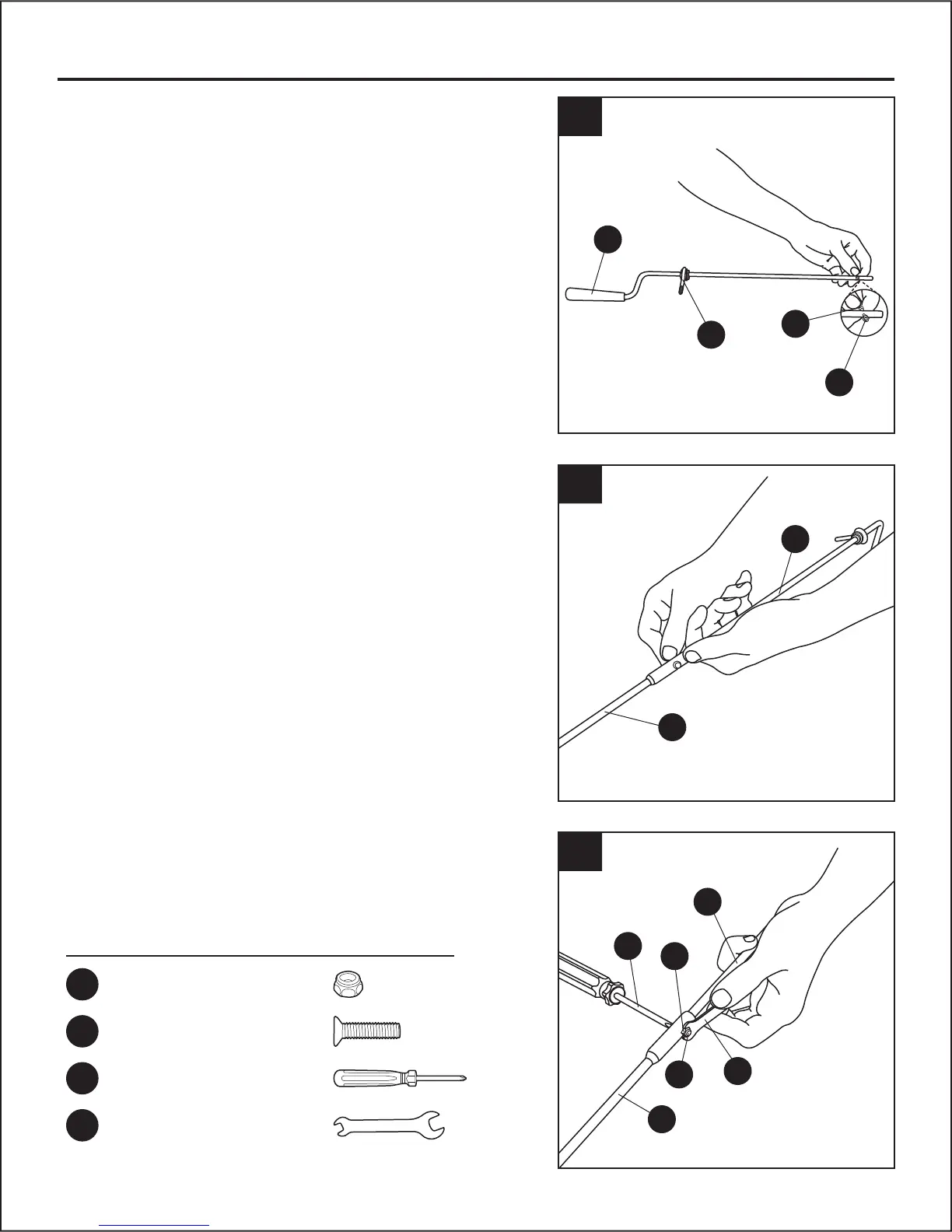

ASSEMBLY INSTRUCTIONS
11
10. Locate the upper chute crank (E) in the parts bag.
Remove the screw (EE) and nut (DD) from the upper
chute crank (E) using the Phillips screwdriver and the
wrench provided.
Note: You may be able to unfasten the screw and nut
by hand.
10
E
Q
EE
DD
11. Slide the upper chute crank (E) into the lower chute
crank (F), aligning the screw holes.
E
F
11
12. Tighten the screw (EE) into the aligned holes using
the Phillips screwdriver (FF). Fasten the nut (DD)
with wrench (GG).
12
EE
DD
FF
GG
F
E
Hardware Used
DD
x 1M4 Nut
EE
x 1M4 x 16 Screw
FF
x 1Phillips Screwdriver
GG
x 1
7 mm
Two-sided open-end wrench
