ASSEMBLY INSTRUCTIONS
12

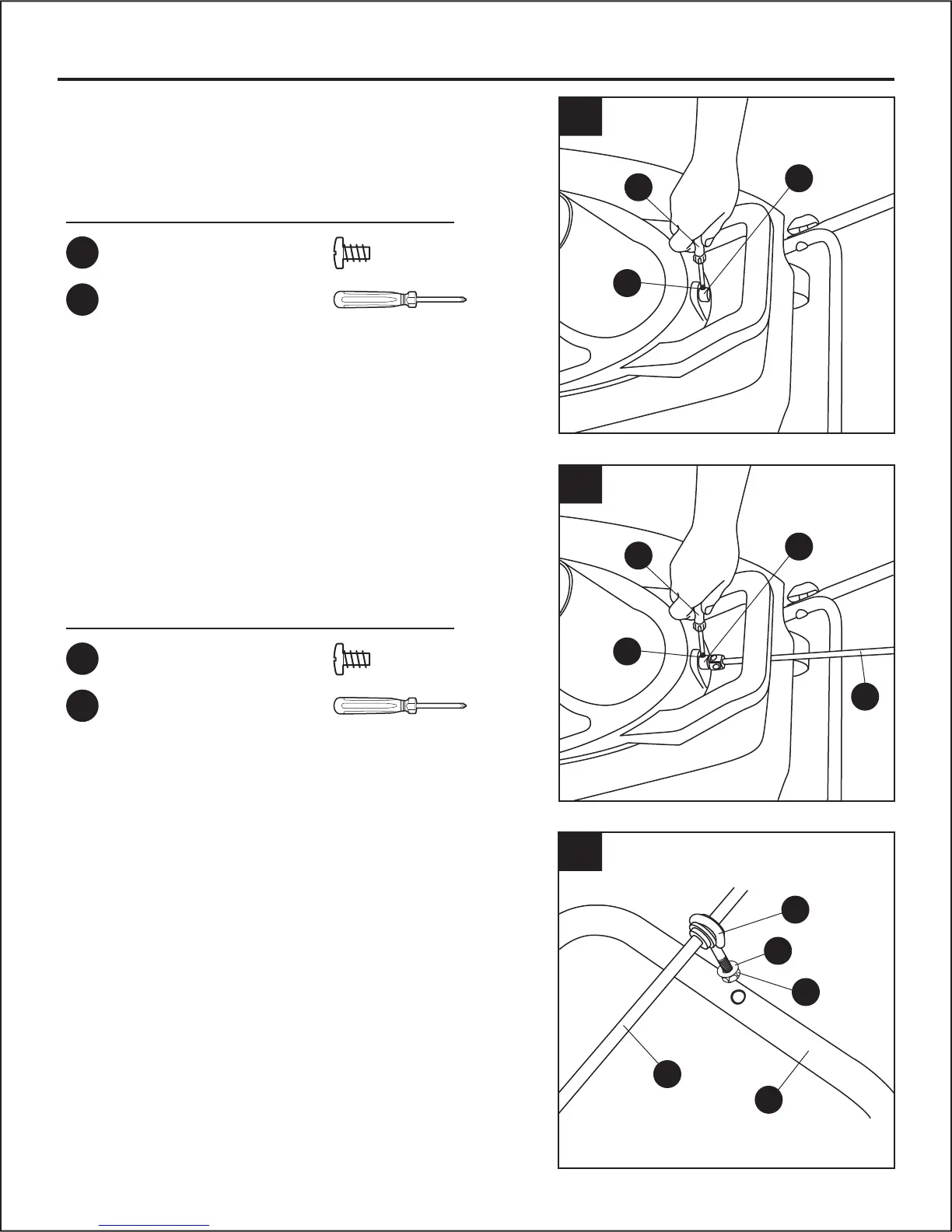

15. Remove the washer (HH) and nut (II) from the eye
bolt with rubber grommet (Q) found on the upper
chute crank (E).
15
E
B
Q
II
HH
13. Remove the screw (JJ) on the discharge chute base
(R) with the screwdriver (FF).
13
R
JJ
FF
Hardware Used
JJ
x 1BT4 x 8 Screw
FF
x 1Phillips Screwdriver
14. Insert the chute crank (F) into the hole on the
discharge chute base (R). Insert the screw (JJ)
previously removed and tighten it with the
screwdriver (FF).
14
Hardware Used
JJ
x 1BT4 x 8 Screw
FF
x 1Phillips Screwdriver
R
F
JJ
FF
