KNOWING YOUR INVERTER GENERATOR

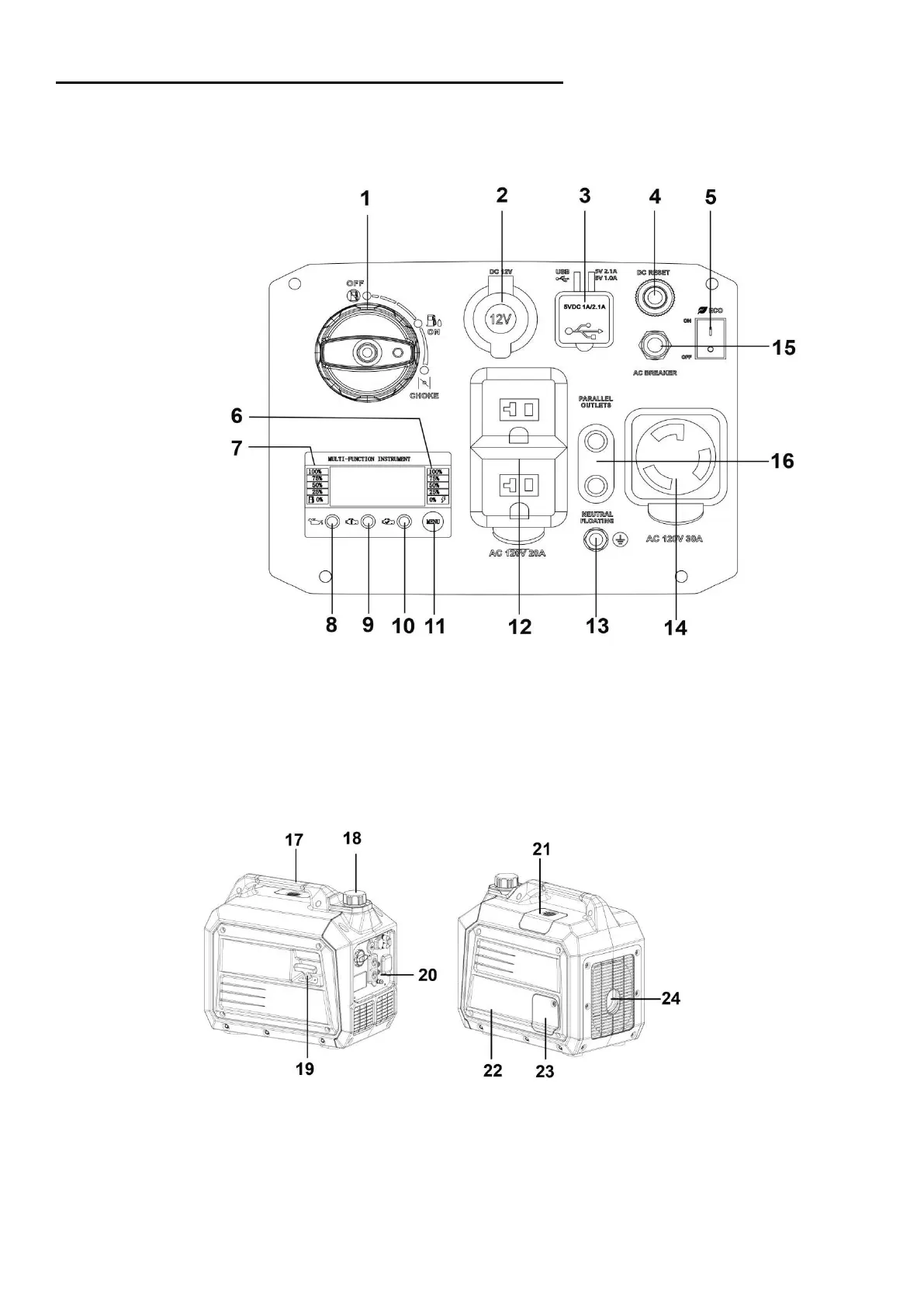

Use the illustrations below to become familiar with the locations and functions of the various components and
controls of this generator.
Control Panel
1
Engine Switch
7
Fuel Level Indicator
13
Ground(Earth)Terminal
2
12V DC Port
8
Oil Warning Light
14
120V 30A AC Outlet
3
USB Port
9
Overload Indicator
15
120V 20A AC Breaker
4
DC Breaker
10
Running Indicator
16
Parallel Outlets
5
ECO Switch
11
Menu Button(AC Reset)
6
Load Indicator
12
120V 20A AC Outlets
17
Carrying Handle
21
Spark Plug Maintenance Cover
18
Fuel Tank Cap
22
Air Filter Maintenance Cover
19
Recoil Start Handle
23
Oil Maintenance Cover
20
Control Panel
24
Muffler Exhaust Exit
