Connection Plugs(AC socket)
The Volt outlet is overload protected by the inverter. Each socket will power 120Volt AC, single phase,
electrical loads requiring up to 3.2 kW.

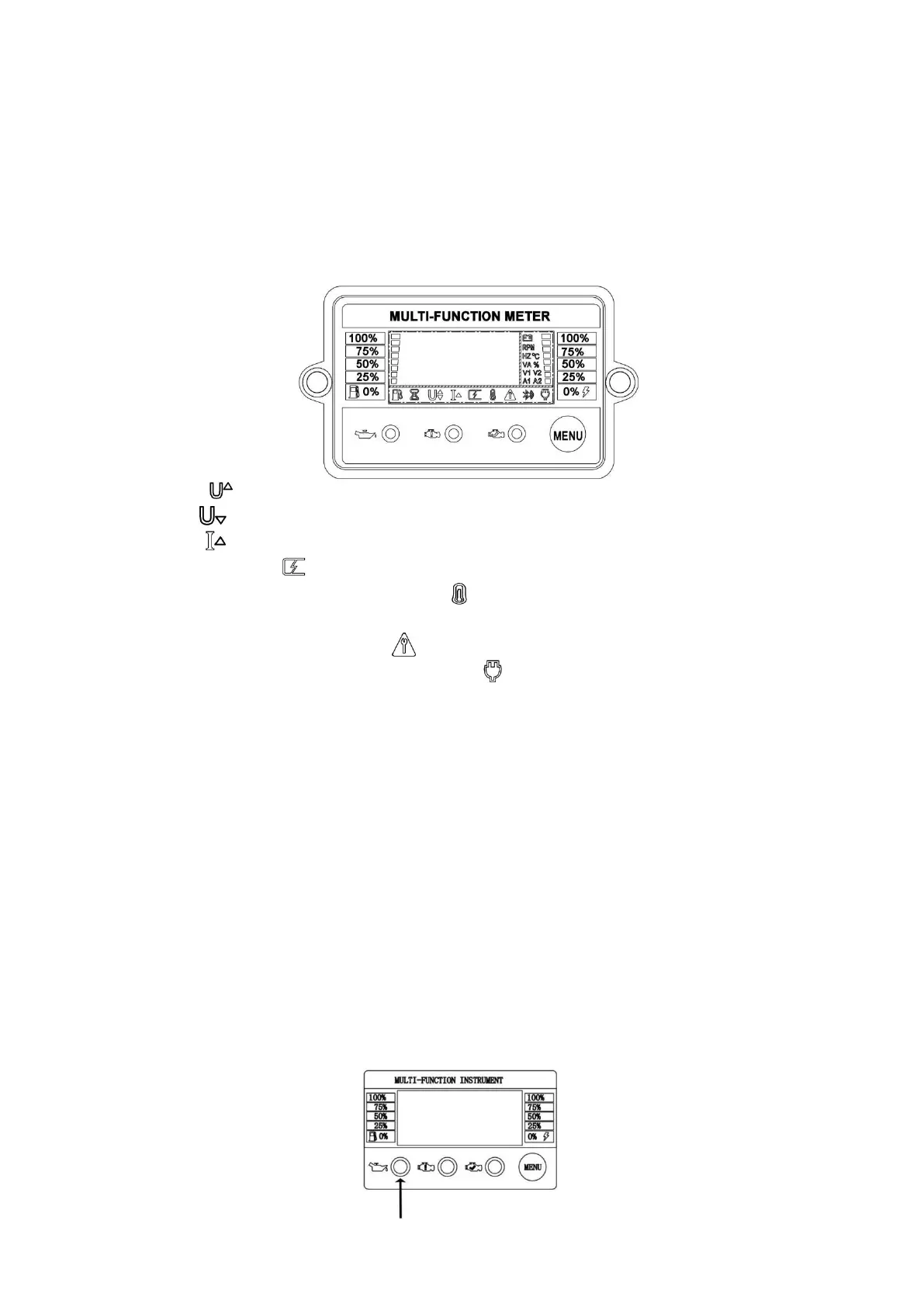

Multi-function Meter
The multi-function meter can be used for displaying fuel level, load percent, output wattage, voltage, run
time and total run time as applicable.
When over-voltage, will flashing
；
When low-voltage, will flashing；
When over-current, will flashing;
When short-circuit happened, flashing, remove all applied loads
；
If the IGBT temperature is in a high level, the signal will flashing
；
In all above conditions, press the MENU button for about 3 seconds, the information will be restored.
If the generator needs maintenance, the light will flashing, maintenance your generator in time.
When the generator is in normal operation, the indicator lights up constantly.
MENU button
We can check information by pressing the MENU button once on the display.
When the generator is in some output exception condition, press the MENU button for 3 seconds to restore
the display.
Load Indicator
The load indicator on the right side of the meter shows the loaded electric devices load percent.
Fuel Level Indicator
The indicator on the left side of the meter is designed to remind the fuel level in current time. Remind us to
add the fuel in time.
Oil Warning Light (Yellow)
The low oil level alarm system is designed to prevent engine damage due to insufficient oil in the crankcase.
The low oil level alarm system automatically shuts down the engine before the engine oil in the crankshaft
box is lowered to safety (the generator engine switch remains “ON”).
