Power SUA6900D - Control Panel Features

Page 11
NOTE: Total power drawn from all outlets must not exceed the nameplate rating.

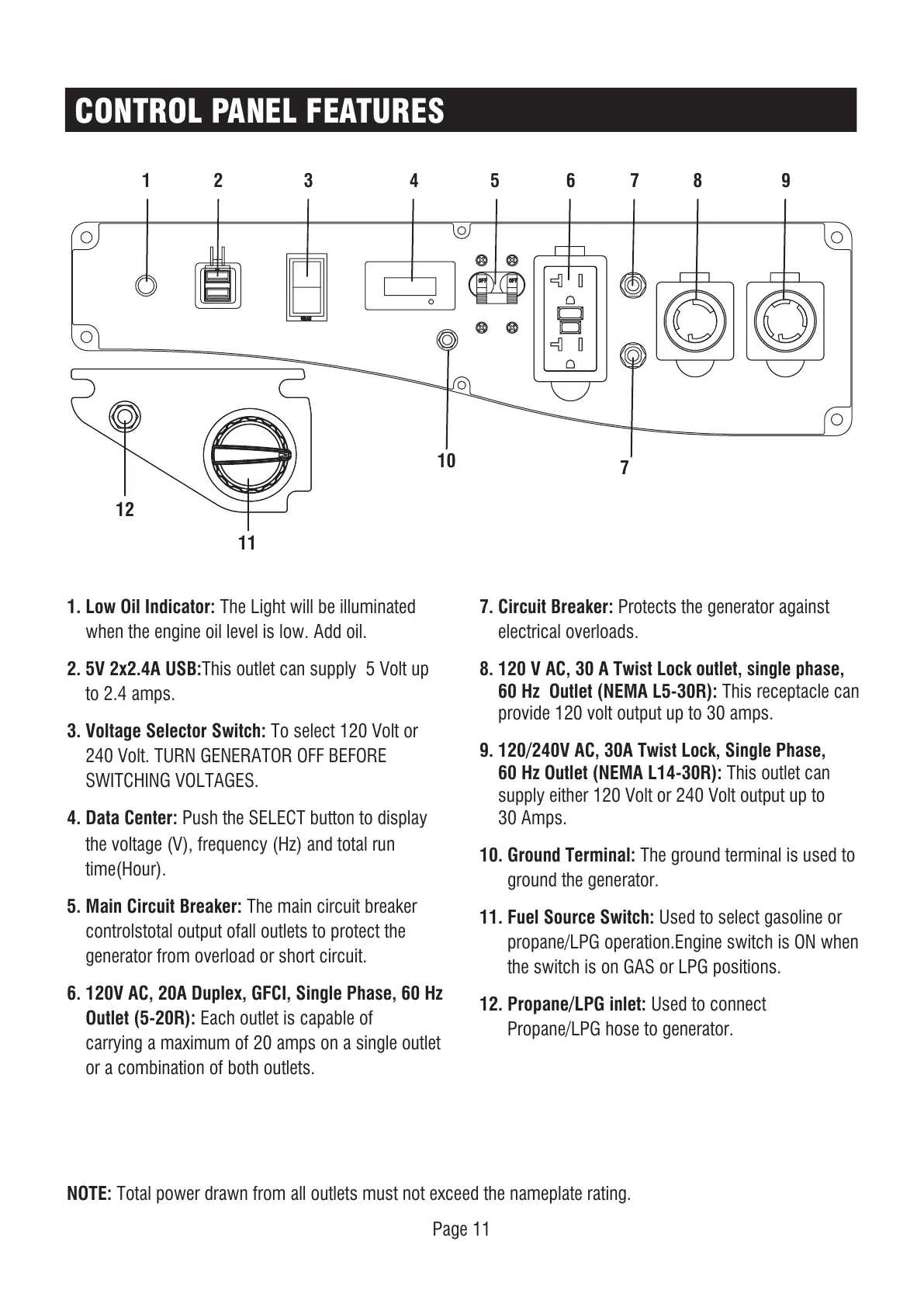

CONTROL PANEL FEATURES
7
10
1 2 3 4 5 6 7 8 9
1. Low Oil Indicator: The Light will be illuminated
when the engine oil level is low. Add oil.
2. 5V 2x2.4A USB:This outlet can supply 5 Volt up
to 2.4 amps.
3. Voltage Selector Switch: To select 120 Volt or
240 Volt. TURN GENERATOR OFF BEFORE
SWITCHING VOLTAGES.
4. Data Center: Push the SELECT button to display
the voltage (V), frequency (Hz) and total run
time(Hour).
5. Main Circuit Breaker: The main circuit breaker
controlstotal output ofall outlets to protect the
generator from overload or short circuit.
6. 120V AC, 20A Duplex, GFCI, Single Phase, 60 Hz
Outlet (5-20R): Each outlet is capable of
carrying a maximum of 20 amps on a single outlet
or a combination of both outlets.
7. Circuit Breaker: Protects the generator against
electrical overloads.
8. 120 V AC, 30 A Twist Lock outlet, single phase,
60 Hz Outlet (NEMA L5-30R): This receptacle can
provide 120 volt output up to 30 amps.
9. 120/240V AC, 30A Twist Lock, Single Phase,
60 Hz Outlet (NEMA L14-30R): This outlet can
supply either 120 Volt or 240 Volt output up to
30 Amps.
10. Ground Terminal: The ground terminal is used to
ground the generator.
11. Fuel Source Switch: Used to select gasoline or
propane/LPG operation.Engine switch is ON when
the switch is on GAS or LPG positions.
12. Propane/LPG inlet: Used to connect
Propane/LPG hose to generator.
11
12
