b) Manual Setup
You will nd an overall view of the sequence for the selected function in the main
Sequencer menu.
The upper line shows the sequence in the forward direction (extension), the lower
line the reverse sequence (retraction).
In Manual Setup you can set four travel points in time and position for each fun-
ction; forward and reverse processes are individually variable.

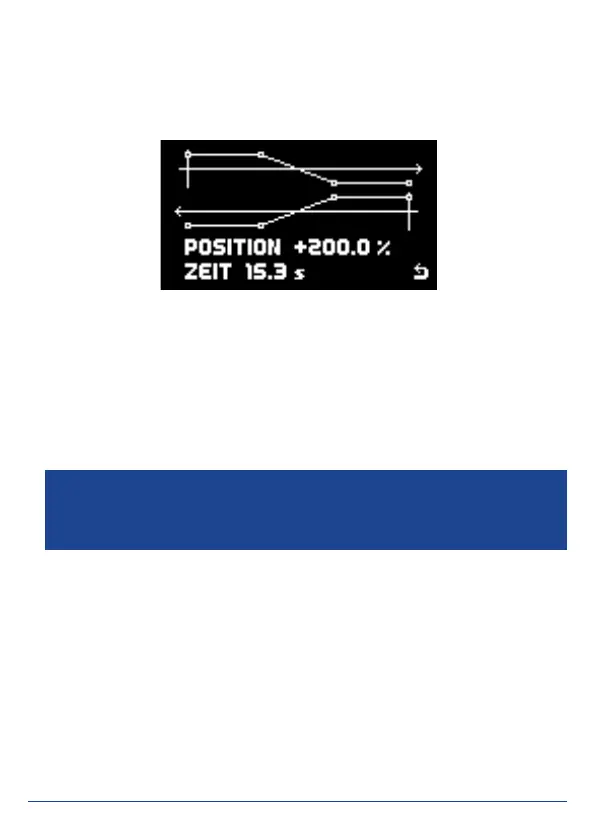

The current position and time are shown in the bottom line of the screen.
Use buttons I and II to select the point you wish to change. The position of the
servo follows the position of the cursor on the line. For example, if you select a
point which stands at +80%, the corresponding servo moves slowly to the +80%
position.
To adjust a point, select the appropriate point using buttons I or II, and press the
SET button; you can now adjust its position. Once the position is correct, you can
set the time after pressing the SET button again.
All four points are permanent. If you want a particular point to produce no servo
movement, set its position to the same value as that of the previous point.
As a basic rule the time can only be entered between the two points at left and
right. If you want to shorten the entire sequence, you must move all the points.
Note: When adjusting the wheel doors you should start by retracting and di-
sabling the undercarriage itself, otherwise there is a risk of the doors fouling
the wheel legs and causing mechanical damage.
