www.powerbox-systems.com 25
9. OUTPUT MAPPING
Output Mapping enables you to assign servo sockets to the transmitter channels
and the gyro and sequencer functions.
All 16 outputs can be assigned, and there are no restrictions. For example, output A
can be direct channel 5 from the transmitter, or a door sequencer function. It is also
possible to assign one function to multiple outputs. For example, two elevator ser-
vos can be controlled from just one transmitter channel. Servo matching can then
be used to match the control surfaces accurately to each other. This facility saves
channels at the transmitter, where they can be in short supply.
Output Mapping is also used to set the Failsafe response of each individual channel.

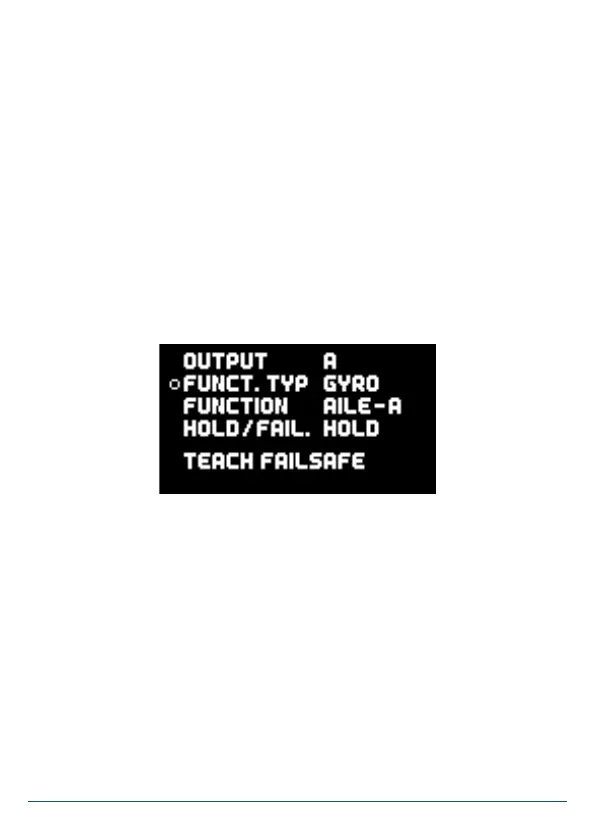

In the Output Mapping display, you use buttons I and II to select the output you wish
to assign:
Press the SET button to select the output.
Function type
Three different function types are available:
- Direct
Selecting a Direct channel assigns a transmitter channel directly to the selected
output without modication (except for servo matching). For example, if you
assign Direct 5 to output K, then output K responds to channel 5 at your trans-
mitter.
- Gyro Ausgänge
Once the Setup Assistant is complete, you can assign the gyro channels to the
outputs. At the Select stage you will nd, for example, Aileron, Elevator and Rud-
