1. Identify where the charger is to be installed on the wall.

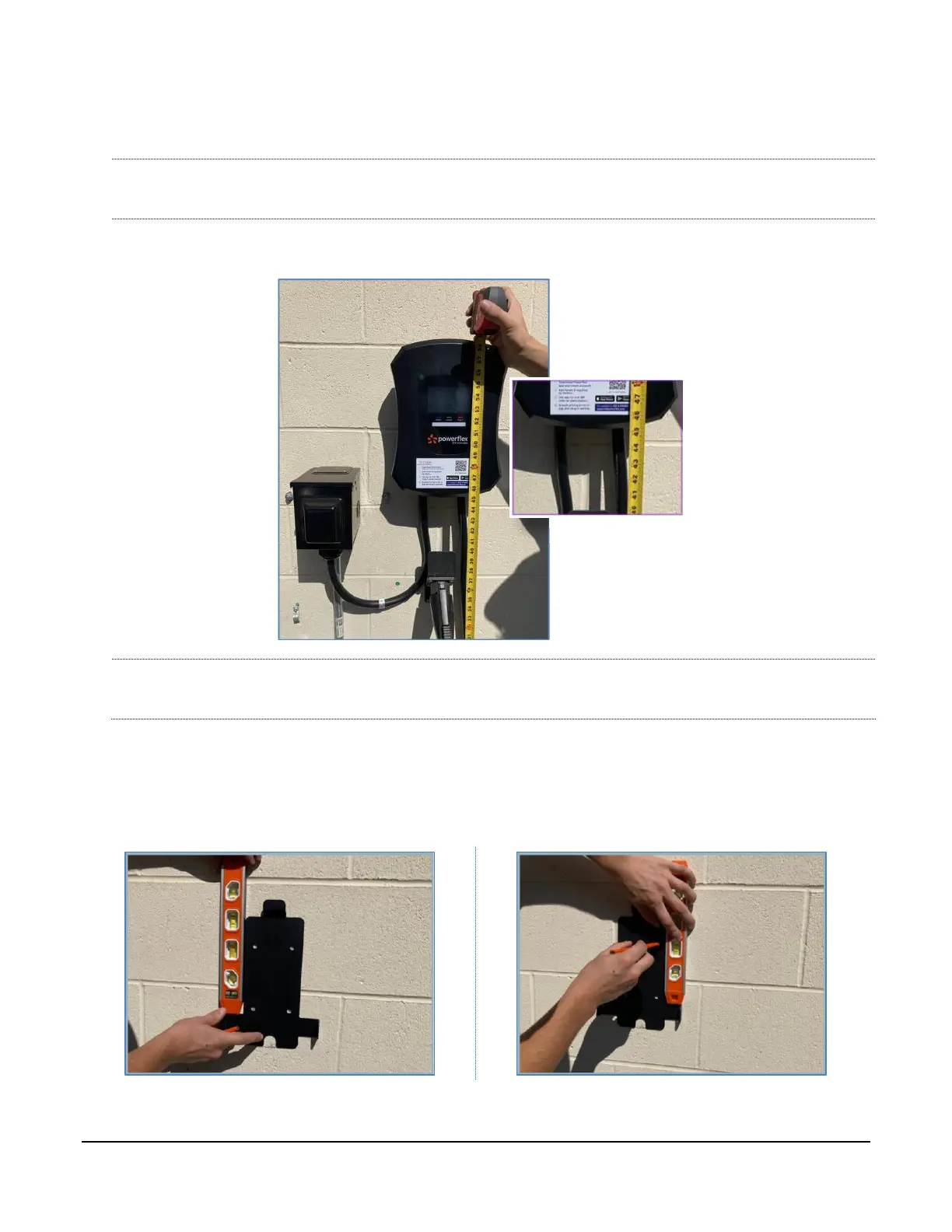

▪ PowerFlex recommends that the base of the station should be between 48" and 58" (1.219 m
to 1.473 m) from the ground.
▪ For ADA compliance, the station’s QR code should be no higher than 48" (1.2 m), which means
that the bottom of the station should be no higher than 45" (1.14 m) from the ground.
▪ Make sure that the location of the charger is compatible with the location (or expected
location) of a mounted junction box where the wires from the electrical panel will terminate.
2. Remove the mounting bracket from the back of the charger by removing the two screws on the side
of the charger.
3. Place the mounting bracket on the wall at a location no higher than 45" from the ground.
4. Use a level to ensure the plate is level (L) and mark the positions for the four screws on the wall (R):
