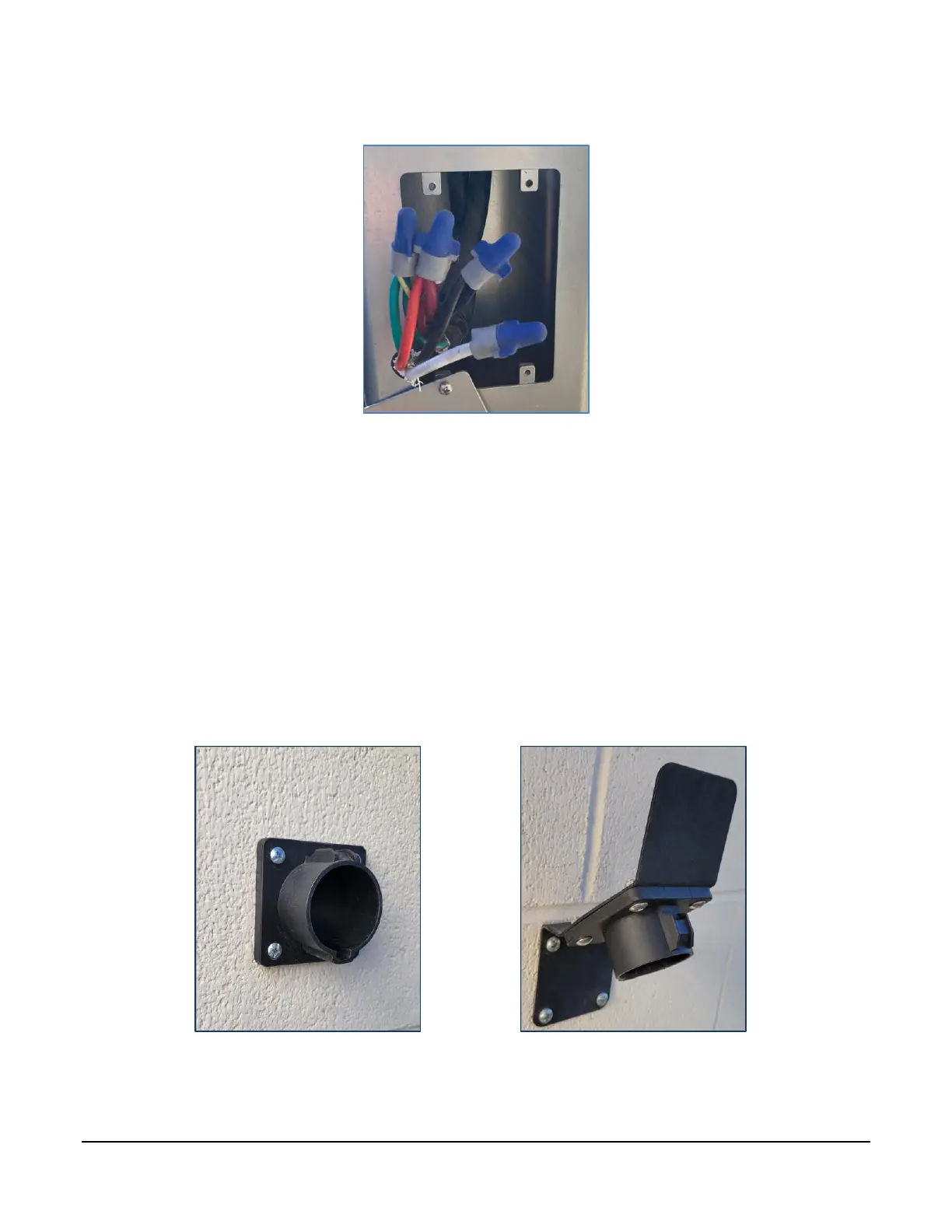

8. Pass the charger wiring cable through the hole and connect to the circuit branch opening in the
pedestal. Connect the cables with wire nuts inside the pedestal to the junction box:
For safety reasons, make sure that the wiring opening is covered. To complete the installation, you’ll
spend a few more minutes to perform cable management (in the next section).
Finishing up with cable management
Cable management is important to complete for every EV charger installation. This includes the
installation of the following:
▪ A charging connector holster
▪ A cable retractor or a high-point anchor
Install a charging connector holster
At the end of a charging cable is a charging connector that is inserted into a vehicle for charging. For
safety reasons, the charging connector should be hung up when not in use. Two holsters are offered:
