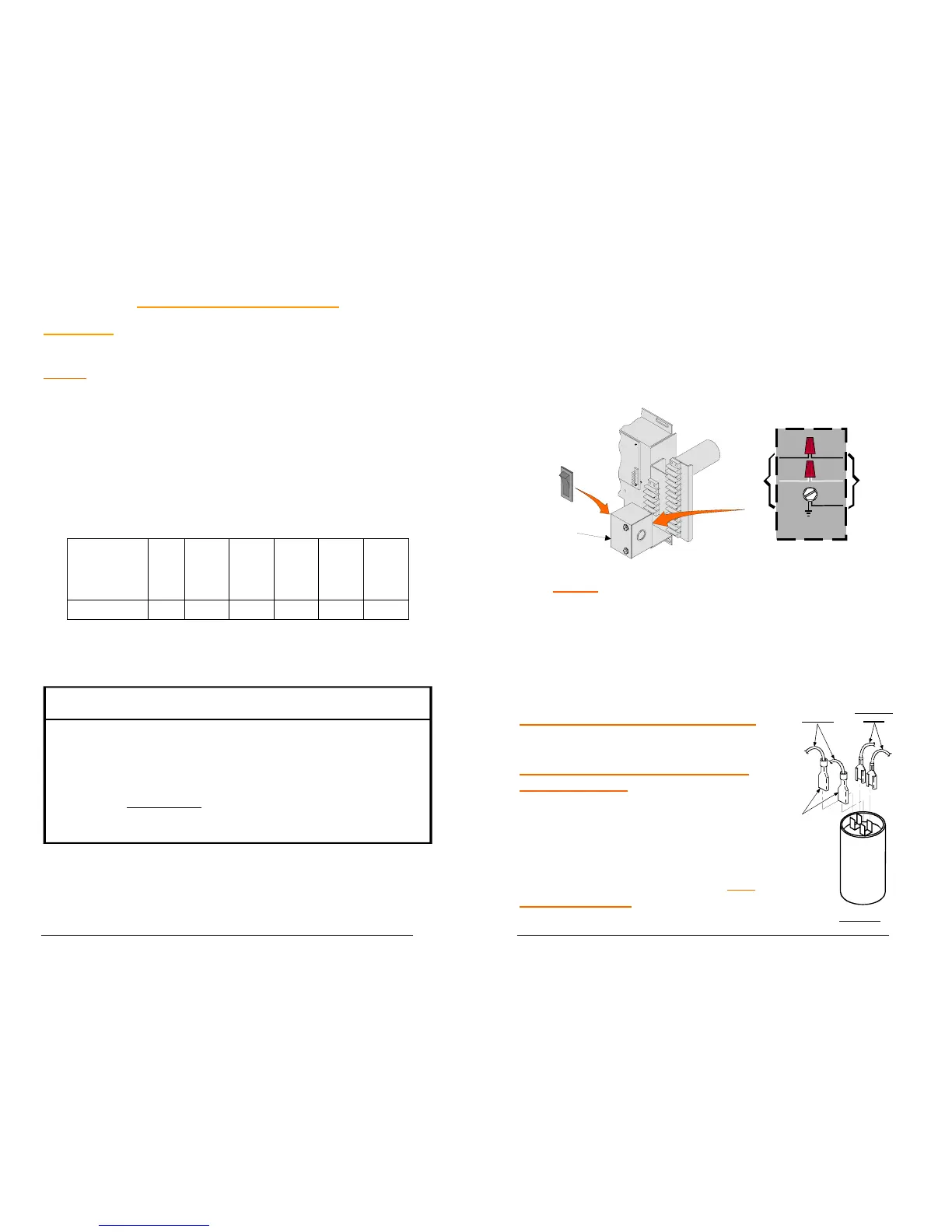

ELECTRICAL CONNECTIONS
WARNING- DO NOT APPLY POWER UNTIL TOLD TO DO
SO. RISK OF SHOCK OR INJURY MAY RESULT!
NOTE: Wiring to operator must use watertight materials in
accordance with local electric code. See wire gauge/distance
charts for proper sizing. Master/Slave installations should have
SEPARATE power supply wiring or length of wire runs should
be figured at half that shown on the chart. This unit must be
grounded in accordance with N.E.C. and local codes.
Before connecting the operator, use a voltmeter to determine
that the electrical service is 115V. THIS OPERATOR CANNOT
BE CONNECTED AT 230 VOLTS. Damage will result which is
not covered under warranty.
LOW VOLTAG E W IRE
GAUGE /DISTANCE CHART
2 4 A W G : U p to 1 5 0 '
20 A W G : 150' - 200'
2 5 0 ' - 1 ,5 0 0 '
Control w iring should be run as tw isted
pairs.
D O N O T ru n co n tro l w ire s in th e
sam e conduit as power wires. telephone
wires, or loop detector leads.
18 AW G :
1. Be sure power switches at source and operator are
OFF.
Line
Voltage
HP
14
AWG
12
AWG
10
AWG
8
AWG
6
AWG
115 VAC 1/2 150’ 250’ 400’ 500’ 650’
22
2. Connect incoming power lines and ground wire as
shown below.
Hot leg (black) to BLACK; Neutral (white) to White:
Ground to Ground Screw.
Incoming
Power
115V - 1Ø
Operator
BLK
BLK
WHT
WHT
GND
GND
Inside Power Box,
Connect As Shown
Power
Switch
Power Box
NOTE: In order to properly run and check the operator
at various stages during the setup procedure, it is
suggested that a three button control station be
connected at this time. See page 23.
LEFT/RIGHT HAND CONVERSION:
Refer to (Fig. 1) to determine hand of
operator required for this installation.
This unit is factory setup for right
hand operation.
To convert operator to left hand
operation, make certain the power
switch is off, and locate the motor
capacitor (See Fig. 10). Switch the red
and blue wires, on the capacitor, that
goes to the motor. The operator is now
setup for left hand installation.
Figure 10
TO CONTROL
BOARD
TO MOTOR
SWITCH THE RED AND
BLUE WIRES GOING
TO THE MOTOR TO
CHANGE OPERATOR
TO LEFT HAND
OPERATION.
