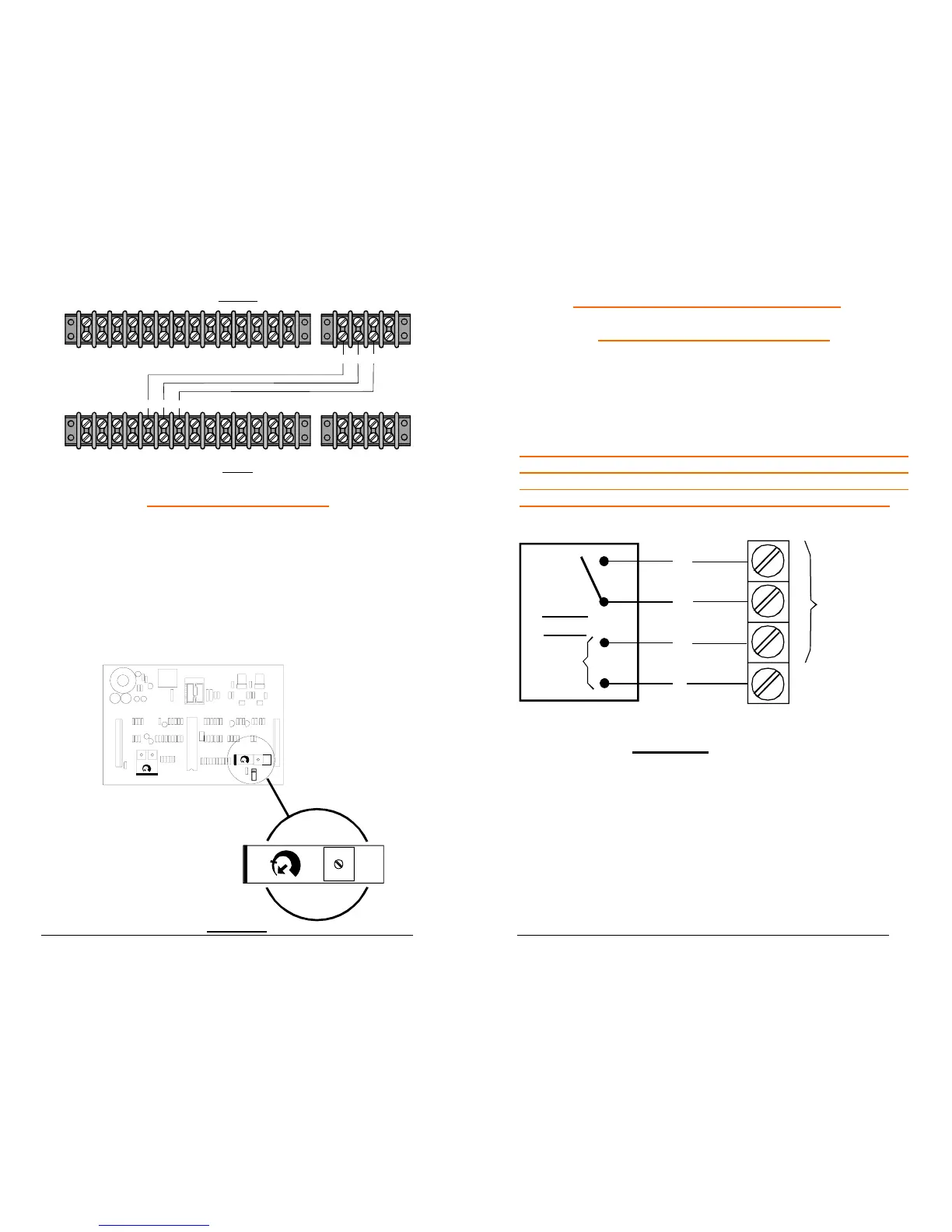

TIMER TO CLOSE OPTION
The operator is equipped with a timer to close option for use
with control devices such as a radio control, or card key
control. The AUTO RECLOSE TIMER adjustment screw is
located on the printed circuit board. The operator is shipped
from the factory with this timer preset to the off position; fully
counter clockwise. As the timer adjustment screw is rotated
clockwise, the closing of the gate can be delayed from 2
seconds to 60 seconds.
AUTO
CLOSE
TIMER
60 SEC
2 SEC
OFF
LOCATION OF
AUTO CLOSE TIMER
ADJUSTMENT
Figure 12
28
ACCESORY CONTROL CONNECTIONS
RADIO CONTROL INSTALLATION
A Three or Four wire radio control receiver can be
installed on this operator. This radio control receiver can
only be used to open the gate, therefore the “TIMER TO
CLOSE” option must be activated for closing.
NOTE: If your radio’s connecting wires are not color
coded as shown, see the radio’s installation manual to
determine which wires are for the normally open
contacts and which require the 24 VAC Power Supply.
4 WIRE
RADIO
R1
R2
R3
GY
R
BK
GY
R4
N.O.
CONTACT
RADIO CONTROL
TERMINAL
Figure 13
24 VAC
USE THESE
3 TERMINALS
FOR 3-WIRE
RADIO CONTROL
To Next Page
