2.
which is connected to the rubber tube (don't forget to put on the rubber gasket). Connect the transparent rubber tube to
the tank cover (Fig. 1a), in this way the turbine air will be forced into the tank, creating an overpressure that will displace
the liquid from the tank through the exhaust hose.
Tank assembly. Remove the bottom cover of the tank and put on the pressure (spray) cover,
3.
to the tank outlet.

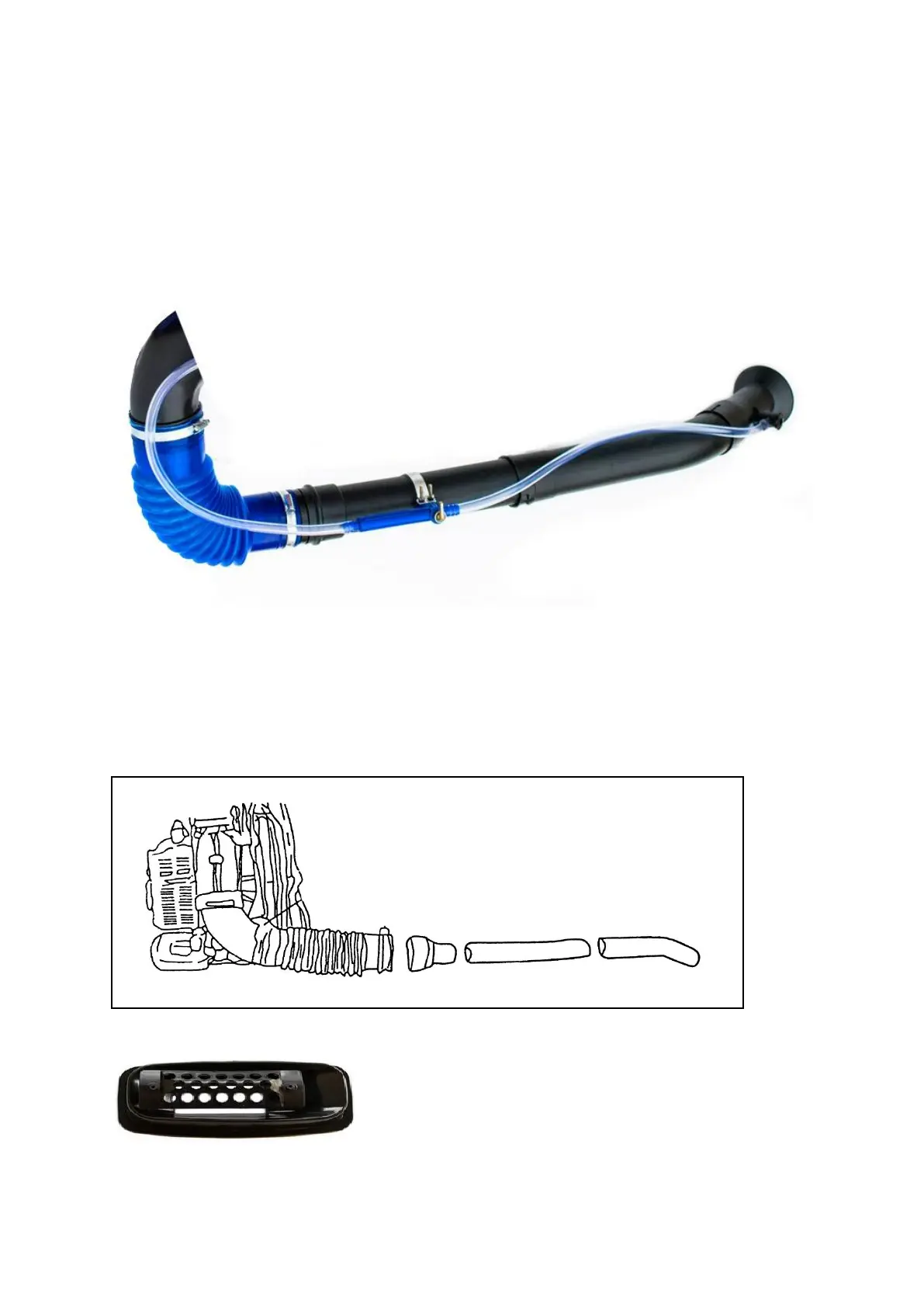

Install the nozzle to the device as shown in (Fig. 2), connect the rubber hose
Fig. 2
Dusting (spreading) mode
1.
(Fig. 3) with dust cover (Fig. 3a)
Remove the tank, inlet and outlet tube, spray cover and install the dusting tube
Fig. 3
Fig. 3a
5
