Assembly
Call Powermate Customer Service at 1-800-
445-1805 for any assembly issues or con-
cerns. Please have model and serial number
available.
The following tools are required to install the
accessory kit.
•See Table 3: Accessories (Tool Kit)
NOTE: The wheels are not intended for over-
the-road use.
See Figure 2-5.
Install wheels as follows:
1. Slide axle pin (3) through wheel (1), M12 x
4mm flat washer (6), and frame.
2. Install M12 x 4mm flat washer (6) and
insert cotter pin (12) through axle (3).
Bend tabs (of cotter pins) outward to lock
into place.
Install frame foot assembly as follows:
1. Slide M8 flat washer (8), rubber foot (5),
foot spacer (4) onto M8 x 80 bolt (10).
2. Align through holes in frame rail and
secure with M8 nyloc nut (11).
Install handle as follows:
1. Slide M8 x 50 bolt (9) through handle
bracket and handle (2). Secure with M8
nyloc nut (11).
.

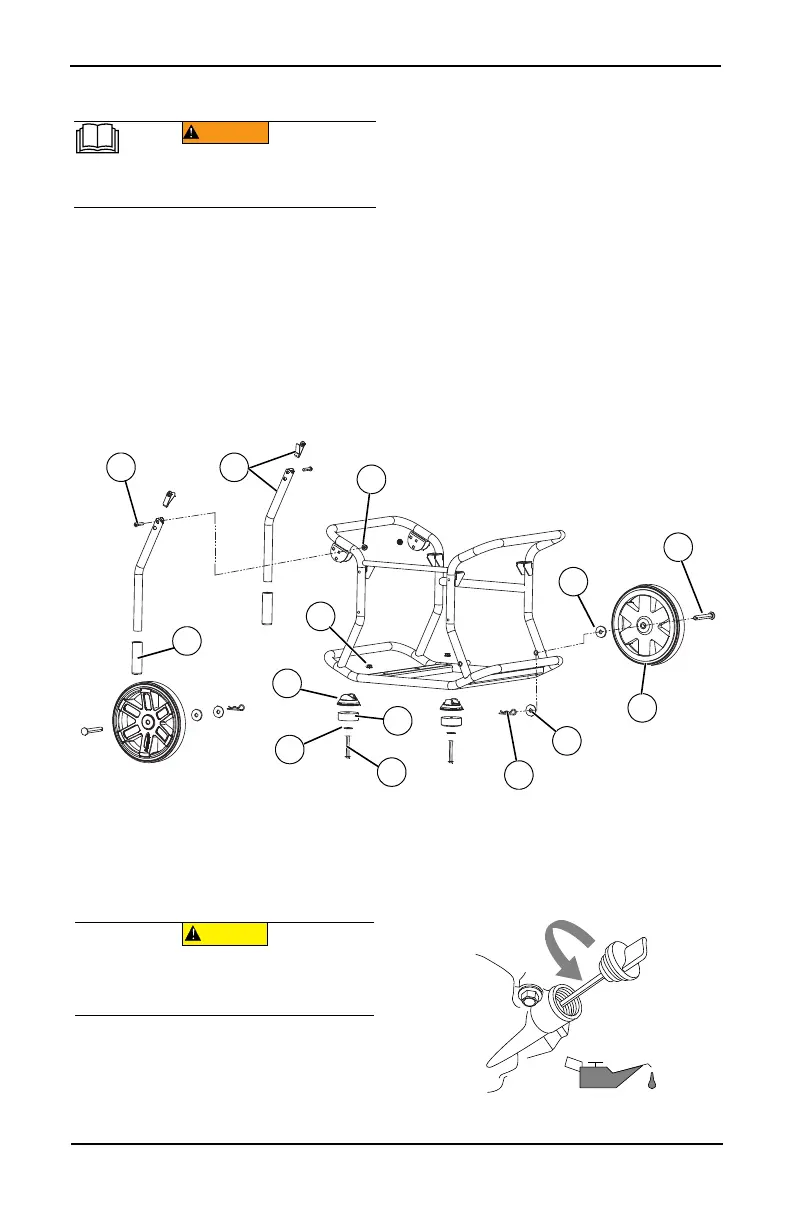

Figure 2-5. Wheel, Handle and Foot Assembly
Add Engine Oil
1. Place generator on a level surface.
2. Verify oil fill area is clean.
3. Remove oil fill cap and wipe dipstick clean.
See Figure 2-6.
Figure 2-6. Remove Dipstick
(000100a)
WARNING
Consult Manual. Read and understand manual
completely before using product. Failure to
completely understand manual and product
could result in death or serious injury.
001592
4
12
1
7
8
11
9
2
5
3
10
6
11
13
(000135)
CAUTION
Engine damage. Verify proper type and quantity of
engine oil prior to starting engine. Failure to do so
could result in engine damage.
000115
