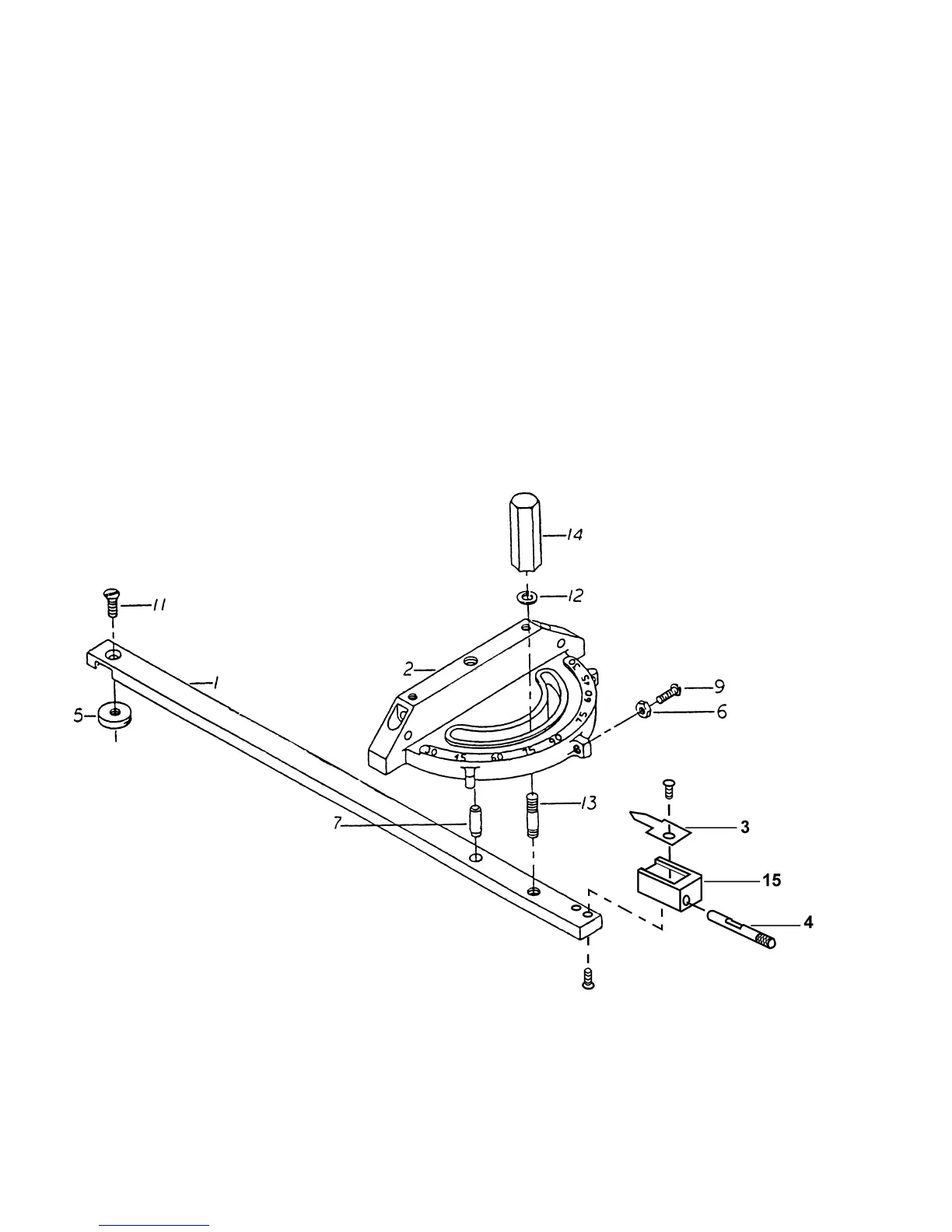

PARTS LIST: Mitre Gauge Assembly 2471015

No. Part No. Description Quantity

2471015 Mitre Gauge Assembly (Items 1 thru 15) .................................................................1

1 3044053 Mitre Gauge Bar......................................................................................................1

2 3230038 Mitre Gauge ............................................................................................................1

3 3604035 Mitre Gauge Pointer ................................................................................................1

4 3585221 Stop Pin ..................................................................................................................1

5 3841202 Mitre Gauge Bar Washer ........................................................................................1

6 6506001 Hex Nut, 6-32..........................................................................................................3

7 6623012 Dowel Pin, 1/4 X 1...................................................................................................1

9 6706015 Fillister Head Machine Screw, 6-32 X 5/8 ................................................................3

11 6714053 Flat Head Cap Screw, 1/4-20 X 3/8 ..........................................................................1

12 6861101 Plain Flat Washer, 1/4 ............................................................................................1

13 3695221 Locking Screw, 1/4 X 3-3/8 ......................................................................................1

14 3268050 Mitre Gauge Handle Knob .......................................................................................1

15 3055435 Pointer Block ..........................................................................................................1
