Connections
11 : 1.Grounding
The amplier module is intended to be assembled in a
End Product.
In the End Product, the metal plate of the amplier module
shall be mechanically xed and electrically connected to
conductive parts connected to protective earth – PE.
The main PE connector of the End Product shall be
connected rst to the chassis, or the accessible conductive
enclosure parts, with suitable measures according the
standard and applicable national deviations.
11 : 2.Bill of connectors
CODE NAME TYPE
PL1001 Input connector IDC socket 34 pin
PL1000 Output connector JST B4P-VH
PL1 AC Mains JST B3P-VH
PL2 FAN Molex 22-27-2031
Loudspeaker wires housing: JST VHR-4N (not provided)
Power wires housing: JST VHR-3N (not provided)
1
Channel 1
IN 1+
IN 1–
IN 2–
IN 2+
Bridge mode
Two channels mode
AC MAINS GND
PL1
PL2
PL1001
Audio OUT
PL1000
Audio OUT
PL1000
L
N
Channel 2
234
1234

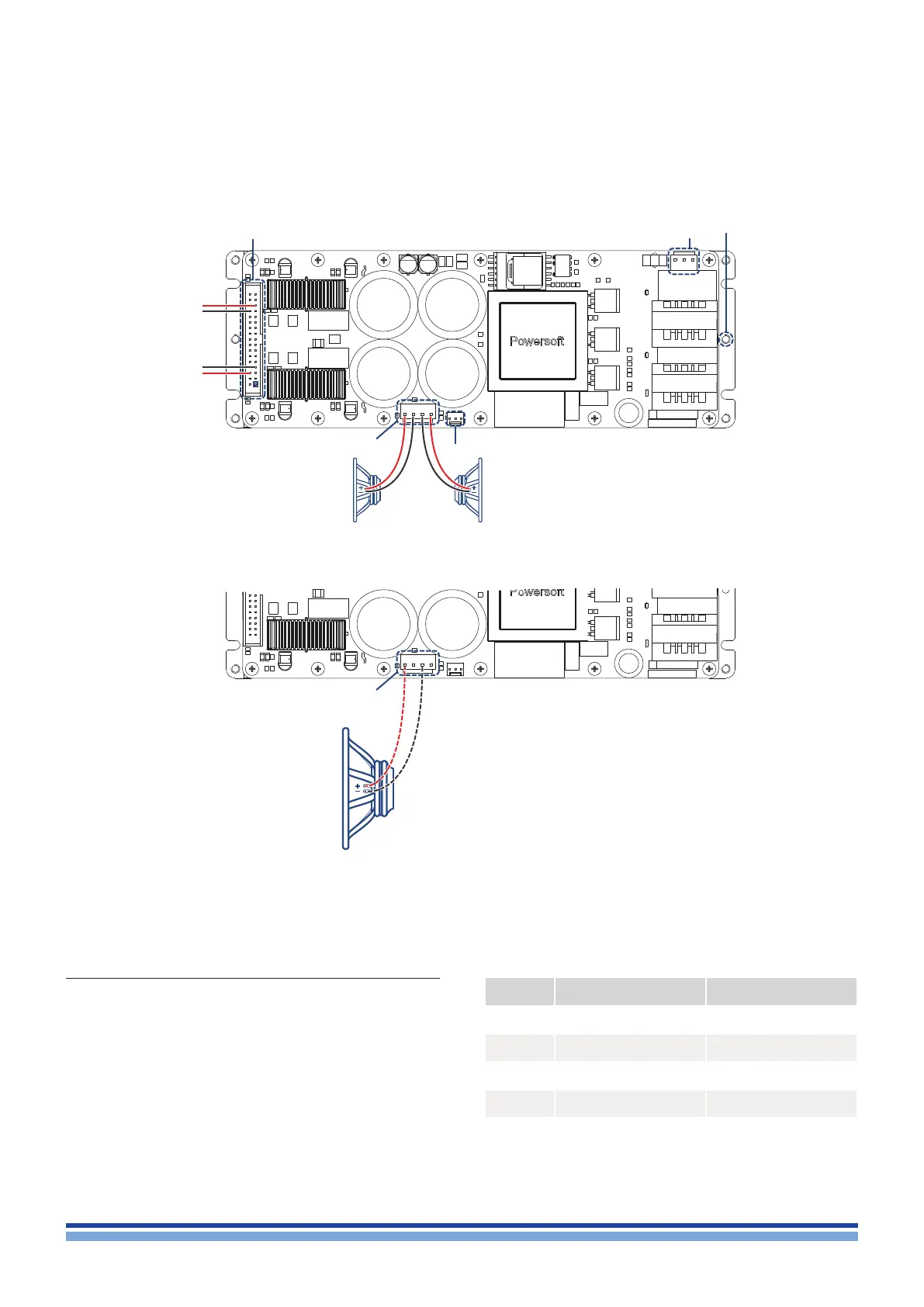

FIGURE 7: LiteMod and LiteMod HV connections.
