powersoft M Series Service Manual

INDEX
21
M SERIES | SERVICE MANUAL

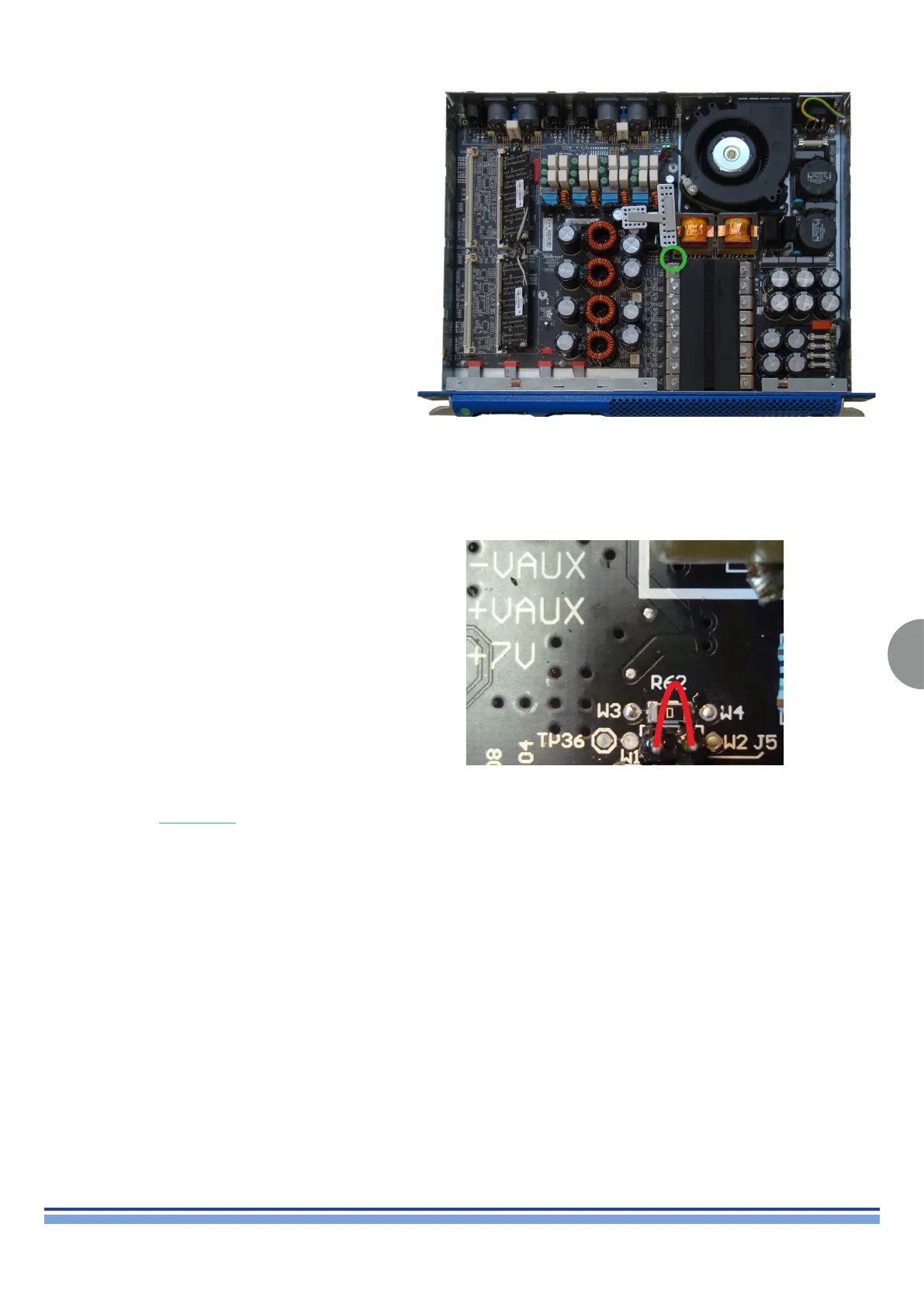

Highlighted in (Fig. 45) is the position of the J5 connector.
In order to check the Fan connect the amp to the Mains
and short the two poles of the J5 connector as portrayed
in (Fig. 46).
(Fig. 45)
(Fig. 46)
if the fan does not spin after shorting the J5 connector
please ask for the KT000894.R KIT.
