M SERIES | SERVICE MANUAL

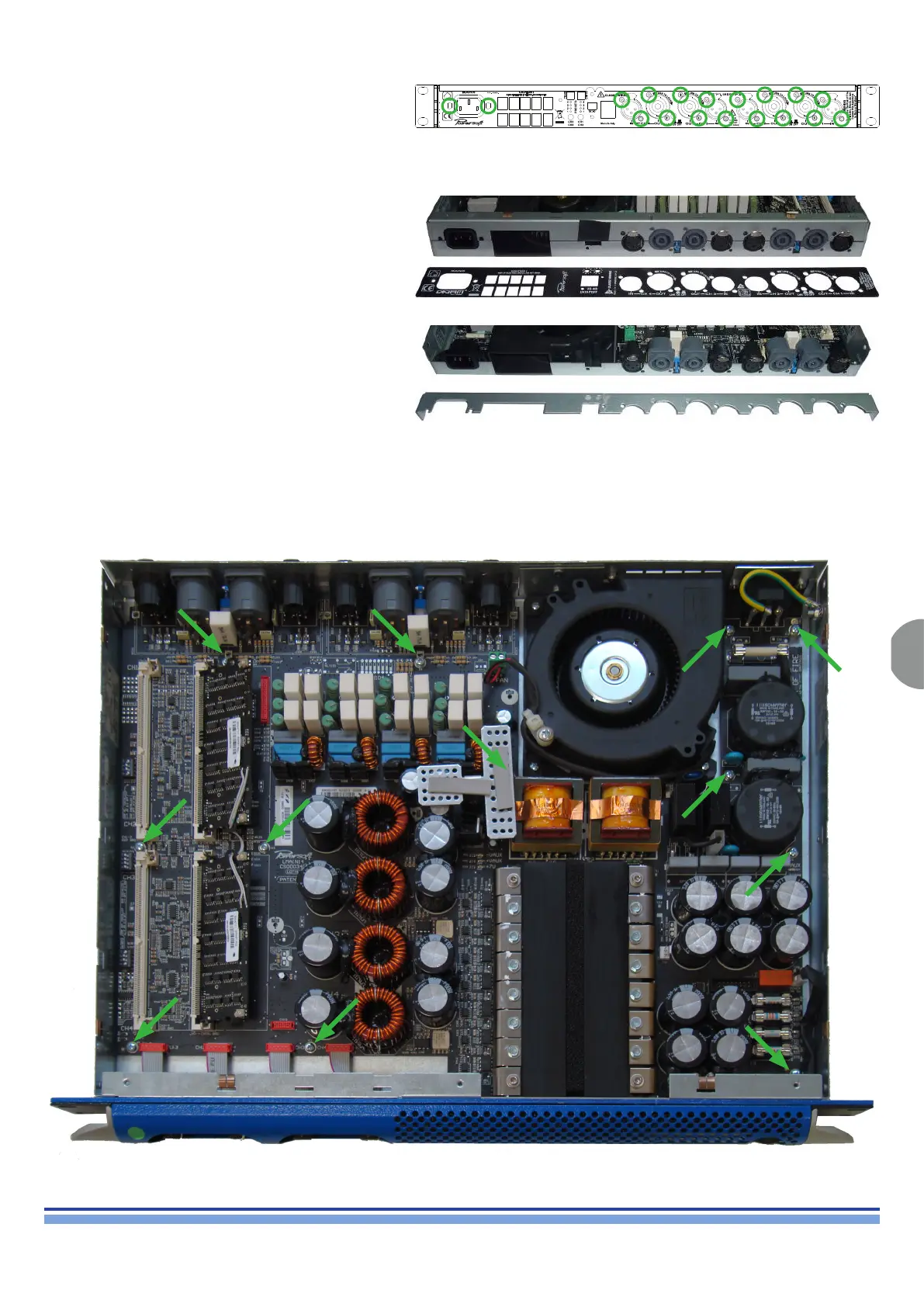

Remove the rear panel by unscrewing the screws
highlighted in (Fig. 12)
Once the rear panel is removed, lift the top metal frame
as portrayed in (Fig. 13)
The following picture (Fig. 14) portrays the location of all 12 screws that need to be removed in order to free the board from the main
chassis.
(Fig. 12)
(Fig. 13)
(Fig. 14)
