powersoft M28Q Service Manual

INDEX
5
M SERIES | SERVICE MANUAL
Disconnect the amplier from the mains. If the amplier
has been connected to the mains in the last few minutes,
please proceed with attention as the internal capacitors
bank could be charged and harmful!
2. Opening the amplifier cover:
Remove the side support steel bars by unscrewing the
four bigger screws with a Phillips PH1 screwdriver. Then
remove the screw in the centre using a smaller Phillips
PH 0 screwdriver as portrayed in (Fig. 1).

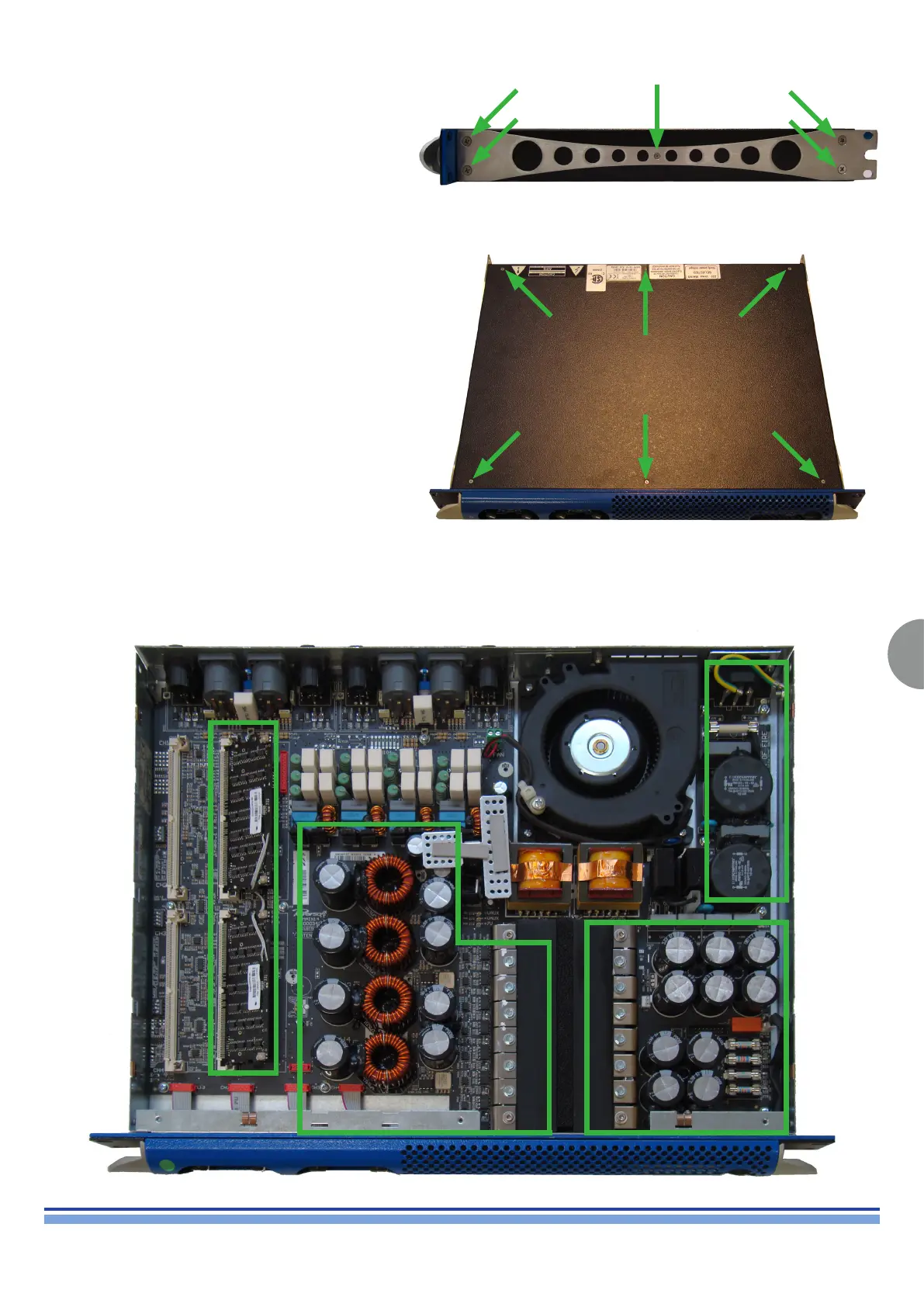

(Fig. 1)
Remove the amplier’s cover by unscrewing the 6 screws
highlighted in (Fig. 2).
(Fig. 2)
PSU SectionPSU Section
AMP SectionAMP Section
CNTRL BoardCNTRL Board
Mains FilterMains Filter
