powersoft M30D HDSP+ETH Service Manual

INDEX
24
M SERIES | SERVICE MANUAL

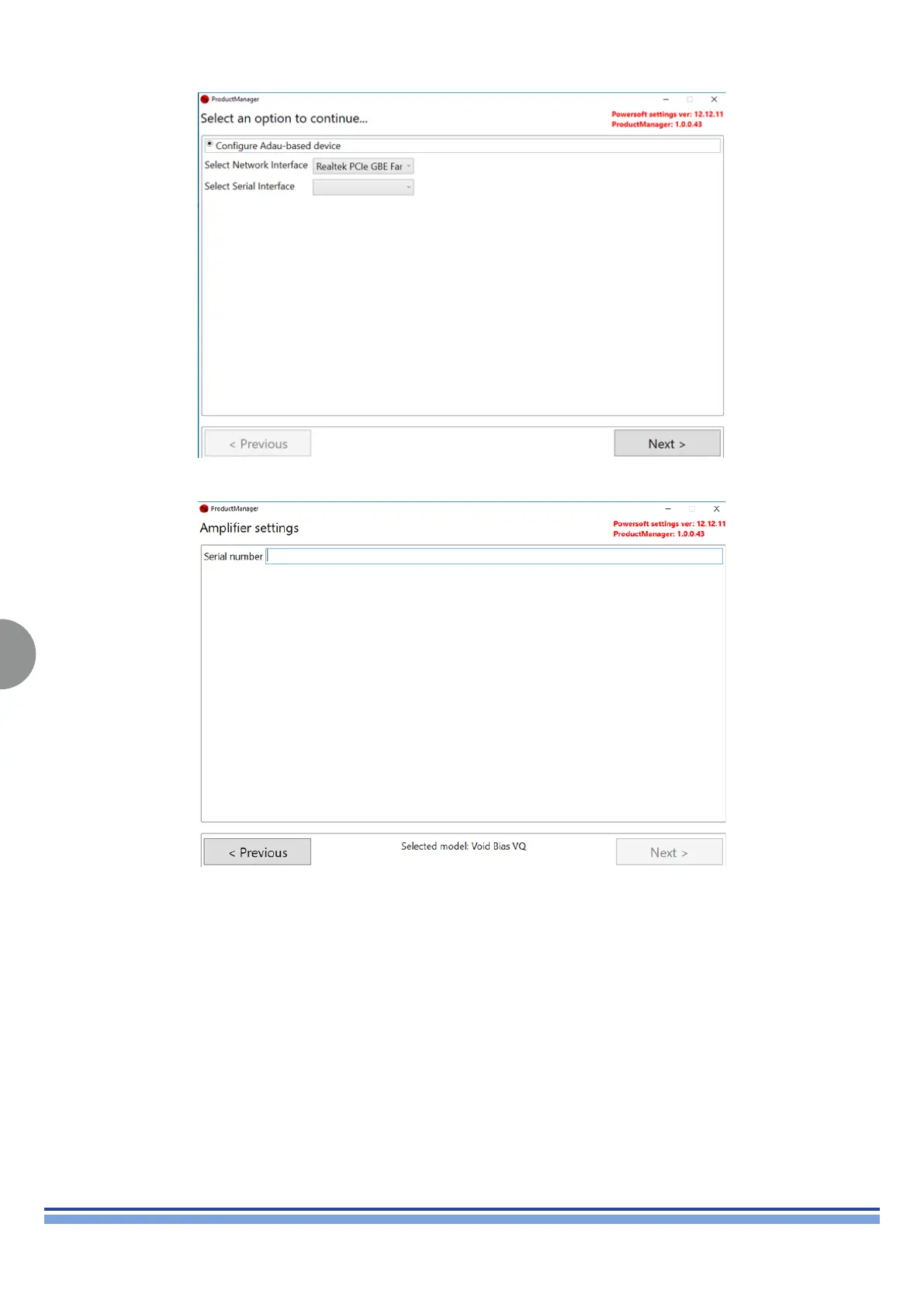

5. The following window will be shown. Select the correct network interface and click on “Next”
6. The following window will be shown. Enter the Serial number and click on “Next” to start the procedure.
7. Check if led on the ethernet port of the amplier start to blink. Otherwise it’s possible there is a hardware problem.
8. In case to use OEM ampliers, please install the Plugin, for example VOID Plugin on your PC.
9. Wait the end of the procedure and then connect the amplier to ArmoniaPlus to verify that it is correctly identied (model, serial
number, rmware version)
10. Verify if there is a new rmware version available on ArmoniaPlus and update the amplier

powersoft M30D HDSP+ETH Specifications

General

Brand	powersoft
Model	M30D HDSP+ETH
Category	Amplifier
Language	English
