powersoft Quattrocanali Series User Manual

L
Name Plug
INPUT Phoenix MC 1,5/12-ST-3,81 1803675
OUTPUT Phoenix PC 5/ 8-STF1-7,62 1777891
GPO/ALARM Phoenix MC 1,5/12-ST-3,81 1803675
REMOTE ON|OFF Phoenix MC 1,5/4-ST-3,81 1803594
AC MAINS IEC C19
K

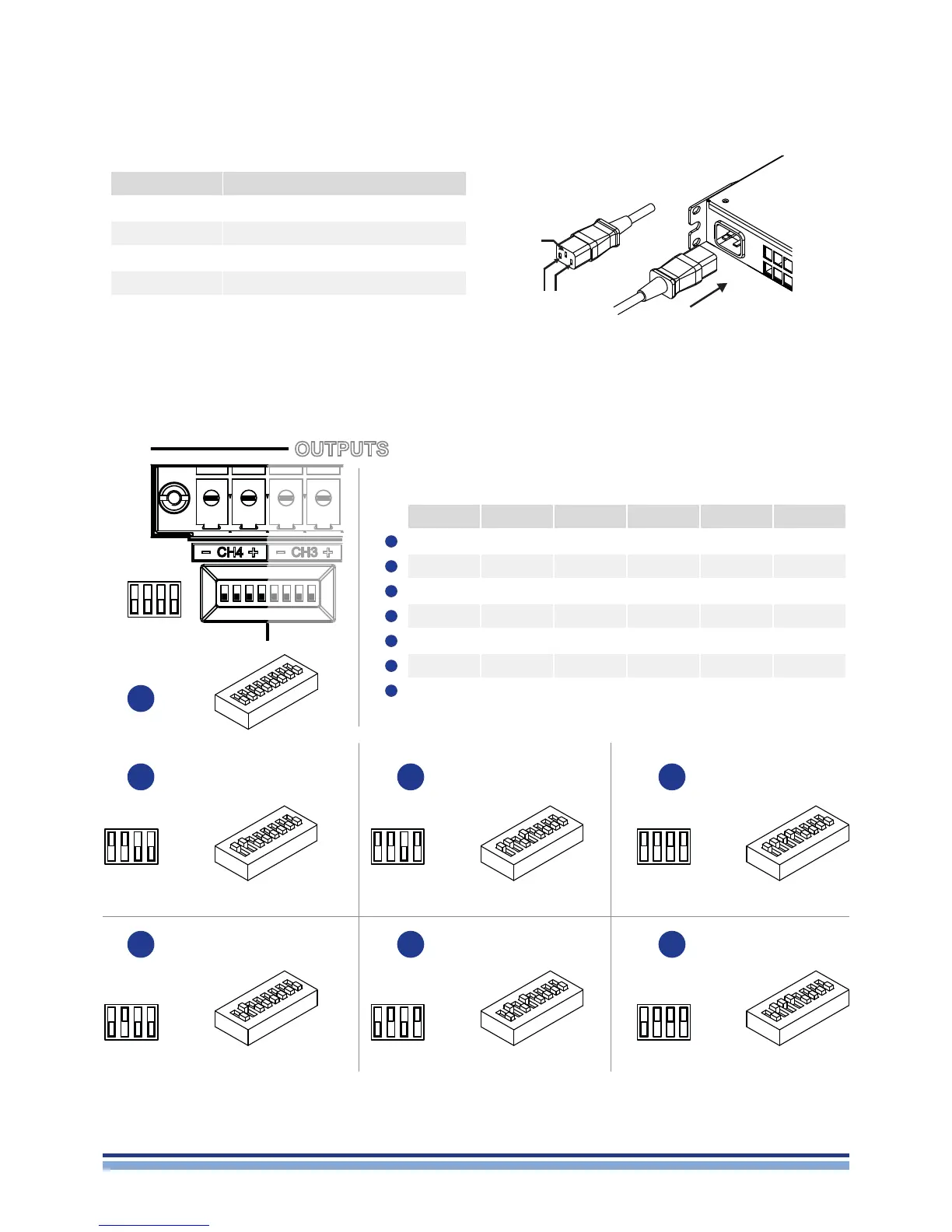

Bill of connectors
Low-Z High-Z 100V 70V HPF @ 35 Hz HPF @ 70 Hz
1
•
2
• •
3
• • •
4
• • •
5
• •
6
• • •
7
• • •
70V
lo-Z
35Hz
HPF Off
100V hi-Z 70Hz HPF On
70V
lo-Z
35Hz
HPF Off
100V hi-Z 70Hz HPF On
70V
lo-Z
35Hz
HPF Off
100V hi-Z 70Hz HPF On
70V
lo-Z
35Hz
HPF Off
100V hi-Z 70Hz HPF On
70V
lo-Z
35Hz
HPF Off
100V hi-Z 70Hz HPF On
70V
lo-Z
35Hz
HPF Off
100V hi-Z 70Hz HPF On
70V
lo-Z
35Hz
HPF Off
100V hi-Z 70Hz HPF On
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
1
2
5
3
6
4
7
ground
mains
Panels | 7

powersoft Quattrocanali Series Specifications

General

Number of Channels	4
Frequency Response	20 Hz - 20 kHz (±0.5 dB)
Input Impedance	20 kΩ balanced
Protection	DC, thermal, short circuit, overload
Remote Control	Optional
