powersoft X8 Reference

Keep this guide for future reference
©2015 Powersoft
| |

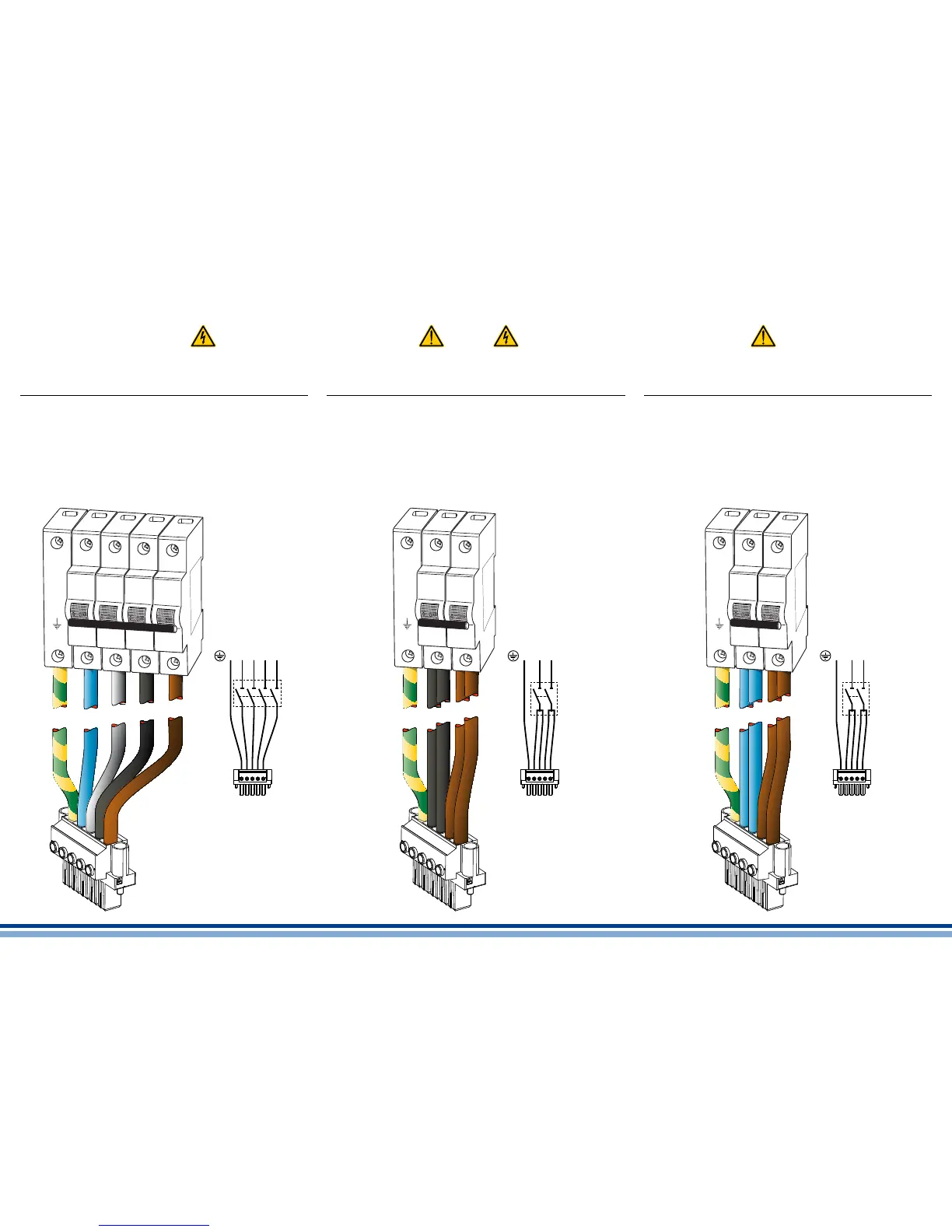

Three-phase electric power
 Five conductors: 3P+N+E
 Wye and Delta connections supported.
 Each single conductor must be secured to the PC 5/5-
STF1-7,62 ying plug as shown in the gure below.
DO000181.01 Rev. 5
This device must be powered exclusively by earth
connected mains sockets in electrical networks
compliant to the IEC 364 or similar rules.
Bi-phase electric power
 Three conductors: 2P+E
(neutral connection is not even necessary).
 Bridge the phase conductors at the connecting terminals of
the mains’ sectioning breaker
 Conductors must be secured to the PC 5/5-STF1-7,62 ying
plug as shown in the gure below.
Single-phase electric power
 Three conductors P+N+E (unbalanced single phase)
 Bridge the phase conductors at the connecting terminals
of the mains’ sectioning breaker
 Conductors must be secured to the PC 5/5-STF1-7,62
ying plug as shown in the gure below.
AC mains connections must be performed
only by professional or qualified personnel
according to local electrical authoritie guidelines
L1
L2
PE
L1L2PE
L
N
PE
LNPE
L1
L2
L3
L3 L2 L1
N
N
PE
PE

powersoft X8 Specifications

General

Channels	8
Signal to Noise Ratio	> 112 dB
Damping Factor	> 5000
Power Supply	Universal switching power supply (100-240V, 50/60Hz)
Networking	Ethernet
DSP	Yes, with FIR filters
Load Impedance	4Ω, 8Ω
Input Impedance	20 kΩ balanced
Cooling System	Variable speed fan
Frequency Response	5 Hz - 30 kHz
