SMPS 13.6V MODE (13.6V 5A):
This mode is adaptor, it can be used to as a 13.6V 5.0A DC power supply, and
it can be used to float charging for 12V battery also.
Long press 3sec. the MODE selection button at no battery connected status

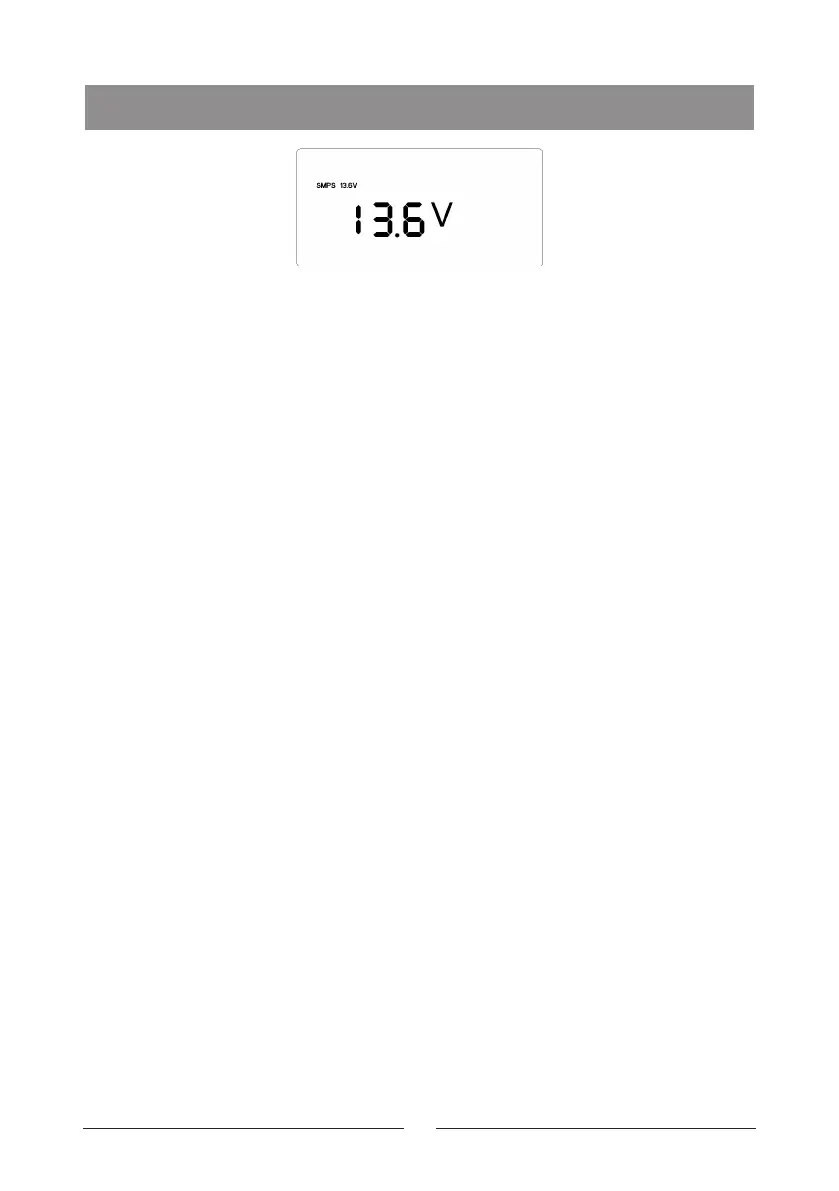

after doing so, the corresponding LCD display SMPS 13.6V lights up.
Then if you do not take any further action, the electronic system will
automatically start the power supply output process as adaptor function
together with the LCD display the output is 13.6V DC 5.0A.
NOTE: DO NOT short-circuit the output terminals after the MODE SMPS
13.6V has started.
