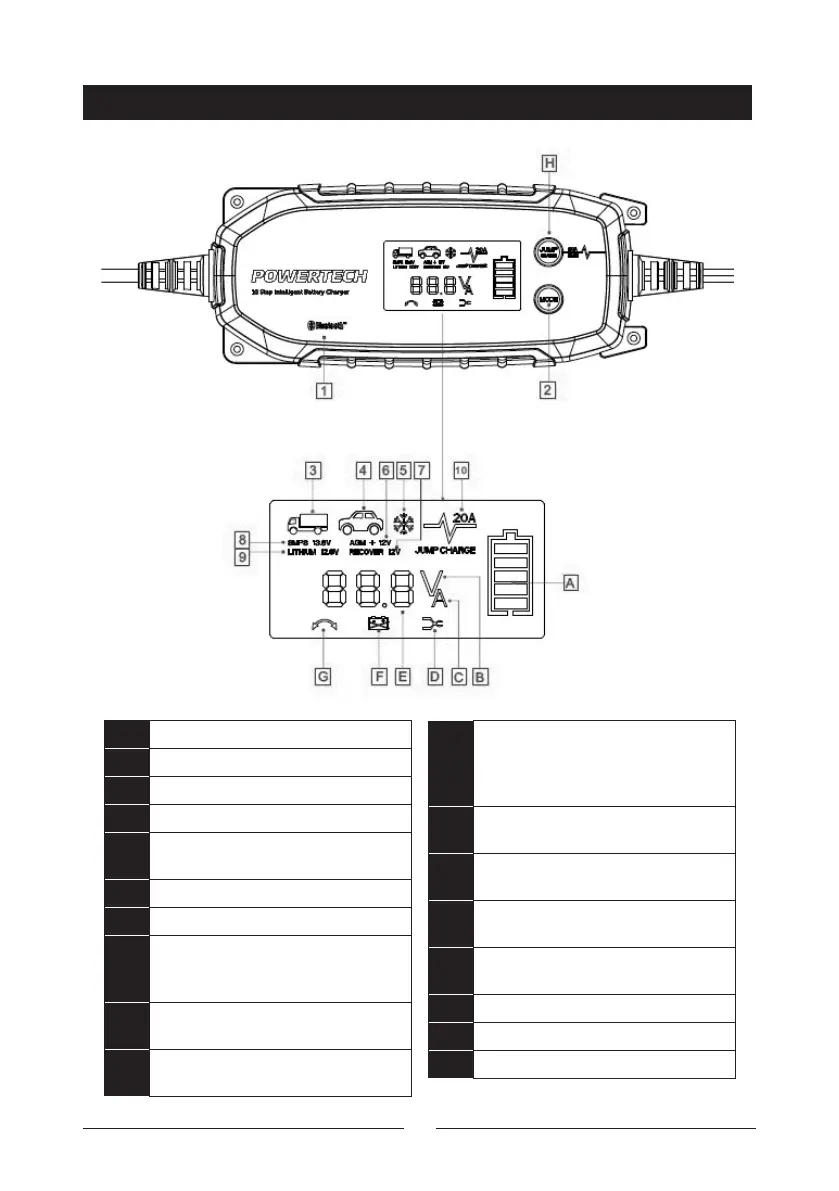

PART DESCRIPTION:
1 Bluetooth Logo
2 MODE selction button
3 Mode 1 (24V/7.5A)
4 Mode 2 (12V/15A)
5 Mode 3
(12V or 24V cool situation)
6 Mode 4 AGM + 12V (12V/15A)
7 Mode 5 RECOVER 12V (12V/15A)
8 Mode 6 SMPS 13.6V
(Switch Mode Power Supply
13.6V/5.0A)
9 Mode 7 LITHIUM 12.8V
(12.8V 4-cells LiFePO4/15A)
10 Mode 8 JUMP CHARGE
(12V/20A)
A Charging battery level:
1 bar (20%), 2 bars (40%), 3 bars
(60%), 4 bars (80%), 5 bars (90%),
Stops flashing fully charged.
B VOLT: The current voltage of
connected battery
C AMP: The charging current when
mode is selected
D If flashing:
“Battery is not connected“
E Numbers: Shows value of the
current and voltage.
F If flashing: “Battery Fault”
G If flashing: “Incorrect Polarity“
H JUMP CHARGE Button (12V/20A)
