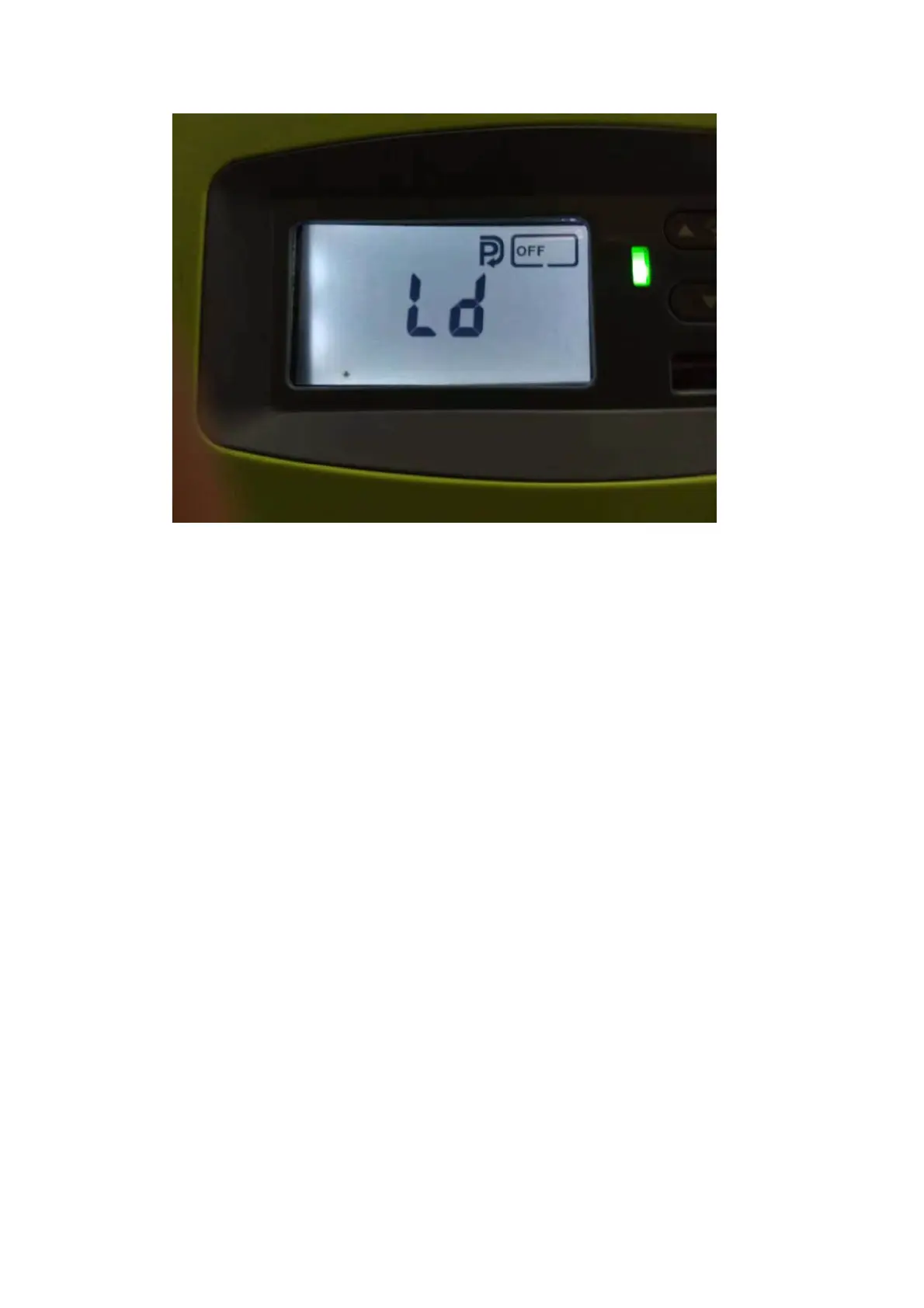

The figure above shows the Ld load mode seng. When the PV is less than 11V,
the clock 1 is turned on, the clock 2 is the off load me, and then the load is
turned on unl the PV is greater than the 11V off load.
The “TO”, “LO” and “Ld” load mode seng menoned above refers to the DC
output, excluding the sengs for the USB output. USB is automacally turned on
and automacally turns off when undervoltage.
