INSTRUCTIONS PW150/PW200
15
2. Electric Latch:
(If the gate is opened outward)
1). If the gate is opened outward, please change the spring inside and screw it in the different place.

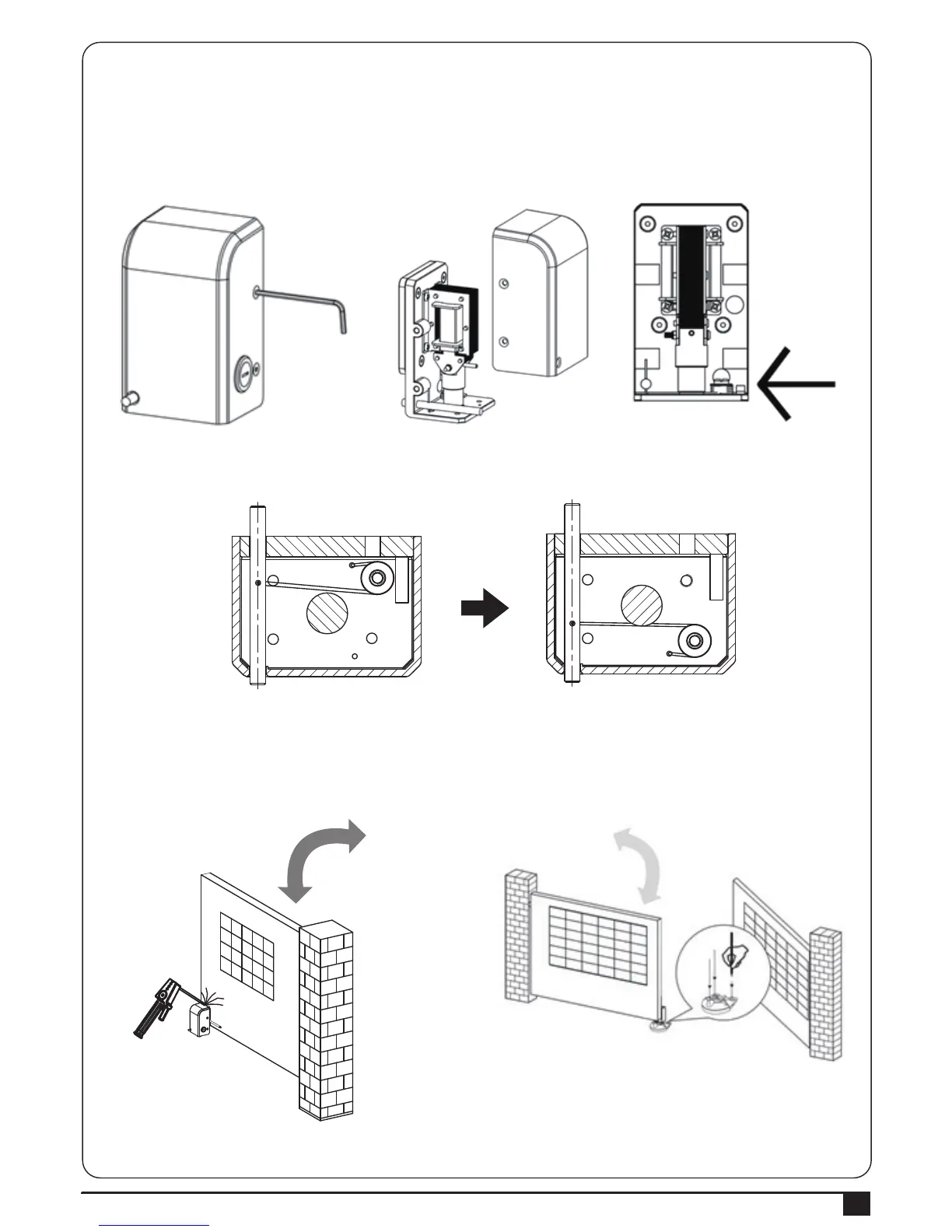

See Figure 3.3.7 (4), Figure 3.3.7 (5), Figure 3.3.7 (6) & Figure 3.3.7 (7)
2). Weld the back plate of the electric latch to the surface on the master gate. See Figure 3.3.7 (8).
Please avoid melting the wires by the heat of the fixed plate.
Figure3.3.7(4) Unscrew the screws.
Figure3.3.7(7)
Change the spring and screw it in the different place.
Figure3.3.7(8) For the gate opened inward. Figure3.3.7(9) For the gate opened Outward.
(Installation)
Figure3.3.7(5) Take the casing off.
Figure3.3.7(6)
The location of the spring.
To Next Page
