INSTRUCTIONS PW150/PW200
7
Check the following items before going for installation:

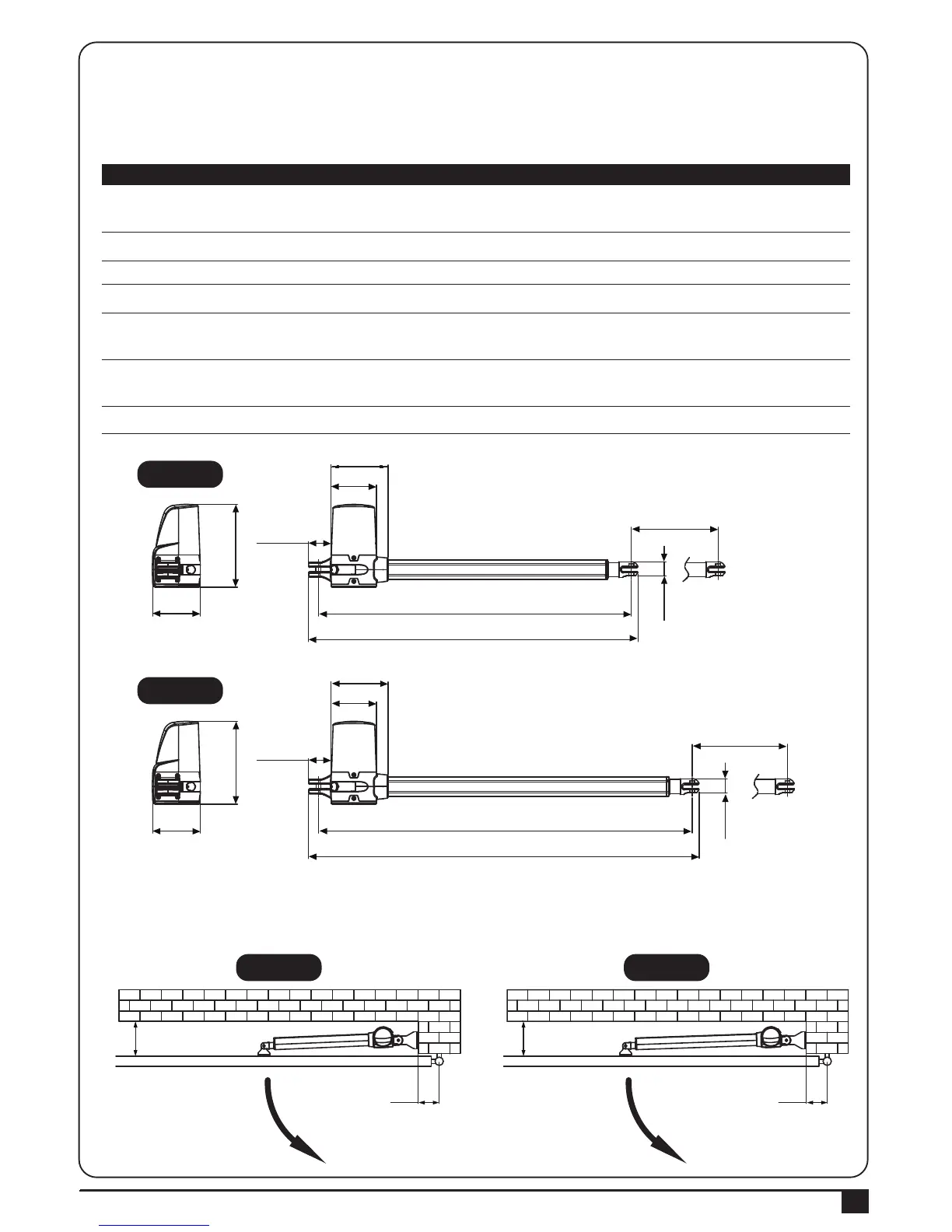

Figure 13
Figure 14
3.3.1 Preparation for Motor Installation
3.3 Installation
PW150/PW200 is not applicable to a gate which is inefficient or unsafe, neither to solve the defects due to incorrect
installation nor poor maintenance.
1). Make sure the weight and dimensions of the gate conform to the operation range of PW150/PW200. Don’t use
PW150/PW200 if the gate specifications do not meet the requirements.
2). Make sure the gate structure conform to the criteria of automatic operation and force regulations.
3). Make sure there is no serious friction existing in the opening or closing travel of the gate leaves.
4). Make sure the gate is at horizontal level that the gate will not move aside at any position.
5). Make sure the gate can bear the impact of the motor torque when it is installed on any hole of the bracket which
the surface is sufficiently sturdy.
6). Make sure the photo sensors are installed on flat surfaces to ensure the two ends of receiving and transmitting
corresponded to each other.
7). Check the dimensions of the motors as below.
8). Make sure to leave enough space when the gate is opening.
98mm
170mm
46mm
117mm
93mm
640mm
360mm
29mm
674mm
98mm
46mm
117mm
93mm
170mm
765mm
400mm
799mm
29mm
Min
150mm
MAX
120mm
Min
150mm
MAX
150mm
PW150
PW150
PW200
PW200
