INSTRUCTIONS PW150/PW200
5
3*20 Screw 3 pcs
Nylon screw anchor 3 pcs
Table 2: List of small parts for PF-1 Quantity
3*20 Screw 3 pcs
Nylon screw anchor 3 pcs
Table 4: List of small parts for PPB-1 Quantity
3*20 Screw 3 pcs
Nylon screw anchor 3 pcs
Keys 2 pcs
Table 3: List of small parts for PKS-1 Quantity

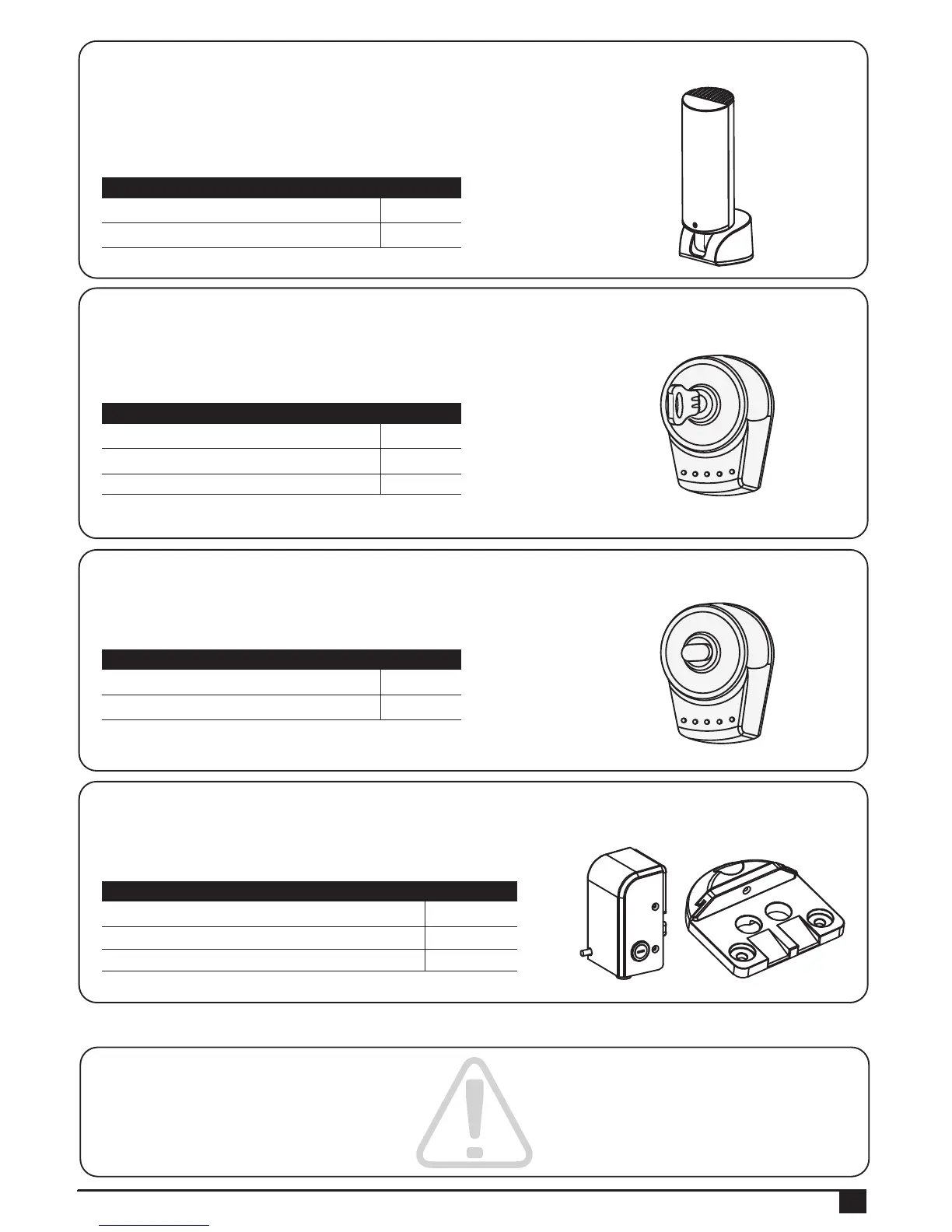

Figure 7
Figure 8
Figure 9
2.3.5 PF-1 Flashing Light
PF-1 flashing light is controlled by control box and blinks
when the gate is moving. The flashing light stops
blinking when the gates finish opening or closing.
2.3.6 PKS-1 Key selector
The PKS-1 key selector is used for opening the gate
outdoors without the radio transmitter. PKS-1 key
selector is supplied with two keys
2.3.7 PPB-1 Push Button
The PPB-1 push button is used for opening the gate
indoors without the radio transmitter.
3.1 Notes of Motors in Operation
The PW150/PW200 gate openers are applicable to per leaf of 2/2.5 meters in width and 150/200 kg in weight which
can be opened up to 110 degrees primarily for residential use; where the performance shall be influenced by the
factors such as gate dimension, weight and climate that the driven torque is necessarily to be adjusted properly.
3) Installation:
M8*25L hex bolt 3 pcs
M8 self-locking nut 3 pcs
Key 2 pcs
Table 6: List of small parts for PEL-1 and PS-1 Quantity
Figure 10
2.3.8 PEL-1 Electric Latch and PS-1 Stopper
PEL-1 electric latch is used to lock the gate and it has to be used
with PS-1 stopper and installed on the master gate.
