16 INSTRUCTIONS PW220/PW230
Figure 2.3.6 (4)
Figure 2.3.6 (5)

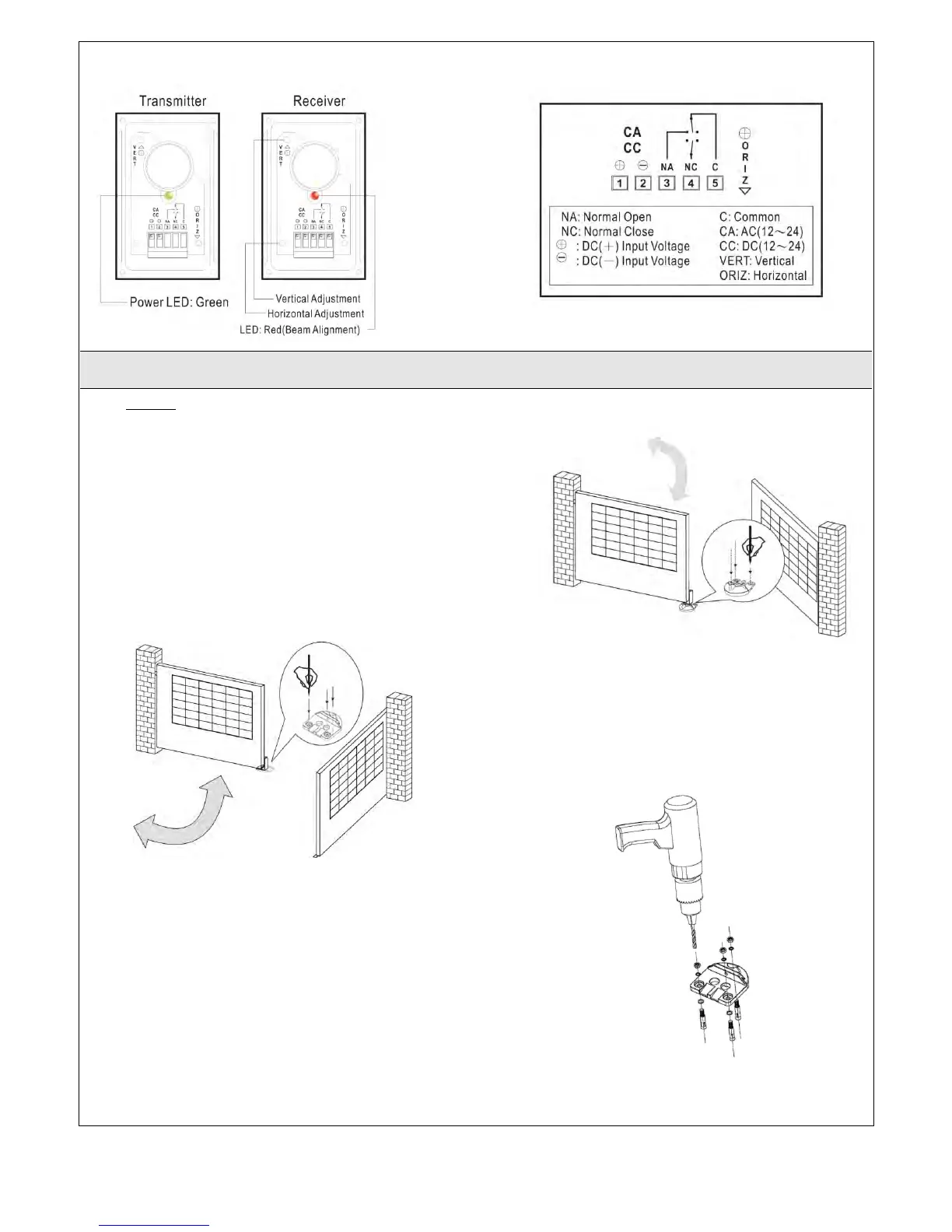

2.3.7 PEL-1 Electric Latch and PS-1 Stopper
1. Stopper:
1) Before installing the stopper, please make sure the gates are
in close positions and the surface to be installed is flat.
2) Place the stopper on the ground using the bottom as
reference, and mark the 3 drilling points.
See Figure 2.3.7 (1) For the gate opened inward.
See Figure 2.3.7 (2) For the gate opened outward.
Figure 2.3.7(1)
Note: If the gate is opened outward, place the stopper in
opposite direction.
Figure 2.3.7(2)
3) Drill the 3 marked points, and then securely attach the
stopper to the ground with screws and washers.
See Figure 2.3.7 (3)
Figure 2.3.7(3)
