INSTRUCTIONS PW220/PW230 3
1 Product Description
1.1 Applications
PW220/PW230 is applied for residential automation of single or dual leaf gate. PW220/PW230 has to be operated with electricity and it’s
forbidden to be operated by back-up batteries for normal use. Back-up batteries are only allowed for emergent operation when there is a
power failure, and the gear motors can be released by special keys to move the gate manually.
1.2 Description of the Automation

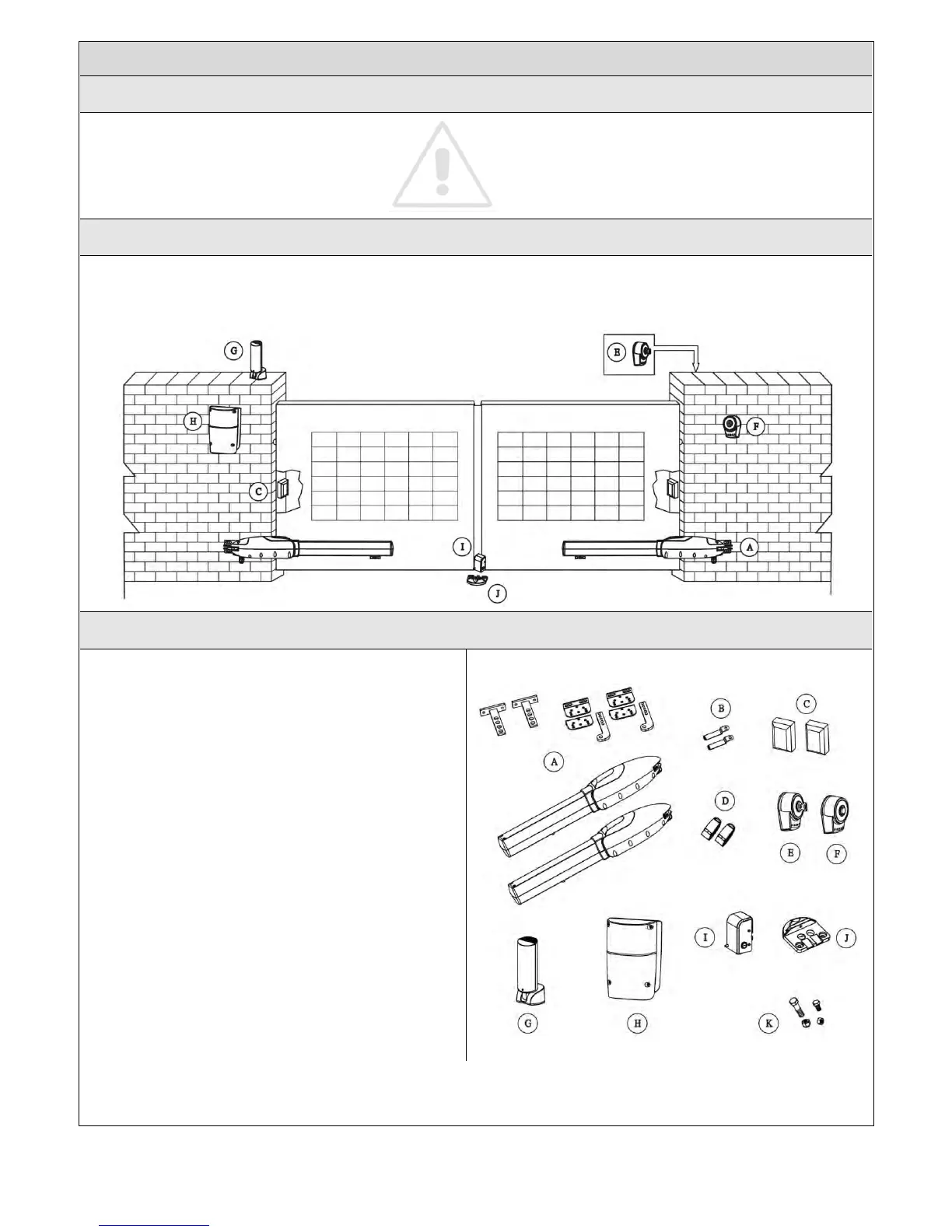

The following diagram of PW220/PW230 typical installation describes some terms and accessories of a gate automation system:
Figure 1
1.3 Description of Devices
PW220/PW230 includes the accessories shown in Figure 2.
Please check the accessories the same as the package provided.
Attention: Some accessories of PW220/PW230 are not
included due to local regulations or customized order.
A) 2 PW220/PW230 electromechanical gear motors with
mounting brackets.
B) 2 release keys.
C) 1 pair of PH-1photocells.(one TX and one RX)
D) 2 PR-1 radio transmitters.
E) 1 PKS-1 key selector with two keys.
F) 1 PPB-1 push button switch.
G) 1 PF-1 flashing light.
H) 1 PC160 control box
I) 1 PEL-1 electric latch.
J) 1 PS-1 stopper.
K) Various small parts: bolts, nuts, etc.
See Tables 1, 2, 3, 4, 5, 6.
Figure 2
