LX Range Users, Installation & Servicing Instructions Doc Ref M110 issue 1.0 Dec 2020.

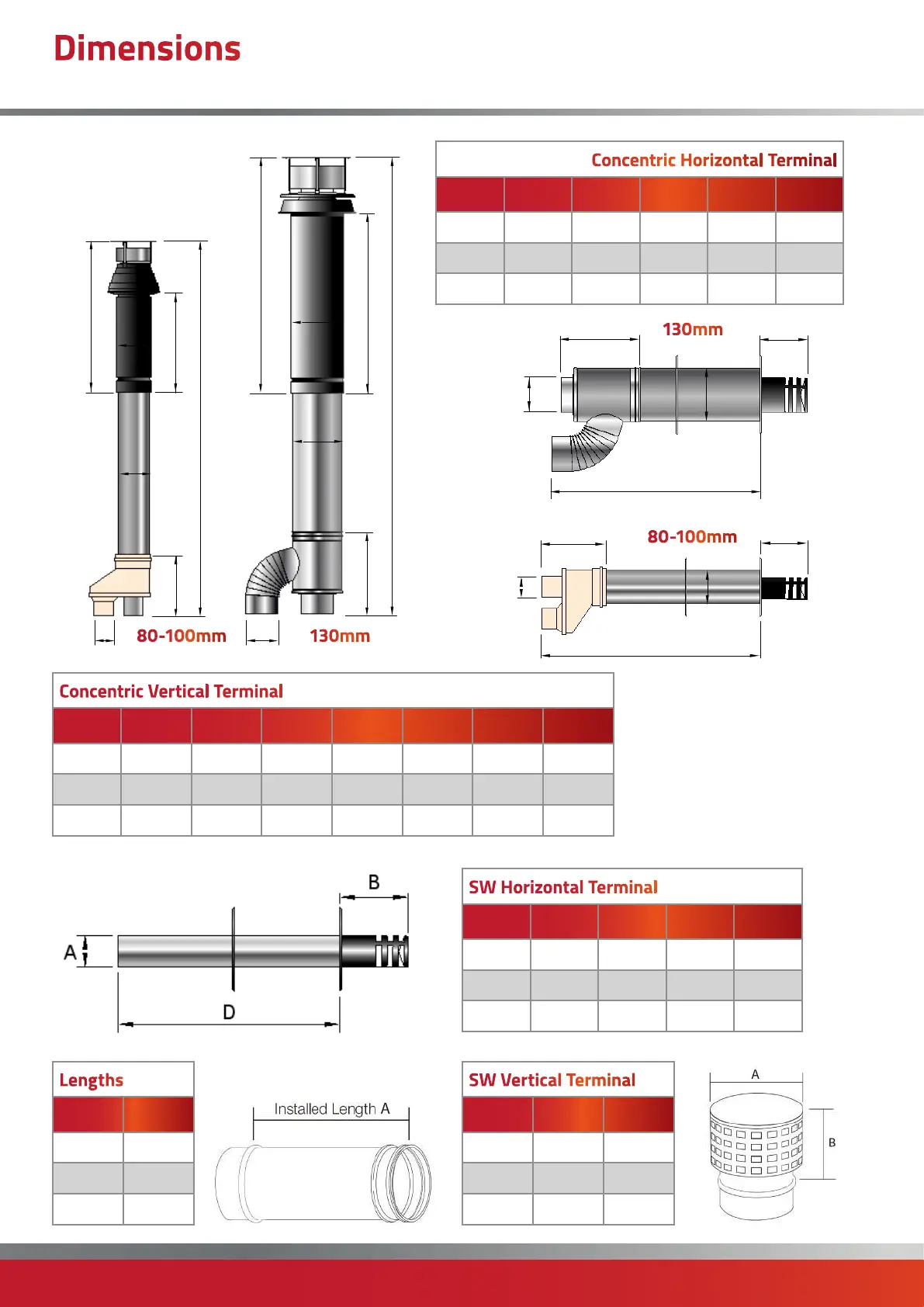

Dimensions
Flue and Flue Components
C
A
C
B
D
B
D
E
A
E
B
D
A
Concentric Vertical Terminal
Size A mm B mm B1mm C mm D mm E mm E1 mm
80 80 605 400 153 1395 125 140
100 100 550 300 198 1515 150 170
130 130 955 730 335 1850 200 220
80-100mm 130mm
80-100mm
Concentric Horizontal Terminal
Size A mm B mm C mm D mm E mm
80 80 180 153 710 125
100 100 180 198 710 150
130 130 190 335 747 200
Lengths
Size A mm
1000 974
500 474
250 224
SW Vertical Terminal
Size A mm B mm
80 210 90
100 210 90
130 235 115
SW Horizontal Terminal
Size A mm B mm D mm E mm
80 80 180 560 130
100 100 180 560 150
130 130 190 420 200
130mm
B
C
C
D
E
E
A
E1
E1
B1
B
B1
D
A
