90° Elbow
Size A mm B mm
80 155 105
100 160 110
130 175 125
45° Elbow
Size A mm B mm
80 62 102
100 66 106
130 70 116
Dimensions

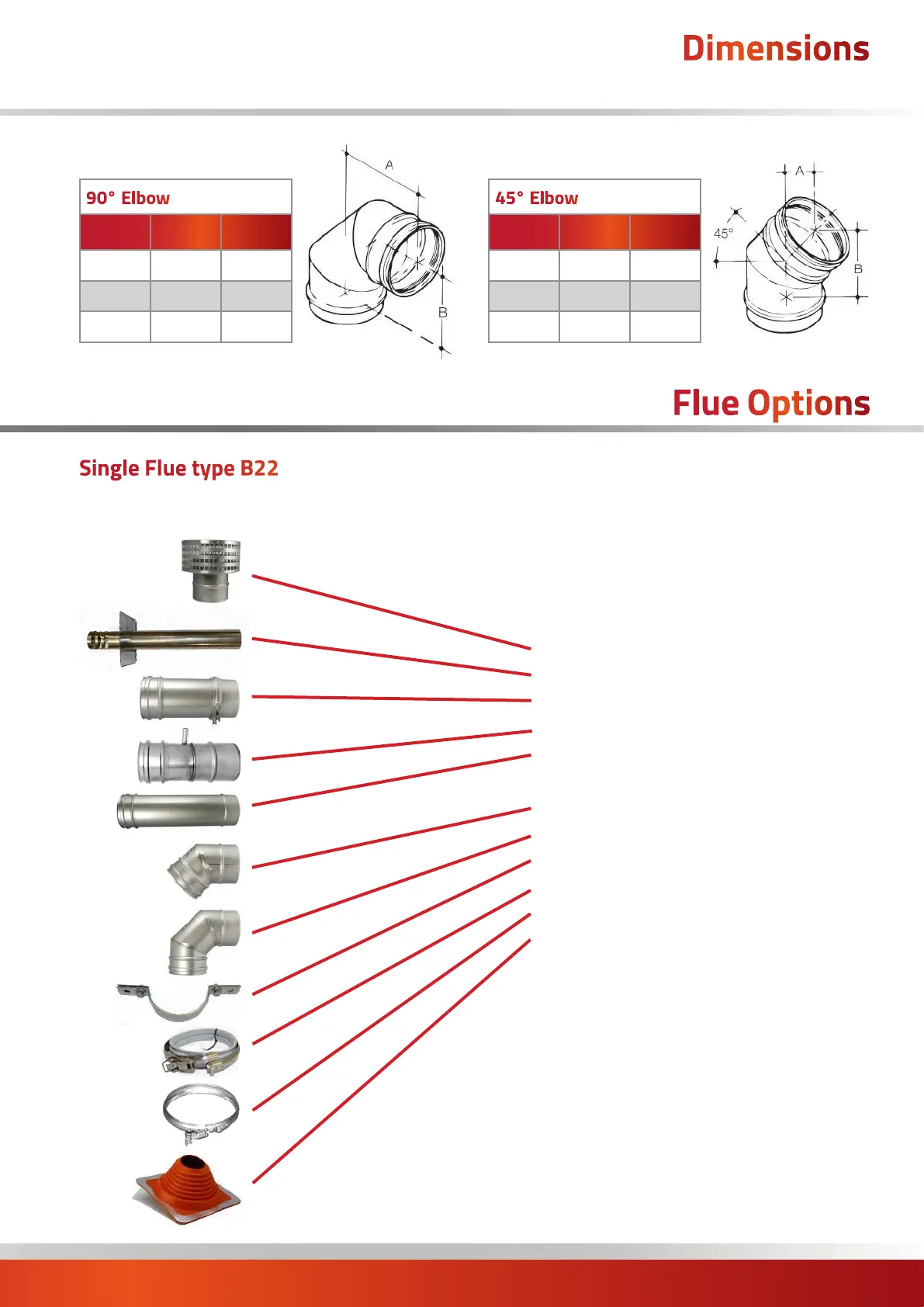

Flue and Flue Components
Flue Options
Type B22 installation - Exhaust Only system components
A Vertical terminal
or B Horizontal terminal
C Adjustable flue lengths
D In-line condense drain
E 250mm standard flue length
(Available in 250,500 & 1000mm lengths)
F 90° Bend
G 45° Bend
H Flue support bracket
I Adjustable length locking band
J Flue locking band
K Silicon flashing
Single Flue type B22
The flue system will take form of individual components.
