page no. 14 of 68
LX Range Users, Installation & Servicing Instructions Doc Ref M110 issue 1.0 Dec 2020.
A Horizontal terminal*
B Single to twin adaptor (ski boot)*
C Adjustable flue lengths x 2
D Wall securing plate*
E Fixings*
F Terminal extension length*
G 250mm standard flue lengths x 2
H Adjustable length locking bands x 3
* Supplied with terminal kit

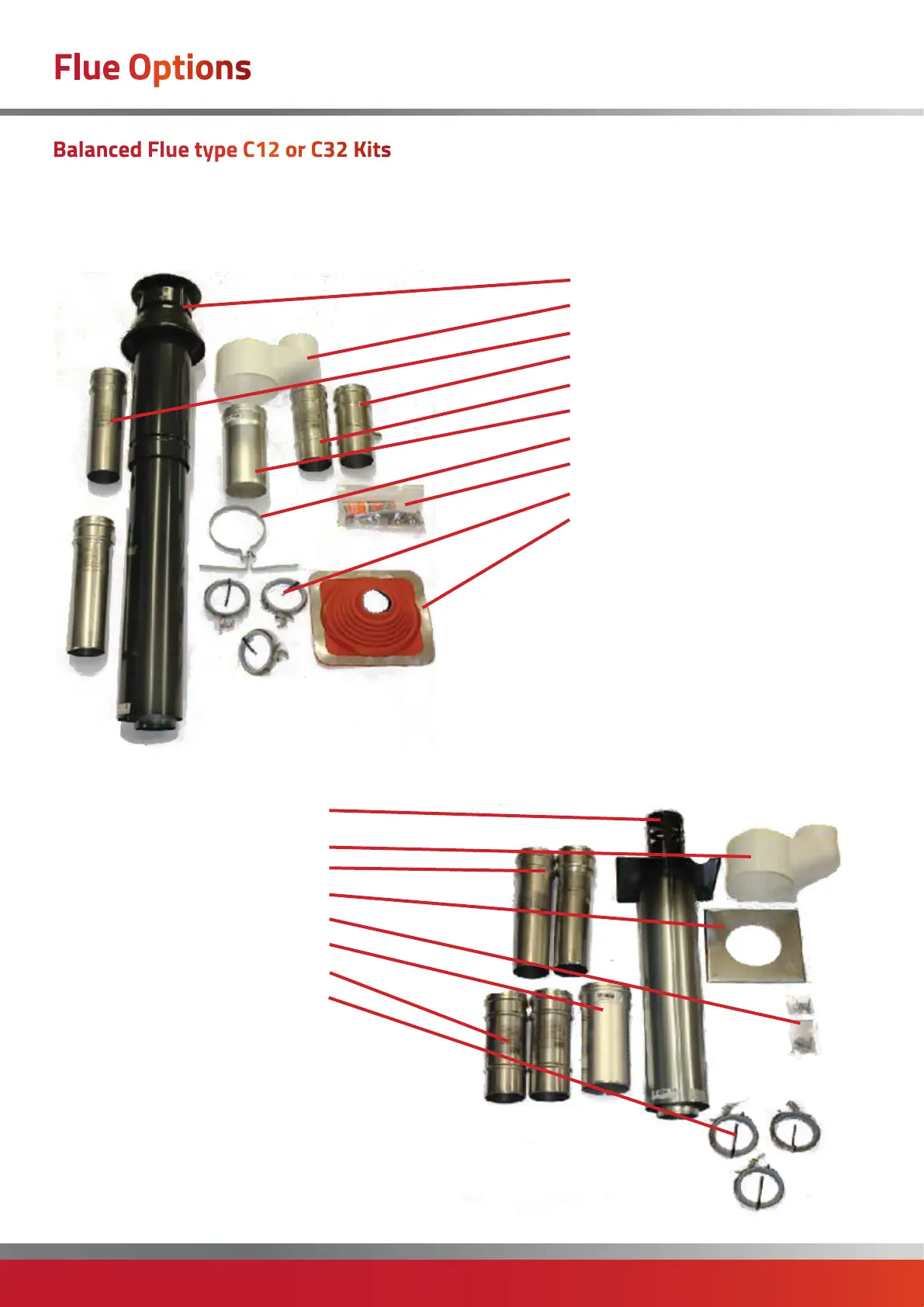

Type C12 installation - Horizontal Balanced Flue kit
Balanced Flue type C12 or C32 Kits
The flue kit will take form of the following components:
A Vertical terminal*
B Single to twin adaptor (ski boot)*
C Adjustable flue lengths x 2
D In-line condense drain
E 250mm standard flue length
F Terminal extension length*
G Flue support bracket
H Fixings and glue*
I Adjustable length locking band x 3
J Silicon flashing
* Supplied with terminal kit
Type C32 installation - Vertical Balanced Flue kit
Flue Options
