page no. 25 of 68
LX Range Users, Installation & Servicing Instructions Doc Ref M110 issue 1.0 Dec 2020.
On larger Centrifugal units, the blower assembly is
supplied loose for transportation purposes and will have to
be assembled in-situ.
The assembly is carefully offered to the rear of the heater
and fixed utilising the panel screws suppled.
Any loose electrical wiring is completed as per section 2.5

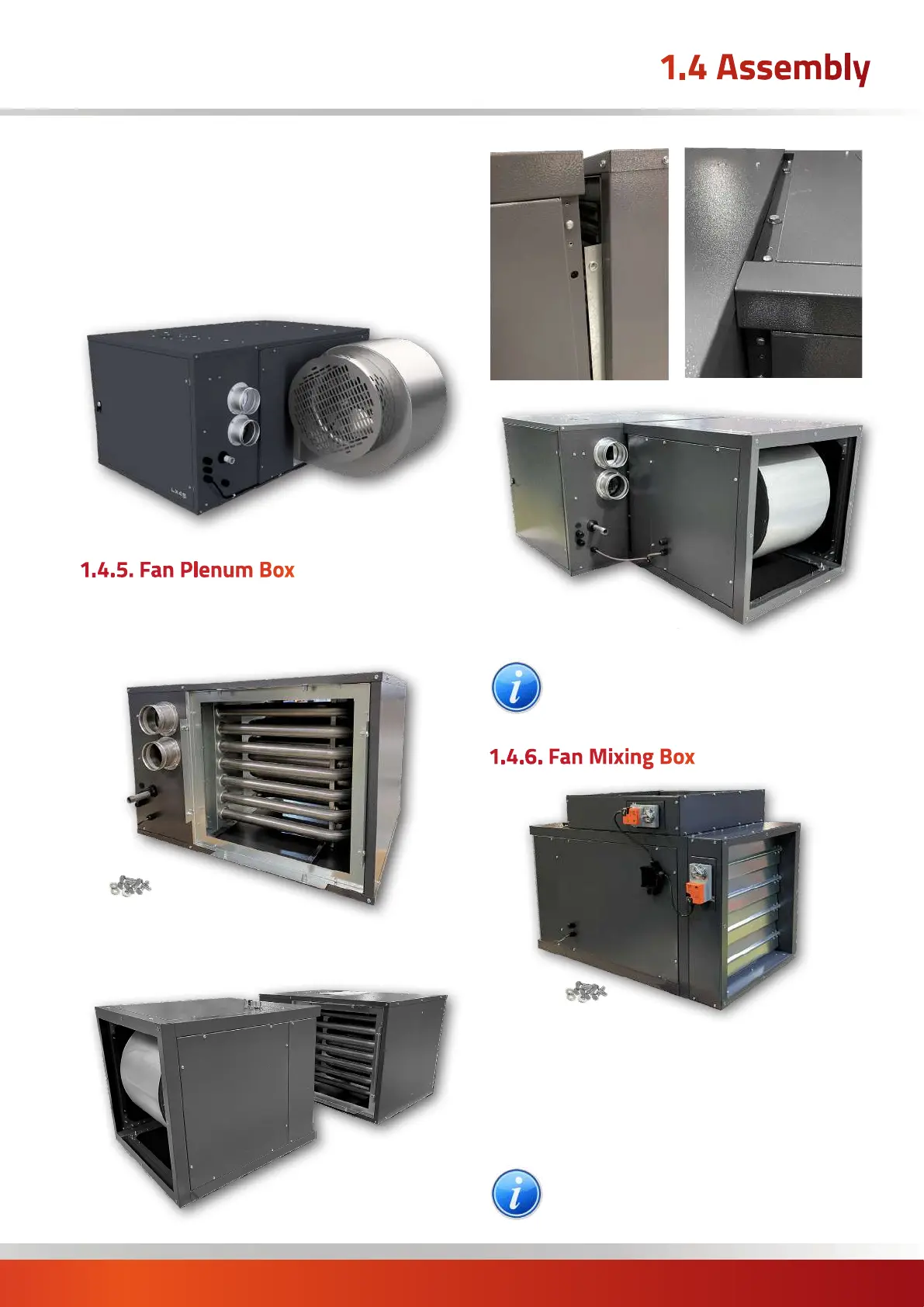

1.4.5. Fan Plenum Box
If the Fan Plenum Box is supplied loose and requires
attaching to Duct heater, then a separate flange is fixed to
the inlet side of the heater.
The Plenum Box is then carefully offered to the flange and
fixed utilising the bolts and washers suppled.
NOTE: refer to supplement TB157 for detailed
fitting instructions
1.4.6. Fan Mixing Box
a
The Fan Mixing Box will be supplied loose to the Duct
heater, a separate flange is fixed to the inlet side of the
heater.
The Mixing Box carefully offered to the flange and fixed
utilising the bolts and washers suppled.
NOTE: refer to supplement TB158 for detailed
fitting instructions
1.4 Assembly
